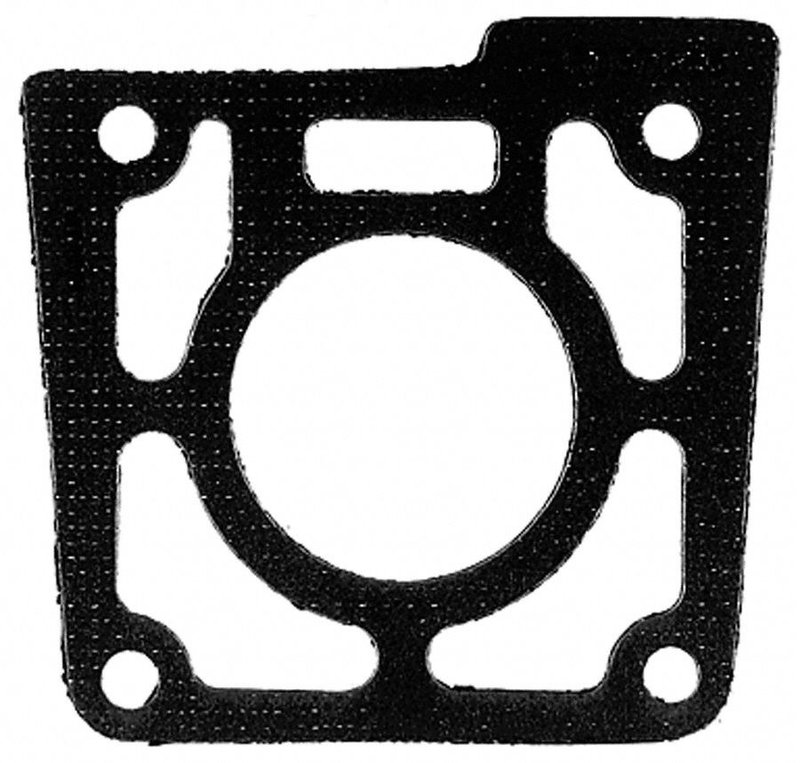

Mahle G31119 Fuel Injection Throttle Body Mounting Gasket

Fuel Injection Throttle Body Gasket

Mahle G31119 is an OEM-standard fuel injection throttle body mounting gasket for applications that require a precise seal at the throttle body and plenum interface. It uses composite gasket material and a .050-inch wall thickness to support consistent sealing on the listed Ford, Lincoln, and Mercury applications.

Key Features

• Composite throttle body gasket material for dependable sealing performance.
• OEM Standard item grade for service replacement use.
• .050-inch gasket wall thickness for a controlled sealing surface.
• 2.195-inch inside diameter for the specified throttle body bore.
• Contains the throttle body mounting gasket needed for the application.

Detailed Description

Mahle G31119 is a fuel injection throttle body mounting gasket built for EGR valve spacer to plenum service on classic Ford, Lincoln, and Mercury applications. The gasket’s 2.195-inch inside diameter and composite construction align with the specified throttle body bore, helping maintain a proper seal where intake and EGR-related components meet. This part number, G31119, is a direct service choice for owners and technicians working on Ford Thunderbird, Lincoln Town Car, and Mercury Grand Marquis applications that call for this configuration.

Mahle gaskets are used by OEMs and technicians worldwide for sealing applications that require consistent fit and material integrity. If you are replacing a worn throttle body gasket on a Ford Thunderbird or similar application, G31119 provides an OEM-standard sealing solution with the dimensions called out for the listed fitments. This part cross-references FEL-PRO (e.g., 72540, 72541) for the same application.

What It Helps Address

• Air leaks at the throttle body mounting surface.
• Vacuum loss at the EGR valve spacer to plenum interface.
• Rough idle caused by a compromised intake seal.
• Driveability issues related to deteriorated gasket material.
• Service replacement needs on aging Ford, Lincoln, and Mercury intake components.

Installation Notes and Tips

Verify the throttle body bore and gasket interface before installation. Clean both mating surfaces thoroughly and inspect for warpage, carbon buildup, or residue that could affect sealing. Confirm the application notes for the exact EGR valve spacer to plenum configuration before ordering.

Quality Assurance

Mahle gaskets are trusted by OEMs and technicians around the globe for sealing applications that demand consistent performance and fit.
