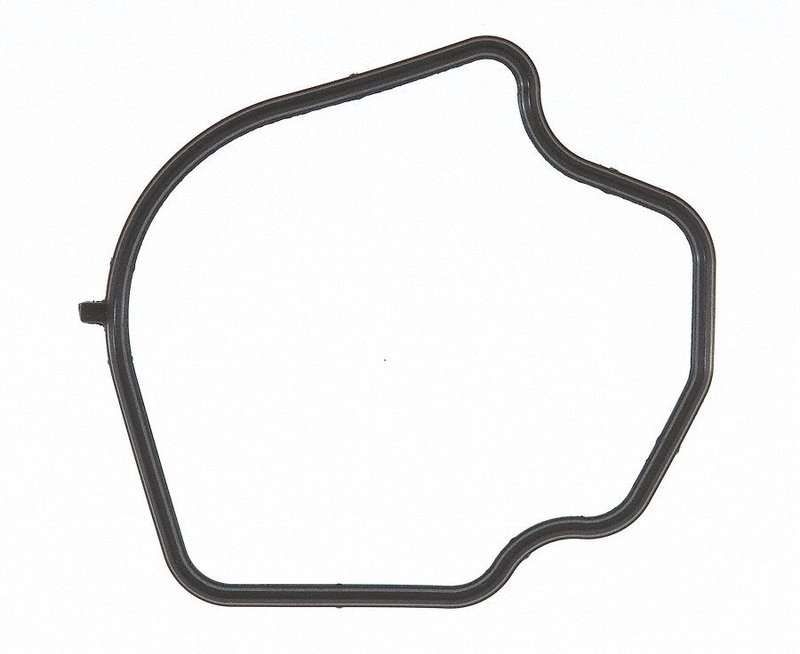

Mahle G31655 Fuel Injection Throttle Body Mounting Gasket - Inner
| Brand | Mahle G31655 |
|---|---|
| Position | Inner |
| Additional Package Contents | None |
| Item Grade | OEM Standard |
| Throttle Body Gasket Material | Molded Rubber |
| Fits | Pontiac and Toyota · 23 vehicles |
OEM standard. Built to match original equipment expectations for dependable sealing.
Molded rubber. Provides a precise seal at the throttle body mounting surface.
Trusted by OEMs. MAHLE sealing products are used by technicians around the globe.
Cross-references FEL-PRO 61134, Toyota 22271-0D030 and Toyota 22271-22040 for the same application. See all 3.
OE-Style Throttle Body Sealing
The Mahle G31655 fuel injection throttle body mounting gasket provides a precise seal between the throttle body and intake manifold. Built with molded rubber and OEM standard construction, it supports consistent airflow sealing on select Toyota, Pontiac, and Scion-platform applications.
Use this gasket when servicing a throttle body to intake manifold joint on vehicles such as the Toyota Corolla, Toyota Celica, Toyota MR2 Spyder, Toyota Matrix, and Pontiac Vibe. The Mahle G31655 is made to match the sealing needs of the original application.
Key Features
- Molded rubber throttle body gasket material
- OEM standard item grade
- Designed for throttle body to intake manifold sealing
- Single-gasket application with no additional package contents
- Mahle sealing product backed by OE-focused manufacturing standards
Detailed Description
Mahle G31655 is a fuel injection throttle body mounting gasket for select 2000-2006 Toyota and Pontiac vehicles. It is engineered as an OE-style sealing component for the throttle body-to-intake manifold interface, helping maintain a tight seal where air and fuel delivery components meet. This part cross-references FEL-PRO 61134 for the same application.
Fits 2003-2006 Pontiac Vibe, throttle body to intake manifold molded rubber gasket. Fits 2004-2006 Toyota Matrix, throttle body to intake manifold; AWD. Fits 2000-2005 Toyota Celica, throttle body to intake manifold molded rubber gasket. Fits 2003-2005 Toyota MR2 Spyder, inner, throttle body to intake manifold molded rubber gasket. Fits 2002-2004 Toyota Corolla, throttle body to intake manifold molded rubber gasket. Fits 2003 Toyota Matrix, throttle body to intake manifold molded rubber gasket. Fits 2000-2002 Toyota MR2 Spyder, throttle body to intake manifold molded rubber gasket.
Common Repair Uses
- Throttle body air leaks at the intake manifold joint
- Idle quality issues related to sealing loss
- Vacuum leaks around the throttle body mounting surface
- Replacement during throttle body service or intake service
- Restoring a proper seal after gasket wear or compression set
Installation Notes and Tips
Clean both mating surfaces before installation and inspect the throttle body and intake manifold for residue, damage, or warpage. Confirm the gasket is seated correctly in the mounting groove or flange before tightening the assembly to the manufacturer’s service procedure.
Quality Assurance
Mahle supplies sealing products used by OEMs and technicians worldwide, and this gasket is built to OEM standard specifications for the listed applications.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Pontiac | Vibe | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2006 | Toyota | Matrix | AWD | 1.8L | L4 | N/A | Throttle Body to Intake Manifold; Molded Rubber; AWD |
| 2005 | Pontiac | Vibe | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2005 | Toyota | Celica | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2005 | Toyota | Matrix | AWD | 1.8L | L4 | N/A | Throttle Body to Intake Manifold; Molded Rubber; AWD |
| 2005 | Toyota | MR2 Spyder | — | 1.8L | L4 | Inner | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2004 | Pontiac | Vibe | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2004 | Toyota | Celica | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2004 | Toyota | Corolla | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2004 | Toyota | Matrix | AWD | 1.8L | L4 | N/A | Throttle Body to Intake Manifold; Molded Rubber; AWD |
| 2004 | Toyota | MR2 Spyder | — | 1.8L | L4 | Inner | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2003 | Pontiac | Vibe | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2003 | Toyota | Celica | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2003 | Toyota | Corolla | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2003 | Toyota | Matrix | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2003 | Toyota | MR2 Spyder | — | 1.8L | L4 | Inner | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2002 | Toyota | Celica | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2002 | Toyota | Corolla | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2002 | Toyota | MR2 Spyder | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2001 | Toyota | Celica | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2001 | Toyota | MR2 Spyder | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2000 | Toyota | Celica | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
| 2000 | Toyota | MR2 Spyder | — | 1.8L | L4 | N/A | Throttle Body to Intake Manifold Molded Rubber Gasket |
