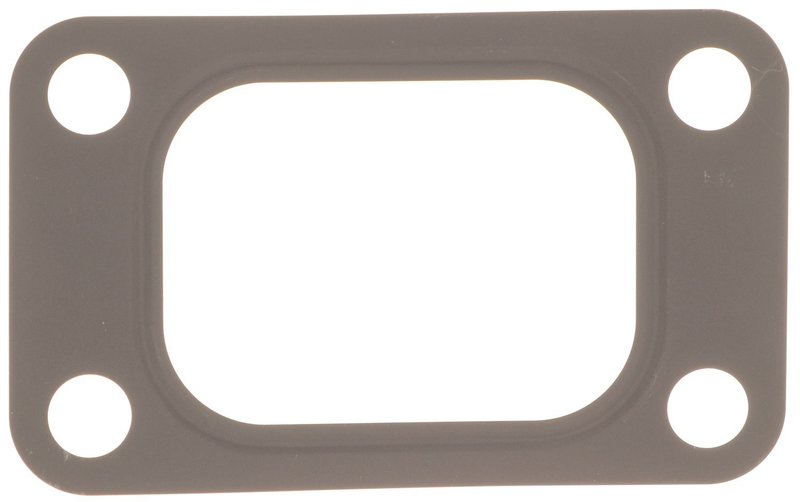

Mahle G33429 Turbocharger Inlet Gasket

Turbocharger Inlet Gasket for OE-Style Sealing

The Mahle G33429 turbocharger inlet gasket is built for a precise seal at the turbo inlet connection. It uses coated embossed steel construction to support consistent sealing performance in demanding turbocharged applications.

Compatible With select Chevrolet, GMC, Dodge, and Hummer turbocharger inlet applications, this gasket is a direct-fit sealing solution for service work on vehicles such as the Chevrolet Silverado 2500 HD, GMC Sierra 3500, and Dodge Ram 3500. The Mahle G33429 is engineered for the port size and flange style listed below.

Key Features

• Coated embossed steel gasket material for durable sealing performance
• Performance-grade construction for turbocharger inlet service
• Port size: 2.56" x 1.85"
• Mount hole diameter: 7/16"
• Four-bolt flange pattern
• Turbocharger inlet gasket application
• Mahle G33429 part number for easy identification

Detailed Description

Mahle G33429 is a turbocharger inlet gasket designed around a coated embossed steel sealing surface to help maintain a tight connection between the turbocharger inlet and mating flange. Mahle gaskets are used by OEMs and technicians worldwide for sealing applications that demand consistent fit and reliable material performance. This gasket is specified for T03 flange, undivided port applications and matches the listed port dimensions and mounting pattern.

This part cross-references Fel-Pro 2015 and 61787 for the same application. It is a practical replacement choice for turbocharged Chevrolet Silverado 2500 HD, GMC Sierra 2500 HD, and Dodge Ram 2500 service repairs where the inlet seal must match the original flange layout.

What This Part Helps Address

• Turbo inlet exhaust leakage at the flange connection
• Loss of sealing integrity from a worn or damaged gasket
• Fitment issues caused by incorrect port size or bolt pattern
• Service repairs on turbocharger inlet connections with T03 undivided ports
• Replacement of heat-affected sealing material during turbo maintenance

Installation Notes and Tips

Verify the flange style, port size, and bolt pattern before installation. This gasket is listed for T03 flange, undivided port applications with four mounting holes and a 7/16" mount hole diameter. Clean both mating surfaces thoroughly before assembly to help the coated embossed steel seal seat evenly.

Compatible vehicle coverage includes 1992-2008 applications across Chevrolet C/K trucks, Silverado HD models, GMC C/K trucks, Sierra HD models, Savana vans, Dodge Ram 2500 and Ram 3500, plus select Hummer H1 models. Confirm the exact engine and turbocharger flange configuration against the vehicle service information before ordering the Mahle G33429.

Quality Assurance

Mahle supplies sealing products trusted in OEM and professional repair environments. The G33429 is built as a performance-grade turbocharger inlet gasket using coated embossed steel for dependable sealing in the specified application.
