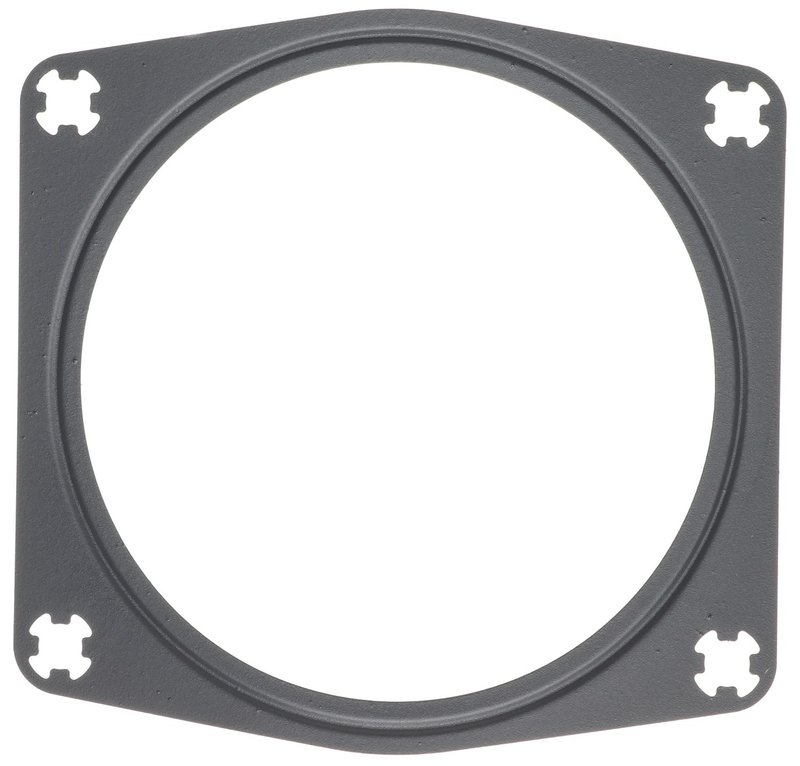

Mahle G33735 Fuel Injection Throttle Body Mounting Gasket

Fuel Injection Throttle Body Seal for Land Rover

Mahle G33735 is a fuel injection throttle body mounting gasket made for sealing the throttle body to the intake side of the engine. It is a direct-fit service part for select Land Rover LR3, Range Rover, and Range Rover Sport applications from 2005-2009.

The Mahle Fuel Injection Throttle Body Seal line focuses on precise sealing at the throttle body interface, helping maintain a stable air path in the intake system. Part number G33735 is a practical replacement when servicing the throttle body on compatible Land Rover vehicles.

Key Features

• Fuel injection throttle body mounting gasket
• Mahle part number G33735
• Fits 2005-2009 Land Rover LR3, N/A
• Fits 2006-2009 Land Rover Range Rover, N/A
• Fits 2006-2009 Land Rover Range Rover Sport, N/A
• Steel construction noted in fitment data
• Cross-reference: 453 6886

Detailed Description

This throttle body seal is used at the mounting point between the throttle body and the intake assembly. On Land Rover LR3, Range Rover, and Range Rover Sport models, a worn or damaged gasket can affect sealing at the throttle body flange. Mahle G33735 provides the correct replacement format for these applications and supports proper reassembly during intake service.

Common Issues It May Address

• Air leakage at the throttle body mounting surface
• Rough idle caused by a compromised intake seal
• Vacuum leak concerns after throttle body service
• Replacement of a flattened, torn, or heat-aged gasket
• Sealing concerns during intake cleaning or throttle body removal

Installation Notes and Tips

Clean both mating surfaces before installation and inspect the throttle body flange for debris, carbon buildup, or damage. Verify the gasket seats evenly during reassembly and follow the vehicle service procedure for the specific Land Rover LR3, Range Rover, or Range Rover Sport application. Use the part number G33735 to confirm the correct seal before installation.

Quality Assurance

Mahle is a recognized OE-focused brand in engine sealing and air/fuel system components. G33735 is built as a replacement throttle body mounting gasket for the listed Land Rover applications and is identified by the cross-reference 453 6886.
