Mahle HS4899W Engine Cylinder Head Gasket Set
OE Quality 60-Day Returns
Mahle

Mahle HS4899W Engine Cylinder Head Gasket Set

Brand Mahle HS4899W
Additional Package Contents Contains miscellaneous gaskets and seals
Cylinder Head Bolts Included No
Cylinder Head Gasket Material Graphite
Exhaust Manifold Gasket Material Composite
Intake Manifold Gasket Material Paper
Item Grade Oem standard
Torque To Yield Yes
Fits Geo and Toyota · 13 vehicles

OEM-standard fit. Built for engine sealing service with factory-style material selection.

Graphite head gasket. Provides dependable sealing at the cylinder head interface.

Torque-to-yield application. Cylinder head bolts are not included and replacement is recommended.

Cross-references FEL-PRO HS 8188 PT, Toyota 04112-16141 and Toyota 04112-16142 for the same application. See all 13.

$129.47Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $129.47
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Cylinder Head Gasket Set options

Engine Cylinder Head Gasket Set Overview

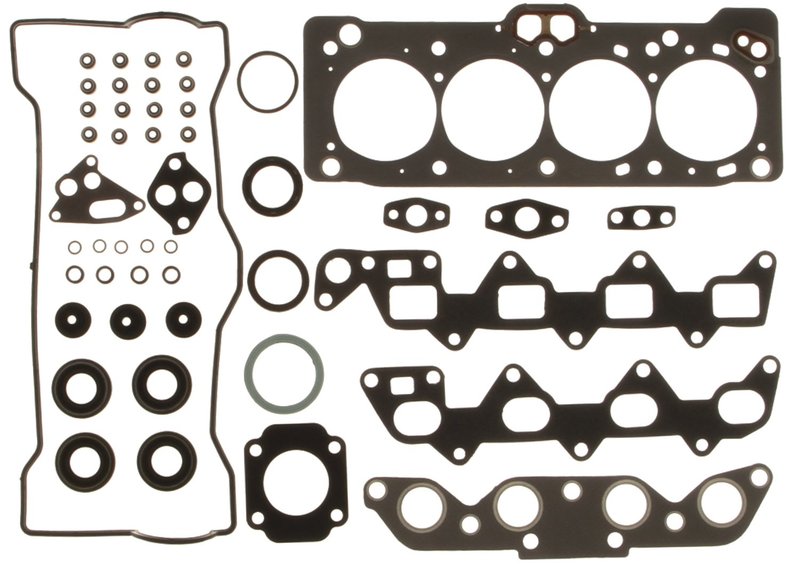

Mahle HS4899W is an OEM-standard engine cylinder head gasket set built for sealing service on select Toyota and Geo applications. It combines a graphite cylinder head gasket with composite exhaust manifold and paper intake manifold gaskets for a service-ready sealing solution.

Key Features

  • OEM-standard gasket set for engine sealing service
  • Graphite cylinder head gasket material for dependable sealing performance
  • Composite exhaust manifold gasket material
  • Paper intake manifold gasket material
  • Contains miscellaneous gaskets and seals for related sealing points
  • Torque-to-yield application; cylinder head bolts are not included

Detailed Product Description

Mahle HS4899W is an engine cylinder head gasket set engineered for repair work where the head gasket and related sealing surfaces need to be renewed together. The set is built to OEM-standard specifications and uses material choices suited to the demands of combustion sealing, intake sealing, and exhaust sealing. The graphite head gasket supports the primary sealing interface, while the included manifold gaskets address adjacent service points during the same repair.

This part cross-references FEL-PRO HS 8188 PT for the same application. It also cross-references Toyota 04112-16141 and 04112-16142 for the same application.

Fits 1990-1993 Toyota Celica, N/A. Fits 1989-1992 Geo Prizm, N/A. Fits 1988-1992 Toyota Corolla, N/A. Mahle HS4899W is a direct fit for these applications when the engine configuration matches the listed coverage.

What It Is Used For

  • Replacing a leaking cylinder head gasket
  • Restoring sealing between the cylinder head and engine block
  • Renewing intake and exhaust manifold sealing surfaces during head service
  • Addressing coolant or compression loss tied to gasket failure
  • Correcting sealing issues after cylinder head removal

Installation Notes and Tips

Use new cylinder head bolts where required, since bolts are not included and the fitment notes specify replacement is recommended. Because this is a torque-to-yield application, follow the factory tightening sequence and torque procedure exactly. Clean all mating surfaces thoroughly before installation and verify engine-specific fitment before assembly.

Quality Assurance

Mahle gaskets are trusted by OEMs and technicians worldwide, and HS4899W is built to OEM-standard requirements for sealing service.

This part fits 13 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
1993ToyotaCelica1.6LL4Cylinder Head Bolts not included, replacement recommended.
1992GeoPrizm1.6LL4Cylinder Head Bolts not included, replacement recommended.
1992ToyotaCelica1.6LL4Cylinder Head Bolts not included, replacement recommended.
1992ToyotaCorolla1.6LL4Cylinder Head Bolts not included, replacement recommended.
1991GeoPrizm1.6LL4Cylinder Head Bolts not included, replacement recommended.
1991ToyotaCelica1.6LL4Cylinder Head Bolts not included, replacement recommended.
1991ToyotaCorolla1.6LL4Cylinder Head Bolts not included, replacement recommended.
1990GeoPrizm1.6LL4Cylinder Head Bolts not included, replacement recommended.
1990ToyotaCelica1.6LL4Cylinder Head Bolts not included, replacement recommended.
1990ToyotaCorolla1.6LL4Cylinder Head Bolts not included, replacement recommended.
1989GeoPrizm1.6LL4Cylinder Head Bolts not included, replacement recommended.
1989ToyotaCorolla1.6LL4Cylinder Head Bolts not included, replacement recommended.
1988ToyotaCorolla1.6LL4Cylinder Head Bolts not included, replacement recommended.
Directly replaces or cross-references 13 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
FEL-PRO — HS 8188 PTToyota — 04112-16141Toyota — 04112-16142Toyota — 04112-16143Toyota — 04112-16144Toyota — 04112-16152Toyota — 04112-16153Toyota — 04112-16154Toyota — 04112-16160Toyota — 04112-16161Toyota — 04112-16162Toyota — 04112-16170Toyota — 04112-16172
