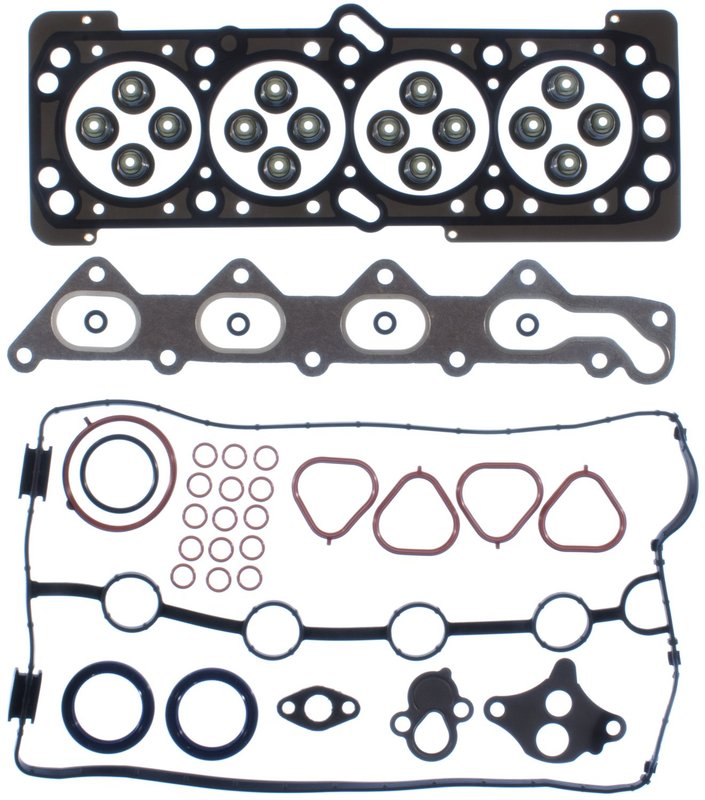

Mahle HS54701 Engine Cylinder Head Gasket Set

Mahle HS54701 Cylinder Head Gasket Set

The Mahle HS54701 engine cylinder head gasket set is built for 2006-2008 Chevrolet Aveo, 2006-2008 Chevrolet Aveo5, 2006-2008 Pontiac Wave, and 2006-2007 Pontiac Wave5 applications. It uses OEM-standard sealing materials to support reliable cylinder head, intake, and exhaust sealing in the specified vehicles.

Key Features

• Multi-layered steel cylinder head gasket for durable sealing performance
• Multi-layered steel exhaust manifold gasket for high-temperature sealing
• Molded rubber intake manifold gasket for a precise fit at the intake interface
• Contains miscellaneous gaskets and seals for related engine sealing points
• OEM Standard item grade for direct replacement use
• Torque-to-yield application; cylinder head bolts are not included

Detailed Description

Mahle HS54701 is an engine cylinder head gasket set engineered for the Chevrolet Aveo and Aveo5, along with the Pontiac Wave and Wave5 in the listed model years. The set centers on multi-layered steel construction for the cylinder head and exhaust manifold gaskets, while the intake manifold gasket uses molded rubber to match the sealing requirements of the engine assembly. Mahle supplies sealing products used by OEMs and technicians worldwide, and this set follows that OE-standard approach for service replacement. This part cross-references FEL-PRO HS 26379 PT for the same application.

What It Helps Address

• Coolant or combustion leakage at the cylinder head sealing surface
• Exhaust leaks at the manifold-to-head interface
• Intake manifold sealing issues that can affect engine operation
• Oil seepage or fluid transfer at related gasket interfaces
• Service replacement needs after cylinder head removal on the listed vehicles

Installation Notes and Tips

Fits 2006-2008 Chevrolet Aveo, N/A. Fits 2006-2008 Chevrolet Aveo5, N/A. Fits 2006-2008 Pontiac Wave, N/A. Fits 2006-2007 Pontiac Wave5, N/A. Cylinder head bolts are not included and replacement is recommended for this torque-to-yield application. Clean all mating surfaces thoroughly, verify head and block flatness, and follow the factory torque sequence and specifications during installation. Use the correct engine service procedures for the vehicle and confirm all sealing surfaces are free of old gasket material before assembly. The part number HS54701 is the correct reference for this Mahle gasket set, and HS54701 should be matched to the vehicle application before installation.

Quality Assurance

Mahle is known for OEM-standard sealing components used in engine service and repair. HS54701 is built to meet the sealing demands of the listed Chevrolet and Pontiac applications with materials selected for the cylinder head, intake, and exhaust interfaces.
