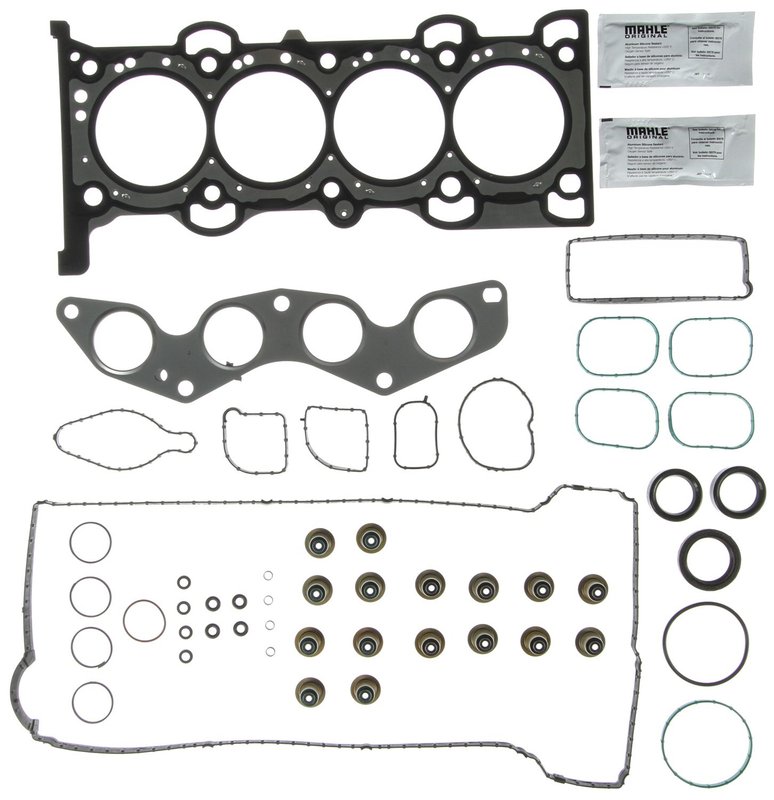

Mahle HS54995 Engine Cylinder Head Gasket Set

Mahle HS54995 Cylinder Head Gasket Set

Mahle HS54995 is an OEM-standard engine cylinder head gasket set built for sealing performance on the 2012-2017 Ford Focus. It combines the core head gasket with the related seals and gaskets needed for a thorough top-end service, helping restore proper sealing across the cylinder head, intake, exhaust, and cooling interfaces.

Key Features

• Multi-layered steel cylinder head gasket for durable sealing
• Includes exhaust manifold gasket, intake manifold gaskets, and valve cover gasket
• Includes camshaft seals, VCT solenoid seals, spark plug tube seals, and valve stem seals
• Includes throttle body gasket, timing cover seal, thermostat housing gasket, and water pump gasket
• OEM-standard item grade for service work on Ford Focus engines
• Fits 2012-2017 Ford Focus, N/A

Detailed Description

Mahle HS54995 is a comprehensive engine cylinder head gasket set for Ford Focus applications from 2012 through 2017. The set centers on a multi-layered steel cylinder head gasket and also includes sealing components for the exhaust manifold, intake manifold, valve cover, timing cover, throttle body, fuel injector O-rings, fuel pump mounting, spark plug tubes, camshaft seals, VCT solenoid seals, valve stem seals, thermostat housing, water outlet adapter, and water pump. This makes it a practical choice for top-end engine resealing where multiple leak points are addressed during the same repair. This part cross-references Ford (e.g., CM5Z-6079-A, CM5Z-6079-B) for the same application.

Common Repair Uses

• Head gasket failure causing coolant or compression loss
• Oil seepage from valve cover, timing cover, or camshaft sealing areas
• Intake or exhaust manifold leaks after cylinder head service
• Spark plug tube oil intrusion and related misfire concerns
• Coolant leaks at the thermostat housing, water outlet, or water pump sealing surfaces

Installation Notes

Fits 2012-2017 Ford Focus, N/A. Cylinder head bolts are not included and replacement is recommended during service. Follow the listed head gasket torque specification exactly: Stage 1 62 lb.in (7 Nm), Stage 2 133 lb.in (15 Nm), Stage 3 26 lb-ft (35 Nm), Stage 4 90°, Stage 5 135°. Clean all mating surfaces thoroughly and verify fastener and torque procedures against the vehicle service information before assembly.

Quality Assurance

Mahle gaskets are trusted by OEMs and technicians worldwide for sealing performance and service consistency. HS54995 is built to OEM-standard expectations for the 2012-2017 Ford Focus engine repair market.
