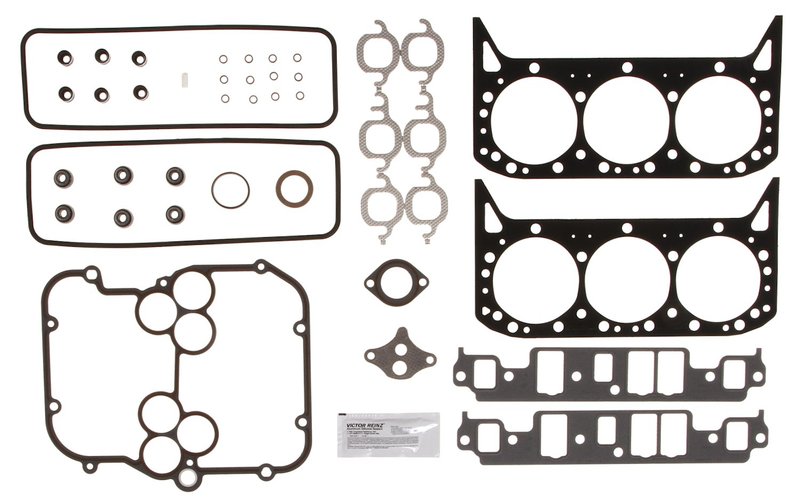

Mahle HS5744C Engine Cylinder Head Gasket Set

Mahle HS5744C Cylinder Head Gasket Set

Mahle HS5744C is an OEM-standard engine cylinder head gasket set built for reliable sealing in service work and rebuilds. It uses a single-sided graphite cylinder head gasket, along with composite exhaust manifold gasket material and paper intake manifold gasket material for a precise fit on the listed applications.

Compatible with 1994-1995 Chevrolet Astro, 1995 Chevrolet Blazer, 1994-1995 Chevrolet S10, 1994-1995 GMC Jimmy, 1994-1995 GMC Safari, 1994-1995 GMC Sonoma, 1994 Chevrolet S10 Blazer, and 1994 Oldsmobile Bravada. Mahle HS5744C is a direct-fit sealing solution for these GM truck and SUV applications.

Key Features

• OEM-standard engine cylinder head gasket set
• Single-sided graphite cylinder head gasket material
• Composite exhaust manifold gasket material
• Paper intake manifold gasket material
• Contains miscellaneous gaskets and seals for the application
• Torque-to-yield design noted for the application
• Cylinder head bolts are not included

Detailed Description

Mahle HS5744C is engineered for engine sealing service where cylinder head, intake, and exhaust sealing surfaces must work together under heat and pressure. The graphite head gasket material supports dependable sealing performance, while the included gasket materials match the needs of the listed Chevrolet, GMC, and Oldsmobile applications. This part cross-references FEL-PRO HS 9354 PT-4 and General Motors 12525460 for the same application.

Common Repair Uses

• Head gasket replacement after coolant loss or combustion leakage
• Sealing repairs during cylinder head service or engine teardown
• Intake manifold sealing during top-end engine repair
• Exhaust manifold sealing when addressing leaks at the manifold interface
• Restoring compression and sealing integrity on GM V6 truck and SUV engines

Installation Notes and Tips

Review the cylinder head, intake, and exhaust sealing surfaces before installation. Clean all mating surfaces thoroughly and follow the factory torque sequence and torque specifications for the engine. Because this application is torque-to-yield, cylinder head bolt replacement is recommended, and cylinder head bolts are not included. Exhaust pipe gasket is not included.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for engine sealing applications. HS5744C is built to OEM-standard expectations for fit and sealing performance in the listed vehicles.
