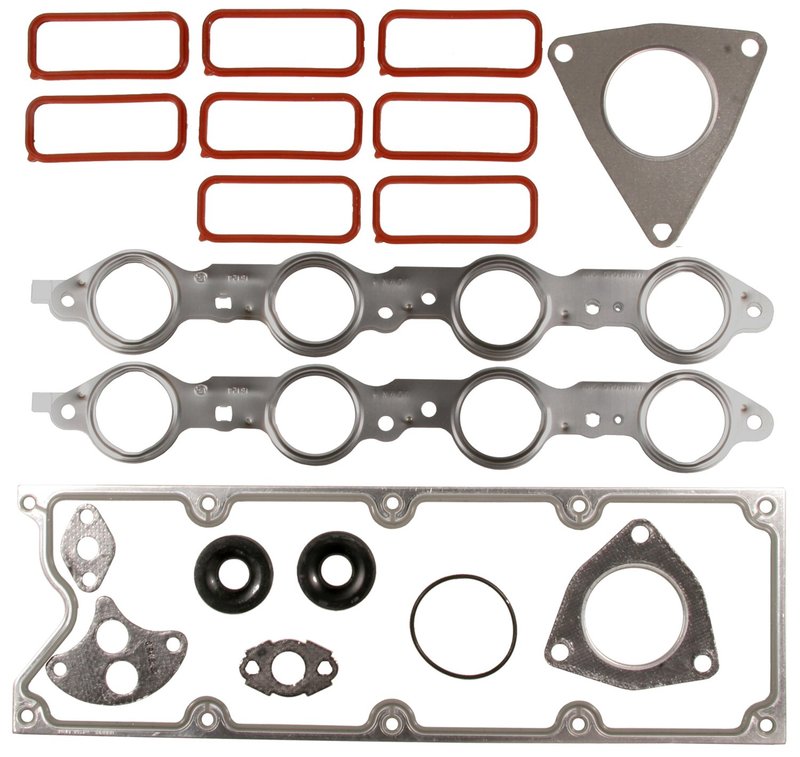

Mahle HS5975 Engine Cylinder Head Gasket Set

Mahle HS5975 Cylinder Head Gasket Set

The Mahle HS5975 engine cylinder head gasket set is built for OEM-standard sealing performance in select Chevrolet Camaro, Chevrolet Corvette, and Pontiac Firebird applications. It uses a multi-layer steel cylinder head gasket, beaded steel exhaust manifold gasket material, and a paper intake manifold gasket to support reliable sealing across critical engine interfaces.

Key Features

• OEM standard engine cylinder head gasket set
• Multi-layered steel cylinder head gasket material
• Beaded steel exhaust manifold gasket material
• Paper intake manifold gasket material
• Contains miscellaneous gaskets and seals
• Torque-to-yield application
• Cylinder head bolts not included

Detailed Description

Mahle HS5975 is an engine gasket set for 1999-2001 Chevrolet Camaro, 1999-2000 Chevrolet Corvette, and 1999-2001 Pontiac Firebird applications. It is engineered for direct sealing service in the cylinder head area and related intake and exhaust interfaces, with materials selected to match OEM-style service requirements. This part cross-references FEL-PRO HS 9284 PT-1 for the same application.

Common Repair Uses

• Head gasket replacement after coolant loss or combustion sealing failure
• Repair of compression loss between the cylinder head and engine block
• Sealing service for intake manifold leakage
• Exhaust manifold sealing repair during top-end engine service
• Replacement of worn miscellaneous gaskets and seals during engine teardown

Installation Notes and Tips

Fits 2001 Chevrolet Camaro, N/A; 2001 Pontiac Firebird, N/A; 1999-2000 Chevrolet Camaro, N/A; 1999-2000 Chevrolet Corvette, N/A; and 1999-2000 Pontiac Firebird, N/A. Cylinder head bolts are not included, and replacement is recommended for these torque-to-yield applications. Verify the 1st design with 14.4mm valve guide O.D. on 2001 Camaro and 2001 Firebird applications before installation. Clean all mating surfaces thoroughly and follow the factory torque sequence and specifications.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for sealing applications that require consistent fit and material selection. The HS5975 is an OEM-standard gasket set built for engine service where accurate sealing at the head, intake, and exhaust interfaces matters.
