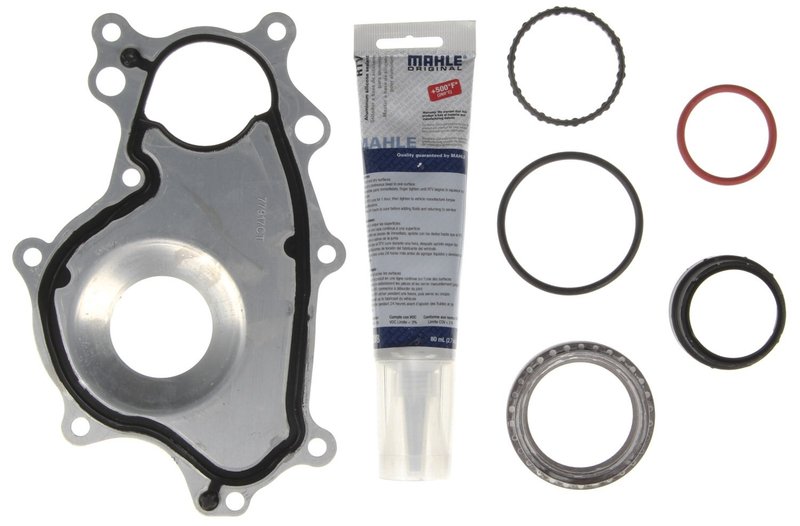

Mahle JV5184 Engine Timing Cover Gasket Set

Overview

Mahle JV5184 is an OEM-standard engine timing cover gasket set for Ford applications that need reliable sealing at the timing cover and related coolant interfaces. It includes multiple sealing components for a complete service approach, and it is listed for Ford F-150, Ford Transit vans, and Ford Mustang applications.

Use JV5184 when servicing a timing cover leak on a Ford engine and you need a gasket set built around the original sealing layout. The Mahle JV5184 part number is also useful when cross-checking timing cover gasket set listings for the same application.

Key Features

• OEM-standard gasket set for engine timing cover service
• Includes timing cover seal, radial seal, and related coolant sealing components
• Contains thermostat housing and water pump gaskets for listed applications
• Designed for Ford engine sealing repairs where multiple interfaces are serviced together
• Mahle sealing products are trusted by OEMs and technicians worldwide

Detailed Description

Mahle JV5184 is an engine timing cover gasket set built to match OEM-standard sealing requirements. The kit includes a timing cover seal, timing cover radial seal, coolant inlet tube O-ring, thermostat housing gasket, thermostat O-ring, water pump gasket for serpentine belt driven applications, and a water outlet gasket. That combination supports a more complete reseal during timing cover service on Ford engines.

This part fits 2011-2015 Ford Mustang, N/A; fits 2011-2014 Ford F-150, N/A; fits 2015-2019 Ford Transit-150, N/A; fits 2015-2019 Ford Transit-250, N/A; fits 2015-2019 Ford Transit-350, N/A; fits 2015-2019 Ford Transit-350 HD, N/A; and fits 2018-2020 Ford F-150, N/A. The Mahle JV5184 part number should be matched to the vehicle’s engine sealing layout and notes, especially where valve cover gaskets are not included.

This part cross-references FEL-PRO TCS 46182 for the same application.

Common Repair Uses

• Timing cover oil seepage at the front of the engine
• Coolant leakage around the thermostat housing or water pump sealing points
• Sealing wear after timing cover removal during engine service
• Loss of sealing integrity at related O-ring and gasket interfaces

Installation Notes

Confirm engine configuration and application notes before installation, since fitment varies by model year and platform. Clean all mating surfaces thoroughly and inspect the timing cover, thermostat housing, and water pump sealing faces for damage before assembly. Replace any worn sealing surfaces that could prevent the gasket set from sealing correctly.

Quality Assurance

Mahle gaskets are used by OEMs and technicians around the world, and JV5184 is listed as an OEM-standard replacement. The Mahle JV5184 timing cover gasket set is built for professional engine sealing service.
