Mahle JV5191 Engine Timing Cover Gasket Set

Timing Cover Sealing Set

Mahle JV5191 is an OEM-standard timing cover gasket set built for engine sealing service on select Ford Super Duty and medium-duty applications. It includes molded rubber timing cover gaskets and seal components to support a precise seal at the front of the engine.

Key Features

• OEM Standard grade for service-level fit and sealing performance
• Molded rubber timing cover gasket material for consistent sealing
• Includes timing cover gaskets, timing cover seal, and water pump gasket
• Additional sealing components included for related engine interfaces
• Sealant included for installation where specified by the application

Detailed Description

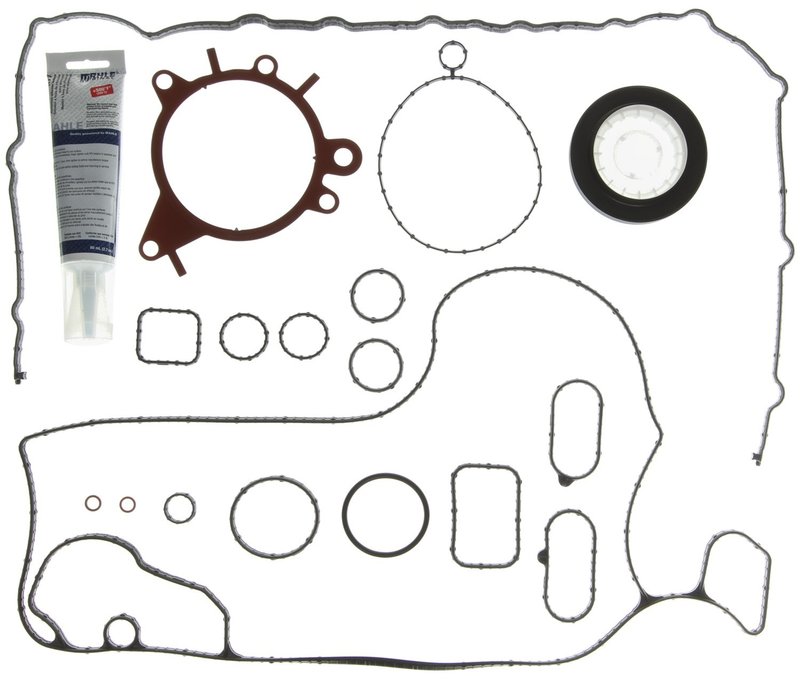

This Mahle timing cover gasket set, part number JV5191, is designed for engine sealing work where the timing cover, water pump, and related oil and vacuum passages are serviced together. The kit includes lower radiator hose O-ring, oil cooler mounting gaskets, oil dipstick tube O-rings, upper oil pan gaskets, vacuum pump gaskets, timing cover gaskets, timing cover seal, and water pump gasket. The molded rubber construction supports a dependable seal across the covered interfaces. This part cross-references TCS 46172 for the same application.

Compatible With select Ford F-250 Super Duty, F-350 Super Duty, F-450 Super Duty, F-550 Super Duty, F-650, and F-750 applications listed for 2015-2019 service. Use the fitment notes carefully, including the 2015-2018 applications that note the lower oil pan gasket is not included and require use with OS32438. Mahle JV5191 is a practical choice when replacing multiple front-engine sealing points during timing cover service on Ford Super Duty platforms.

What It Is Used For

• Sealing leaks at the timing cover area
• Replacing worn gaskets and O-rings during front-engine service
• Restoring sealing at the water pump mounting interface
• Addressing oil seepage from related cover and tube connections
• Supporting service on Ford Super Duty and medium-duty diesel applications

Installation Notes

Review the fitment notes before installation. Some applications require use with OS32438, and 2015-2018 listings note that the lower oil pan gasket is not included. Clean all mating surfaces thoroughly and follow the vehicle service procedure for sealant application and torque sequence.

Quality Assurance

MAHLE gaskets are trusted by OEMs and technicians worldwide for engine sealing applications. JV5191 is built to OEM Standard specifications for service replacement use.
