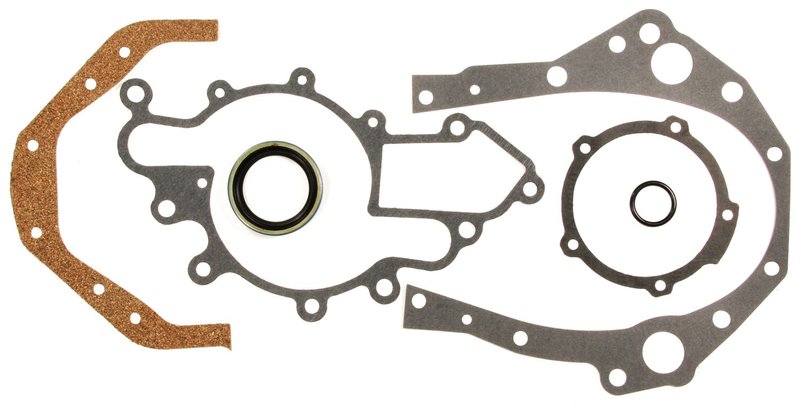

Mahle JV948 Engine Timing Cover Gasket Set

Name: Mahle JV948 Engine Timing Cover Gasket Set
Brand: Mahle
SKU: FLHQ-JV948
Price: 29.27 USD
Availability: InStock

79 vehicles fit this part

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

$29.27Free Shipping

Free ShippingNo Cost to Continental U.S.

Free Returns*Wrong fit? No cost

60-Day ReturnsMoney back guarantee

*Free return shipping only qualifies if our fitment verification tool is used.

In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.

OE Direct Replacement — Bolt-on fit, no modifications needed

Fitment: Buick, Cadillac, Chevrolet, GMC, Jeep, Oldsmobile, and Pontiac, 6000, Camaro, Cavalier, Celebrity, Century, Cherokee, Cimarron, Citation, Citation II, Comanche, Cutlass Ciera, Fiero, Firebird, Firenza, Omega, Phoenix, S10, S10 Blazer, S15, S15 Jimmy, Skylark, and Wagoneer

Easy Returns — Return within 60 days for a full refund

Fast Shipping — Most orders ship same business day before 1pm CST

Not what you need? See all Engine Timing Cover Gasket Set options

Engine Timing Cover Gasket Set for OE-Style Sealing

Mahle JV948 is an OEM-standard engine timing cover gasket set built for sealing service on a range of GM, Jeep, and Pontiac applications from 1980-1987. It uses paper timing cover gasket material and includes the water pump gasket, plus additional front-end sealing components for a more complete repair.

This Mahle JV948 timing cover gasket set is a direct-fit sealing solution for vehicles such as the 1982-1986 Chevrolet S10, 1984-1986 Jeep Cherokee, and 1982-1986 Pontiac Firebird. Mahle gaskets are used by OEMs and technicians worldwide for dependable sealing performance.

Key Features

OEM Standard item grade for factory-style service
Paper timing cover gasket material
Water pump gasket included
Oil pan front seal included
Oil pump pick up tube O-ring included
No sealant included
No repair sleeve included
No oil pump gasket included

Detailed Description

Mahle JV948 is an engine timing cover gasket set for front engine sealing service where the timing cover, water pump interface, and related seals need attention. The set is built around OE-style sealing requirements and is suited for repair work on vehicles including the 1980-1985 Buick Skylark, 1982-1986 Chevrolet Camaro, 1982-1986 Chevrolet Celebrity, 1982-1986 GMC S15, 1984-1986 Jeep Wagoneer, and 1982-1986 Oldsmobile Omega. This part cross-references FEL-PRO TCS 45466 and TCS 45467 for the same application.

Common Repair Uses

Oil seepage at the timing cover
Coolant leakage at the water pump sealing surface
Front engine oil leaks around the oil pan seal area
Vacuum or oil leakage at the oil pump pick up tube O-ring
Service replacement for aged paper gaskets on older engines

Installation Notes and Tips

Clean all gasket surfaces thoroughly before assembly and inspect the timing cover, water pump flange, and mating surfaces for corrosion or distortion. Because no repair sleeve is included, verify shaft and sealing surface condition before installation. Use the correct torque sequence and follow the vehicle service procedure for the specific engine.

Quality Assurance

Mahle supplies sealing products used by OEMs and professional technicians, and JV948 is built to OEM-standard expectations for fit and sealing performance. Compatible with 1980-1987 applications including Pontiac Fiero, Chevrolet S10, and Jeep Cherokee, this Mahle JV948 gasket set supports accurate front-cover service on the listed vehicles.

Brand	Mahle
Part Number	JV948
Additional Package Contents	Oil pan front seal, oil pump pick up tube o-ring
Item Grade	Oem standard
Oil Pump Gasket Included	No
Package Quantity	6
Repair Sleeve Included	No
Sealant Included	No
Timing Cover Gasket Material	Paper
Water Pump Gasket Included	Yes

This part fits 79 vehicles. Search below:

Year	Make	Model	Liters	Cylinders	Position	Notes
1987	Pontiac	Fiero	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Buick	Century	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Cadillac	Cimarron	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Chevrolet	Camaro	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Chevrolet	Cavalier	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Chevrolet	Celebrity	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Chevrolet	S10	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Chevrolet	S10 Blazer	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	GMC	S15	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	GMC	S15 Jimmy	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Jeep	Cherokee	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Jeep	Comanche	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Jeep	Wagoneer	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Oldsmobile	Cutlass Ciera	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Oldsmobile	Firenza	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Pontiac	6000	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Pontiac	Fiero	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1986	Pontiac	Firebird	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Buick	Skylark	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Cadillac	Cimarron	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Chevrolet	Camaro	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Chevrolet	Cavalier	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Chevrolet	Celebrity	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Chevrolet	Citation II	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Chevrolet	S10	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Chevrolet	S10 Blazer	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	GMC	S15	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	GMC	S15 Jimmy	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Jeep	Cherokee	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Jeep	Wagoneer	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Oldsmobile	Firenza	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Pontiac	6000	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Pontiac	Fiero	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1985	Pontiac	Firebird	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Buick	Skylark	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Chevrolet	Camaro	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Chevrolet	Celebrity	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Chevrolet	Citation II	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Chevrolet	S10	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Chevrolet	S10 Blazer	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	GMC	S15	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	GMC	S15 Jimmy	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Jeep	Cherokee	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Jeep	Wagoneer	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Oldsmobile	Omega	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Pontiac	6000	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Pontiac	Firebird	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1984	Pontiac	Phoenix	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	Buick	Skylark	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	Chevrolet	Camaro	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	Chevrolet	Celebrity	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	Chevrolet	Citation	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	Chevrolet	S10	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	Chevrolet	S10 Blazer	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	GMC	S15	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	GMC	S15 Jimmy	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	Oldsmobile	Omega	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	Pontiac	6000	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	Pontiac	Firebird	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1983	Pontiac	Phoenix	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	Buick	Skylark	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	Chevrolet	Camaro	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	Chevrolet	Celebrity	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	Chevrolet	Citation	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	Chevrolet	S10	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	GMC	S15	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	Oldsmobile	Cutlass Ciera	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	Oldsmobile	Omega	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	Pontiac	6000	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	Pontiac	Firebird	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1982	Pontiac	Phoenix	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1981	Buick	Skylark	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1981	Chevrolet	Citation	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1981	Oldsmobile	Omega	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1981	Pontiac	Phoenix	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1980	Buick	Skylark	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1980	Chevrolet	Citation	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1980	Oldsmobile	Omega	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.
1980	Pontiac	Phoenix	2.8L	V6	N/A	Engine Timing Cover Gasket Set does not come with a repair sleeve.

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

TCS 45466TCS 45467

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
