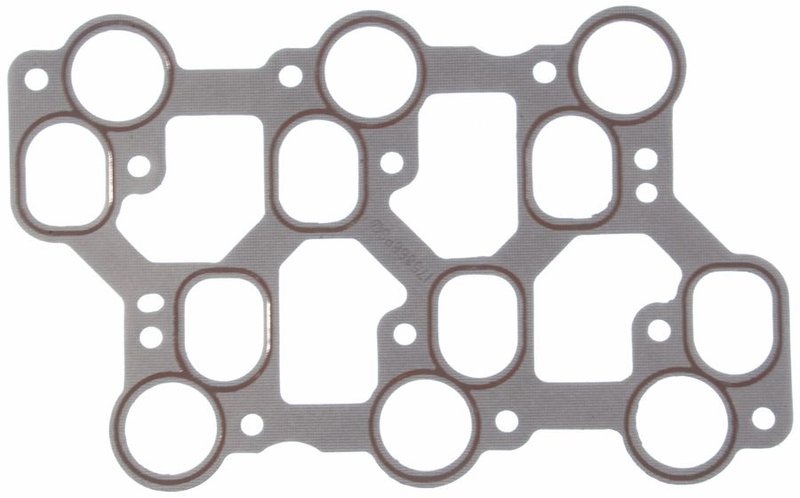

Mahle MS16284 Fuel Injection Plenum Gasket

Mahle MS16284 Fuel Injection Plenum Gasket

Mahle MS16284 is an OEM-standard fuel injection plenum gasket built with performance composite material for reliable sealing at the intake and EGR interface. It is a direct-fit sealing component for select Ford applications, including Mustang, E-150 Econoline, E-150 Econoline Club Wagon, E-250 Econoline, and F-150 models.

Mahle gaskets are used by OEMs and technicians worldwide for sealing performance that supports consistent engine operation. If you are replacing a worn plenum or EGR valve gasket on a Ford Mustang or Ford truck, MS16284 provides the correct sealing profile for the listed applications.

Key Features

• OEM-standard fuel injection plenum gasket
• Performance composite plenum gasket material
• Includes plenum gasket in the package contents
• Built for select Ford Mustang, E-150 Econoline, E-250 Econoline, and F-150 applications
• Cross-references FEL-PRO MS 95981 and Ford XR3Z 9H486-AA

Application Details

Compatible With 1999-2004 Ford Mustang, N/A. Compatible With 1998-2000 Ford E-150 Econoline, N/A. Compatible With 1998-2000 Ford E-150 Econoline Club Wagon, N/A. Compatible With 1998-2000 Ford E-250 Econoline, N/A. Compatible With 1998-2000 Ford F-150, N/A. Compatible With 1997 Ford E-150 Econoline, N/A, Performance Composite; From 7/31/97. Compatible With 1997 Ford E-150 Econoline Club Wagon, N/A, Performance Composite; From 7/31/97. Compatible With 1997 Ford E-250 Econoline, N/A, Performance Composite; From 7/31/97. Compatible With 1997 Ford F-150, N/A, Performance Composite; From 7/31/97.

What It Helps Address

• Intake or plenum sealing leaks at the gasket interface
• EGR valve gasket sealing concerns on listed Ford applications
• Vacuum leaks that can affect idle quality and drivability
• Air leakage that can contribute to rough engine operation
• Replacement of a deteriorated or compressed factory gasket

Installation Notes

Verify engine configuration and model year before installation, especially on 1997 Ford applications with the 7/31/97 note. Clean both mating surfaces thoroughly and inspect the plenum and EGR mounting faces for damage before assembly. Use the correct torque sequence and factory service specifications for the vehicle.

Quality Assurance

Mahle supplies sealing products trusted by OEMs and technicians around the globe. MS16284 is an OEM-standard gasket engineered for dependable sealing performance in the listed Ford Mustang and Ford truck applications.
