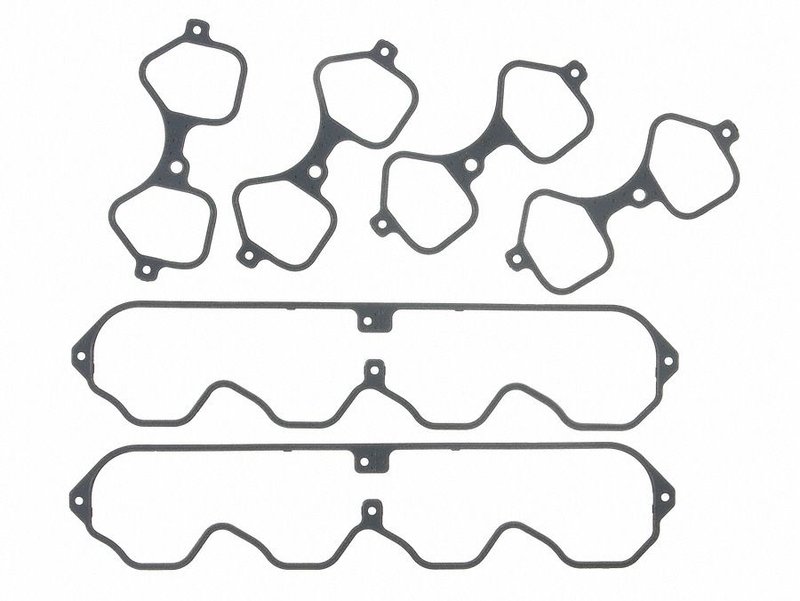

Mahle MS16369 Engine Intake Manifold Gasket Set

Engine Intake Manifold Gasket Set

Mahle MS16369 is an OEM-standard engine intake manifold gasket set built for secure sealing at the intake manifold and plenum interface. It uses steel gasket materials and includes a plenum gasket for applications that require a complete sealing solution.

Key Features

• OEM standard part for factory-style fit and sealing performance.
• Steel intake manifold gasket material for stable sealing under engine heat.
• Steel plenum gasket material for consistent sealing at the upper intake interface.
• Includes a plenum gasket for applications that use a separate plenum seal.
• Mahle MS16369 is part of a sealing product line trusted by OEMs and technicians worldwide.

Detailed Description

Mahle MS16369 is an engine intake manifold gasket set for select Cadillac applications, including 1993-1994 Cadillac Eldorado, 1993-1994 Cadillac Seville, 1994 Cadillac DeVille, and 1993 Cadillac Allante. This gasket set is built to OEM-standard specifications and uses steel construction for both the intake manifold gasket and the plenum gasket, helping maintain a reliable seal where intake air and engine vacuum integrity matter. If you are replacing a leaking intake manifold gasket on a Cadillac DeVille, Eldorado, Seville, or Allante, MS16369 provides the sealing components needed for the job. This part cross-references FEL-PRO (e.g., MS 93225) for the same application.

What It Is Used For

• Repairing intake manifold gasket leaks.
• Addressing vacuum leaks at the intake sealing surfaces.
• Restoring proper sealing between the manifold and plenum.
• Replacing worn or heat-aged gasket material during engine service.

Installation Notes and Tips

Verify engine-specific application details before installation, since the fitment notes reference multiple engine configurations. Clean all mating surfaces thoroughly and inspect the intake manifold and plenum for warpage or damage before assembly. Follow the vehicle service procedure for torque sequence and recheck sealing surfaces after installation.

Quality Assurance

Mahle gaskets are sealing products used by OEMs and technicians around the world. MS16369 is an OEM-standard part designed to meet factory-style sealing requirements.
