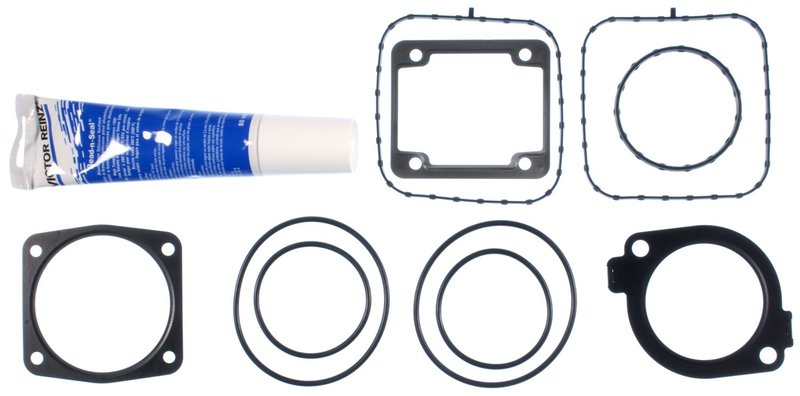

Mahle MS19689 Engine Intake Manifold Gasket Set

Mahle MS19689 Intake Manifold Gasket Set

The Mahle MS19689 engine intake manifold gasket set is built for OEM-standard sealing performance on select GM trucks and vans. It is a direct-fit sealing solution for 2007-2010 Chevrolet Express 2500, Chevrolet Express 3500, Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Savana 2500, GMC Savana 3500, GMC Sierra 2500 HD, and GMC Sierra 3500 HD applications.

Mahle gaskets are used by OEMs and technicians worldwide for dependable engine sealing. This set includes steel intake manifold and plenum gasket materials, along with air injection seals, an intake manifold heater gasket, and a throttle body gasket for the listed applications.

Key Features

• OEM-standard engine intake manifold gasket set
• Steel intake manifold gasket material for stable sealing
• Steel plenum gasket material
• Includes air injection seals, intake manifold heater gasket, and throttle body gasket
• Direct replacement for select Chevrolet and GMC 6.0L-era applications
• Cross-references FEL-PRO MS 97318 for the same application

Detailed Description

Mahle MS19689 is an intake manifold gasket set engineered for sealing the intake manifold, plenum, and related intake components on compatible Chevrolet Express, Silverado, Savana, and Sierra models from 2007 through 2010. The steel gasket construction supports consistent sealing under heat cycling and manifold movement, while the included supplemental seals and gaskets address the related intake system interfaces called out for these vehicles. This part number, MS19689, is a practical OE-style replacement when servicing intake leaks or resealing the upper intake assembly on the listed GM platforms.

Common Repair Uses

• Intake manifold vacuum leaks
• Coolant or air leakage at intake sealing surfaces
• Throttle body sealing issues during intake service
• Plenum sealing concerns on GM truck and van engines
• Maintenance repairs after intake manifold removal

Installation Notes and Tips

Clean all mating surfaces thoroughly before installation and inspect the intake manifold, throttle body, and heater gasket surfaces for damage or warpage. Follow the vehicle service procedure for sealant use where specified, and verify the correct application by year, make, and model before installation. For 2007-2010 Chevrolet Silverado 2500 HD, Chevrolet Silverado 3500 HD, GMC Sierra 2500 HD, and GMC Sierra 3500 HD service work, confirm the intake system configuration matches the listed fitment.

Quality Assurance

Mahle supplies sealing products used by OEMs and technicians around the world, and this MS19689 gasket set is built to OEM-standard expectations for fit and sealing performance.
