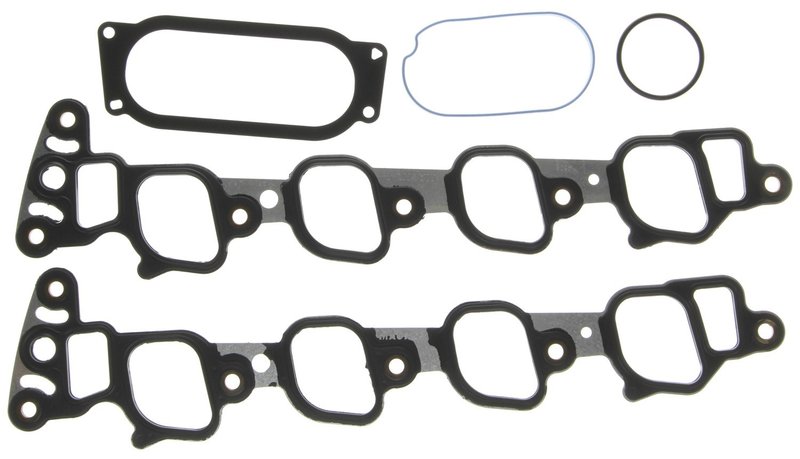

Mahle MS20315 Engine Intake Manifold Gasket Set - Lower

Engine Intake Manifold Gasket Set

The Mahle MS20315 engine intake manifold gasket set is built for Ford trucks and vans that use steel carrier intake gaskets. It includes the intake manifold gaskets, throttle body gaskets, and water outlet gasket needed for a complete sealing service on the listed applications.

• Steel carrier intake manifold gasket construction with a rubber bead for sealing support.
• Includes intake manifold gaskets, throttle body gaskets, and water outlet gasket.
• Performance-grade gasket set for intake system service.
• Compatible with multiple Ford E-Series, Expedition, Excursion, and F-Series applications.

Detailed Fitment and Use

Fits 2000-2010 Ford E-150, N/A; 2000-2010 Ford E-250, N/A; 2000-2010 Ford E-350 Super Duty, N/A; 2003-2005 Ford E-150 Club Wagon, N/A; 2003-2005 Ford E-350 Club Wagon, N/A; 2000-2005 Ford Excursion, N/A; 2000-2004 Ford Expedition, N/A; 2000-2004 Ford F-250 Super Duty, N/A; 2000-2004 Ford F-350 Super Duty, N/A; 2000-2003 Ford F-150, N/A; 2002-2003 Ford F-150, Lower; 2000-2002 Ford E-150 Econoline, N/A; 2000-2002 Ford E-150 Econoline Club Wagon, N/A; 2000-2002 Ford E-250 Econoline, N/A; 2000-2002 Ford E-350 Econoline Club Wagon, N/A; 2001 Ford F-150, Lower.

This gasket set is used to restore sealing at the intake manifold, throttle body, and water outlet interfaces. On Ford F-150, Ford Expedition, and Ford E-Series applications, it addresses leaks that can affect idle quality, vacuum integrity, and coolant sealing at the intake assembly.

• Intake manifold gasket leakage
• Throttle body gasket seepage
• Water outlet sealing issues
• Vacuum leaks at the intake assembly
• Coolant loss at gasket interfaces

Installation Notes and Tips

Verify engine configuration and gasket style before installation, especially on Ford F-150 applications with lower intake fitment notes. Clean all mating surfaces thoroughly and inspect the intake manifold, throttle body, and water outlet for warpage or damage before assembly. Follow the vehicle service procedure for torque sequence and recheck sealing surfaces after installation.

Quality Assurance

Mahle gaskets are trusted by OEMs and technicians worldwide for sealing applications. Part number MS20315 is a direct reference for this intake manifold gasket set, and it cross-references FEL-PRO MS98008T-3 for the same application.
