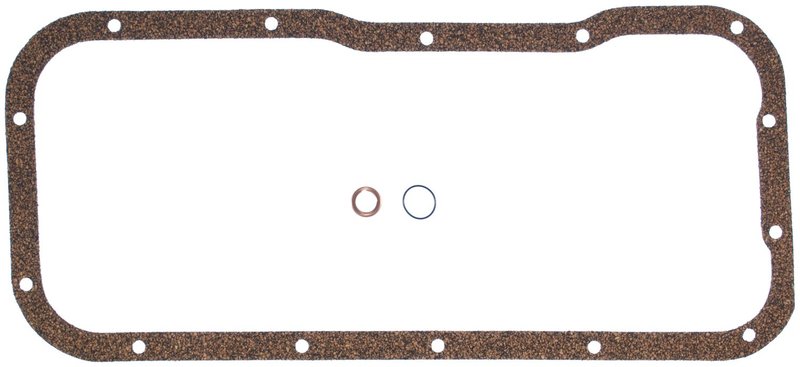

Mahle OS32100 Engine Oil Pan Gasket Set

Mahle OS32100 Oil Pan Gasket Set

The Mahle OS32100 engine oil pan gasket set is built for dependable sealing on select Nissan applications. It uses cork-rubber material for a stable seal and includes an oil tube O-ring and drain plug washer for a more complete service on the oil pan sealing system.

Key Features

• Cork-rubber oil pan gasket material for standard OEM-style sealing
• 0.09 in. / 2.29 mm thickness
• 14 bolt hole design for the specified applications
• Includes oil tube O-ring and drain plug washer
• OEM Standard item grade
• Mahle sealing products are used by OEMs and technicians worldwide

Detailed Description

Mahle OS32100 is an engine oil pan gasket set made for service work where consistent sealing and proper fit are important. The cork-rubber construction helps form a reliable seal at the oil pan flange, while the standard-grade design supports routine maintenance on older Nissan engines. This part cross-references FEL-PRO OS 30619 C and Rol OS6004 for the same application. It is a practical choice for Nissan Sentra, Nissan 200SX, Nissan NX, and Nissan Pulsar NX models within the listed years.

What It Helps Fix

• Oil seepage at the oil pan gasket surface
• Leaks around the drain plug sealing area
• Seepage at the oil tube connection
• Loss of sealing from aged or compressed gasket material
• Maintenance issues during oil pan service on Nissan Sentra and related models

Installation Notes and Tips

Clean the oil pan and engine sealing surfaces thoroughly before installation. Inspect the flange for warping, old gasket residue, or damage that could affect sealing. Replace the drain plug washer during service and verify the oil tube O-ring is seated correctly. Confirm vehicle application by year and model before ordering; this Mahle OS32100 gasket set is listed for 1989-2006 Nissan Sentra, 1995-1998 Nissan 200SX, 1991-1993 Nissan NX, and 1989-1990 Nissan Pulsar NX.

Quality Assurance

Mahle sealing components are recognized for OEM-level engineering and are trusted by manufacturers and technicians for engine sealing service. The OS32100 is built to OEM Standard specifications for the listed Nissan applications.
