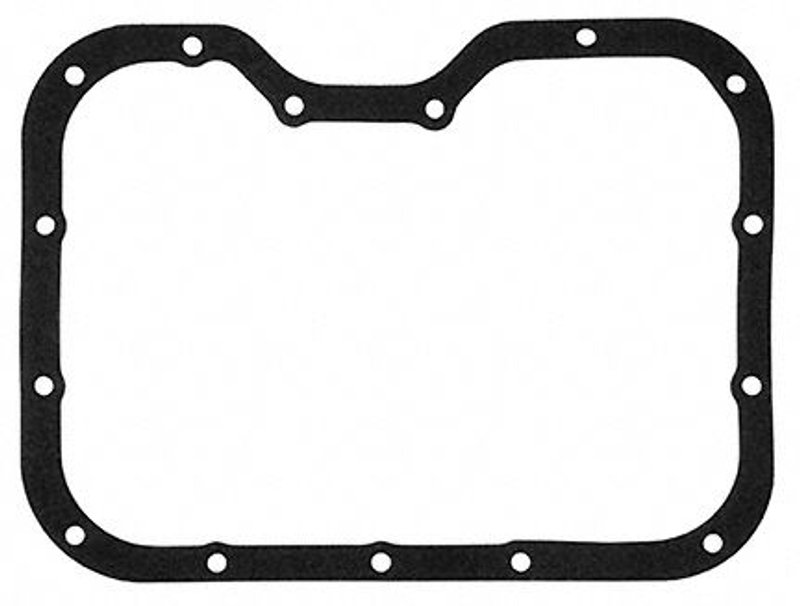

Mahle OS32138 Engine Oil Pan Gasket

Mahle OS32138 Engine Oil Pan Gasket

The Mahle OS32138 engine oil pan gasket is an OEM-standard sealing solution for select Toyota and Geo applications. Built from fiber and paper gasket material, it is specified for a precise seal at the oil pan to help maintain proper engine oil containment.

Key Features

• Part number: OS32138
• OEM-standard engine oil pan gasket
• Fiber construction with paper gasket material
• Thickness: 1.5 mm (0.06 in.)
• Bolt hole quantity: 15
• Package quantity: 1
• No gasket sealant included
• No drain plug washer included

Fitment Details

• Fits 1993-1997 Geo Prizm, N/A. Not compatible with paper engine oil pan gasket.
• Fits 1994-1997 Toyota Celica, N/A. Not compatible with paper engine oil pan gasket.
• Fits 1993-1997 Toyota Corolla, N/A. Not compatible with paper engine oil pan gasket.

This part cross-references Toyota (e.g., 12102-16010) and FEL-PRO (e.g., OS 30917 C) for the same application. If you are replacing an oil pan gasket on a Toyota Corolla, Toyota Celica, or Geo Prizm, OS32138 provides the correct sealing profile for the listed engine applications.

What It Helps Address

• Oil seepage at the engine oil pan flange
• Leaks caused by a worn or flattened gasket
• Loss of sealing integrity after oil pan service
• Improper fit from the wrong gasket thickness or bolt pattern
• Repeat leaks on Toyota Corolla, Toyota Celica, and Geo Prizm applications

Installation Notes

Clean the oil pan and engine block sealing surfaces thoroughly before installation. Verify the 15-bolt-hole layout and confirm the gasket thickness matches the original application. Do not add sealant unless the service procedure for the vehicle specifically calls for it.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide, and this OS32138 gasket is built to OEM-standard expectations for sealing performance and fit.
