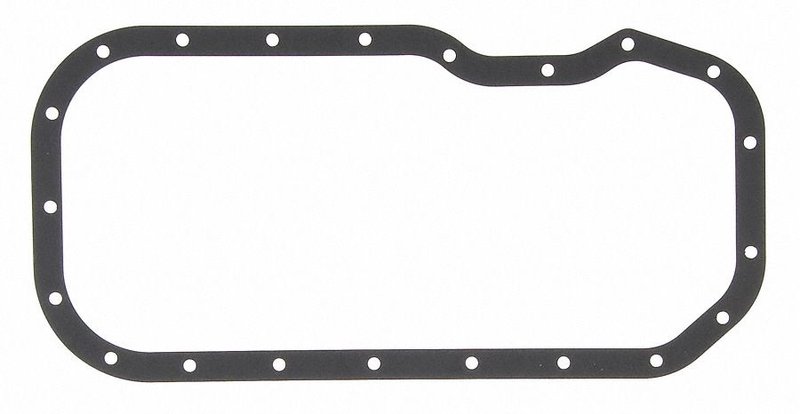

Mahle OS32239 Engine Oil Pan Gasket
OE Quality 60-Day Returns
Mahle

Mahle OS32239 Engine Oil Pan Gasket

Brand Mahle OS32239
Material Fiber
Thickness 0.03
Thickness 0.76
Bolt Hole Quantity 21
Crank Seals Included No
Drain Plug Washer Included No
Oil Pan Snapups Included No
Exhaust Pipe Packing Included No
Gasket Sealant Included No
Additional Package Contents None
Item Grade Oem standard
Oil Pan Gasket Material Paper
Package Quantity 1
Fits Geo and Toyota · 10 vehicles

OEM-standard fit. Built for service replacement where a paper-style oil pan gasket is specified.

Fiber construction. Thin 0.03-inch profile supports a precise sealing surface.

Mahle sealing expertise. Trusted gasket engineering used by OEMs and technicians worldwide.

Cross-references FEL-PRO OS 30639 for the same application. See all 1.

$22.44Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $22.44
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Oil Pan Gasket options

Engine Oil Pan Gasket Overview

The Mahle OS32239 engine oil pan gasket is an OEM-standard sealing solution built for applications that require a paper-style gasket. It uses fiber construction with a thin 0.03-inch profile for a precise seal at the oil pan flange. Compatible With 1993-1997 Geo Prizm and 1993-1997 Toyota Corolla, this gasket is a direct fit for listed applications.

Key Features

  • Fiber material with paper gasket construction for consistent sealing performance.
  • 0.03-inch thickness for a low-profile fit at the oil pan surface.
  • OEM-standard item grade for service replacement use.
  • 21 bolt holes for the specified oil pan pattern.
  • Mahle OS32239 part number for accurate ordering and catalog matching.

Detailed Description

Mahle OS32239 is an engine oil pan gasket engineered for the listed Geo and Toyota applications. The fiber-based, paper-style design supports a clean sealing interface between the oil pan and engine block, helping maintain proper crankcase sealing where the original gasket specification calls for this material type. The thin profile and OEM-standard construction make it a practical replacement for service work on the Corolla and Prizm platforms.

This part cross-references FEL-PRO OS 30639 for the same application.

What It Is Used For

  • Replacing a leaking or deteriorated oil pan gasket.
  • Restoring crankcase sealing at the oil pan flange.
  • Addressing oil seepage from a worn paper-style gasket.
  • Servicing engines that require an OEM-standard fiber gasket.

Installation Notes and Tips

Clean the oil pan and engine sealing surfaces thoroughly before installation. Verify that the flange is flat and free of old gasket material, sealant residue, or debris. This gasket is listed for applications that do not use a drain plug washer, crank seals, or gasket sealant as included components.

Quality Assurance

MAHLE gaskets are trusted by OEMs and technicians worldwide for sealing applications that require consistent fit and function. OS32239 is built to OEM-standard expectations for the listed fitment.

This part fits 10 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersNotes
1997GeoPrizm1.6LL4Not compatible with paper engine oil pan gasket.
1997ToyotaCorolla1.6LL4Not compatible with paper engine oil pan gasket.
1996GeoPrizm1.6LL4Not compatible with paper engine oil pan gasket.
1996ToyotaCorolla1.6LL4Not compatible with paper engine oil pan gasket.
1995GeoPrizm1.6LL4Not compatible with paper engine oil pan gasket.
1995ToyotaCorolla1.6LL4Not compatible with paper engine oil pan gasket.
1994GeoPrizm1.6LL4Not compatible with paper engine oil pan gasket.
1994ToyotaCorolla1.6LL4Not compatible with paper engine oil pan gasket.
1993GeoPrizm1.6LL4Not compatible with paper engine oil pan gasket.
1993ToyotaCorolla1.6LL4Not compatible with paper engine oil pan gasket.
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
FEL-PRO — OS 30639
