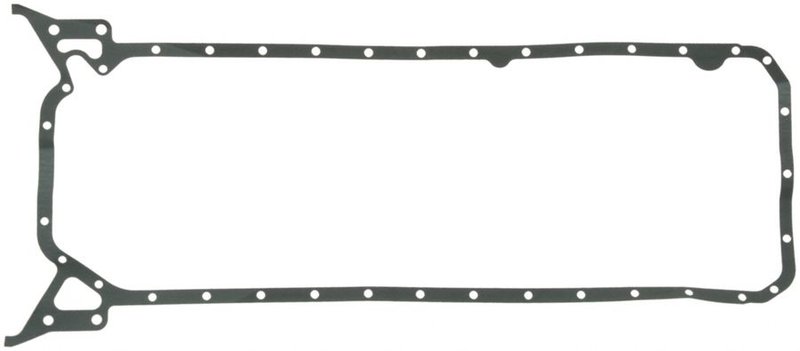

Mahle OS32341 Engine Oil Pan Gasket

Engine Oil Pan Gasket for Mercedes-Benz

The Mahle OS32341 engine oil pan gasket is built for dependable sealing in Mercedes-Benz applications that require a cork-rubber gasket material and precise bolt-hole alignment. It supports clean, leak-resistant oil pan service for classic Mercedes-Benz engines, including 190E, 260E, 300E, 300SE, 300SEL, and 300TE models.

Mahle sealing products are trusted by OEMs and technicians worldwide for consistent fit and material quality. The OS32341 is a practical choice when replacing a worn oil pan gasket on a Mercedes-Benz 190E oil pan service or a Mercedes-Benz 300E engine reseal.

Key Features

• Cork-rubber construction for conformable sealing at the oil pan flange
• 0.02 in. / 0.4 mm thickness for a low-profile sealing surface
• 39 bolt holes for application-specific fitment
• No crank seals included
• No drain plug washer included
• No gasket sealant included
• Mahle part number OS32341

Detailed Description

Mahle OS32341 is an engine oil pan gasket made from cork-rubber material, selected for sealing surfaces that need flexibility and compression resistance. The gasket is engineered to match the bolt pattern and flange layout used in supported Mercedes-Benz engines, helping maintain a secure seal between the oil pan and engine block. This part cross-references Beck/Arnley 0340772 for the same application.

Compatible With 1987-1993 Mercedes-Benz 190E, N/A; 1987-1989 Mercedes-Benz 260E, N/A; 1990-1993 Mercedes-Benz 300E, N/A; 1990-1993 Mercedes-Benz 300TE, N/A; 1990-1991 Mercedes-Benz 300SE, N/A; and 1990-1991 Mercedes-Benz 300SEL, N/A. The Mahle OS32341 also cross-references Mercedes-Benz 103 014 01 22, 103 014 03 22, and 103 014 04 22.

What It Helps Address

• Oil seepage at the oil pan-to-block sealing surface
• Leaks caused by a flattened, hardened, or damaged gasket
• Messy underbody oil residue from a compromised pan seal
• Repeated resealing issues after prior gasket failure
• Service interruptions during Mercedes-Benz engine maintenance

Installation Notes and Tips

Clean both mating surfaces thoroughly before installation and inspect the oil pan flange for distortion, corrosion, or old sealant residue. Because no gasket sealant is included, follow the vehicle service procedure for sealant use only where specified by the manufacturer. Verify bolt-hole alignment and torque fasteners evenly in sequence to help the gasket seat properly.

Quality Assurance

Mahle sealing components are used by OEMs and technicians around the globe, and OS32341 follows that same OE-focused approach to material selection and fit. For Mercedes-Benz oil pan gasket replacement on 1987-1993 190E and related 260E, 300E, 300TE, 300SE, and 300SEL applications, this part number provides a direct service solution.
