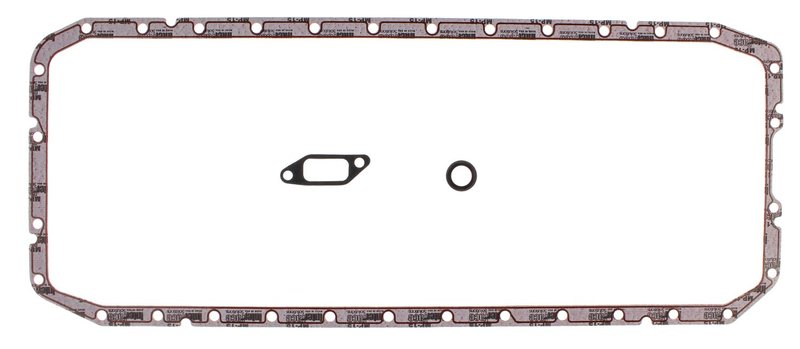

Mahle OS32381 Engine Oil Pan Gasket Set

Engine Oil Pan Gasket Set for Ram and Dodge Trucks

Mahle OS32381 is an OEM-standard engine oil pan gasket set built for sealing the oil pan on select Ram and Dodge heavy-duty trucks. It uses fiber and beaded paper gasket materials with a standard-grade construction to support a reliable seal on applications that call for this design.

Compatible With 2011-2018 Ram 2500 and Ram 3500, as well as 2008-2010 Dodge Ram 2500 and Dodge Ram 3500. This Mahle oil pan gasket set is a direct-fit sealing solution for service work on these truck platforms.

Key Features

• Mahle engine oil pan gasket set, part number OS32381
• OEM standard item grade for service replacement use
• Fiber construction with beaded paper oil pan gasket material
• Standard thickness profile for the listed applications
• 34 bolt hole locations for the specified oil pan pattern
• Crank seals not included

Product Details

Mahle’s engine oil pan gasket set line is built around sealing performance for OE-style repairs. OS32381 is specified with fiber material and beaded paper gasket construction, which helps maintain a consistent seal at the oil pan flange on the listed Ram and Dodge truck applications. The part number OS32381 is also referenced in service catalogs for these vehicles, making it a practical choice when replacing a leaking or damaged oil pan gasket.

This part cross-references FEL-PRO OS 30738 for the same application.

Common Problems This Part Can Address

• Oil seepage at the oil pan gasket surface
• Visible oil drips under the engine
• Sealing failure after prior service or gasket wear
• Leak concerns around the oil pan flange on Ram 2500 and Ram 3500 trucks
• Leak concerns on Dodge Ram 2500 and Dodge Ram 3500 oil pan service

Installation Notes and Tips

Clean the oil pan and engine mating surfaces thoroughly before installation. Inspect the flange for damage, warping, or old gasket residue, and verify bolt-hole alignment before tightening. Follow the vehicle service manual for torque sequence and torque specification to help achieve an even seal.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for sealing applications. OS32381 is an OEM-standard replacement part built to meet the requirements of the listed truck fitments.
