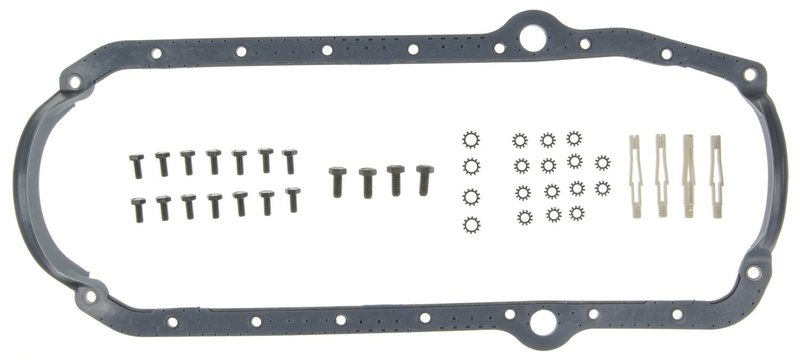

Mahle OS32457 Engine Oil Pan Gasket Set

Mahle OS32457 Oil Pan Gasket Set

Mahle OS32457 is an engine oil pan gasket set built with molded rubber for a standard-grade seal. It is made for classic GM V8 applications where a stable oil pan seal is needed on Chevrolet, GMC, Pontiac, Buick, and Oldsmobile vehicles.

For Chevrolet C10, Camaro, El Camino, Nova, and GMC K-series trucks, this gasket set supports direct oil pan sealing service with fitment coverage across a wide range of 1970s and 1980s applications. Mahle is known for sealing products used by OEMs and technicians worldwide.

Key Features

• Molded rubber construction for consistent sealing performance
• Standard-grade engine oil pan gasket set
• 0.18 in. / 4.8 mm thickness
• Crank seals not included
• Cross-references FEL-PRO 1880 and OS 34510 T for the same application

Detailed Description

Mahle OS32457 is an engine oil pan gasket set for select Chevrolet, GMC, Pontiac, Buick, and Oldsmobile vehicles from 1970 through 1985. It is engineered for applications including Chevrolet C10, Camaro, Corvette, Monte Carlo, El Camino, and GMC C1500, along with Pontiac Firebird and Oldsmobile Cutlass models. The molded rubber material helps maintain a uniform seal at the oil pan rail, while the standard-grade design suits routine engine sealing service. Mahle OS32457 is a practical choice when replacing a leaking oil pan gasket on classic GM platforms.

Common Uses

• Oil seepage at the oil pan rail
• Leak repair after pan removal or engine service
• Sealing issues on aging molded rubber gaskets
• Maintenance on Chevrolet C10 and Camaro engines
• Service work on GMC K1500 and Pontiac Firebird applications

Installation Notes and Tips

Clean the oil pan and engine block sealing surfaces thoroughly before installation. Check the pan flange for distortion and verify that the mating surfaces are dry and free of old gasket material. Confirm vehicle fitment by year, make, and model before ordering, especially on Chevrolet C10, GMC C1500, and Pontiac Firebird applications. This part is listed for right- and left-hand dipstick configurations in the supported vehicles.

Quality Assurance

Mahle sealing products are used by OEMs and technicians around the world, with a focus on dependable engine sealing performance. OS32457 is built as a molded rubber oil pan gasket set for standard service replacement.
