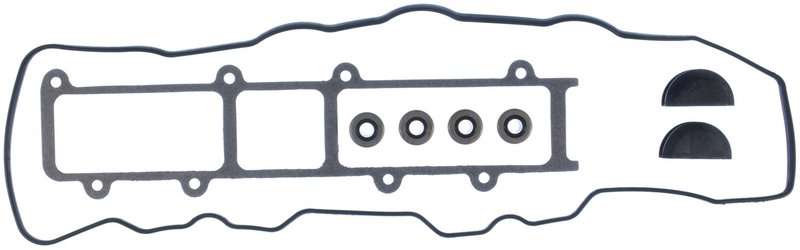

Mahle VS30011 Engine Valve Cover Gasket Set

Mahle Valve Cover Gasket Set VS30011

Mahle VS30011 is an OEM-standard engine valve cover gasket set built with molded rubber for reliable sealing at the valve cover. It is a direct-fit sealing solution for select Toyota applications, including Toyota 4Runner, Celica, Pickup, and Corona models.

MAHLE gaskets are used by OEMs and technicians worldwide for dependable sealing performance. This set includes valve cover grommets and valve cover end plugs, with molded rubber construction that supports a consistent seal on the engine top end.

Key Features

• Molded rubber valve cover gasket material
• OEM standard item grade
• Valve cover grommets included
• Additional package contents: valve cover end plugs
• 8 mounting hole design
• Fits select Toyota engines with confirmed OE-style applications
• Mahle part number VS30011 for catalog lookup and cross-reference

Detailed Description

The Mahle VS30011 engine valve cover gasket set is engineered for sealing the valve cover to the cylinder head on select Toyota vehicles. The molded rubber construction helps maintain a stable seal under normal engine heat cycles, while the included grommets and end plugs address common leak points around the valve cover assembly. This part cross-references FEL-PRO VS 50357 R for the same application.

Compatible With Toyota 4Runner, 1984; Toyota Celica, 1975-1984; Toyota Pickup, 1975-1984; and Toyota Corona, 1975-1982. If you are searching for a Toyota valve cover gasket set VS30011, this Mahle sealing kit matches the listed OE-style applications and supports accurate replacement selection.

Common Problems This Part Helps Solve

• Oil seepage from the valve cover perimeter
• Oil leaks around valve cover end plug areas
• Seepage at worn valve cover grommet locations
• Loss of sealing from aged or hardened gasket material
• Top-end oil residue that can collect on the engine exterior

Installation Notes and Tips

Clean the valve cover and cylinder head sealing surfaces thoroughly before installation. Inspect the cover for warpage, damaged bolt holes, or residue that can affect sealing. Replace the gasket only after confirming the engine application and mounting hole layout match the vehicle listed for Mahle VS30011.

For best results, follow the factory tightening sequence and torque specifications for the specific Toyota engine. Verify that the valve cover end plugs and grommets are seated correctly before final assembly.

Quality Assurance

Mahle supplies OEM-standard gaskets and sealing components trusted by vehicle manufacturers and professional technicians. The VS30011 is built to the same general sealing expectations used in OE-style engine repair work, with molded rubber construction selected for consistent fit and sealing performance.
