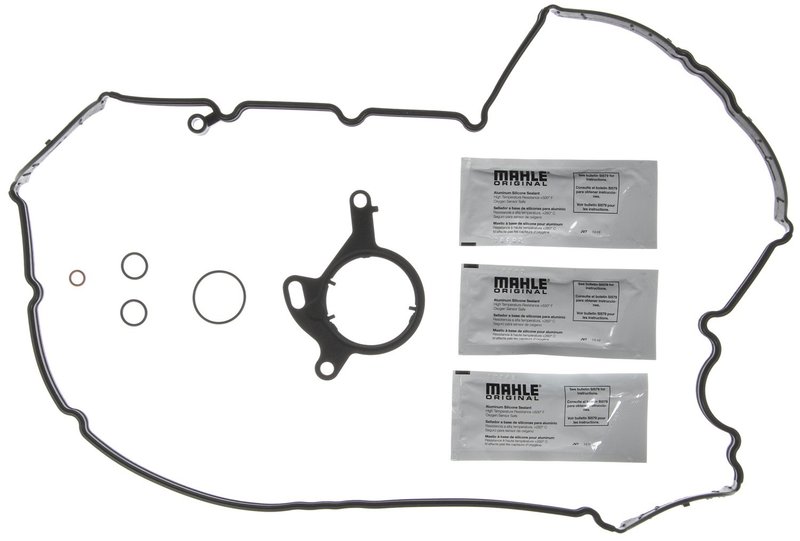

Mahle VS50748 Engine Valve Cover Gasket Set

Engine Valve Cover Gasket Set for Ford Applications

Mahle VS50748 is an OEM-standard engine valve cover gasket set built with molded rubber sealing components for reliable sealing at the valve cover and related engine interfaces. It is a direct-fit service solution for select Ford Fiesta, Escape, Transit Connect, and Fusion models, with application-specific gaskets and O-rings included for common leak points.

MAHLE gasket engineering is trusted by OEMs and technicians worldwide for consistent sealing performance. This set is built around molded rubber materials and includes the related seals needed for the listed Ford engine applications.

Key Features

• Engine valve cover gasket set for select Ford vehicles
• Molded rubber valve cover gasket material
• OEM Standard item grade
• Includes camshaft (VVT) solenoid O-rings, fuel pump mounting gaskets, RTV, vacuum pump gasket, valve cover gasket, and VCT bridge to cylinder head O-ring
• Fuel pump gasket included
• Cross-reference part numbers include BM5Z-6584-A and BM5Z-6584-B
• Mahle VS50748 for service work on valve cover sealing systems

Detailed Description

Mahle VS50748 is an engine valve cover gasket set made from molded rubber for dependable sealing on the specified Ford engine platforms. The kit includes the valve cover gasket plus related sealing components such as camshaft (VVT) solenoid O-rings, fuel pump mounting gaskets, a vacuum pump gasket, RTV, and a VCT bridge to cylinder head O-ring. For technicians servicing oil seepage or top-end sealing concerns, this Mahle VS50748 set provides the sealing pieces needed for the listed Ford Fiesta, Escape, Transit Connect, and Fusion applications.

Compatible With 2014-2019 Ford Fiesta, N/A; 2013-2016 Ford Escape, N/A; 2014-2016 Ford Transit Connect, N/A; and 2013-2014 Ford Fusion, N/A. Mahle VS50748 is also referenced by BM5Z-6584-A, BM5Z-6584-B, and VS 50872 R for the same application.

Common Repair Uses

• Valve cover oil leaks
• Seepage around camshaft VVT solenoid sealing points
• Fuel pump mounting gasket leakage
• Vacuum pump gasket seepage
• Top-end engine oil residue around the cylinder head area

Installation Notes

Clean all gasket mating surfaces thoroughly before installation and inspect the valve cover, cylinder head, and related sealing surfaces for damage or warpage. Replace the old seals with the included molded rubber components and follow the vehicle service procedure for RTV placement and torque sequence. Verify the correct Ford Fiesta, Escape, Transit Connect, or Fusion engine application before installation.

Quality Assurance

Mahle gaskets are engineered to meet OEM-standard sealing requirements and are used in applications where consistent fit and sealing performance matter. VS50748 follows Mahle’s established gasket manufacturing approach for service replacement on the listed Ford vehicles.
