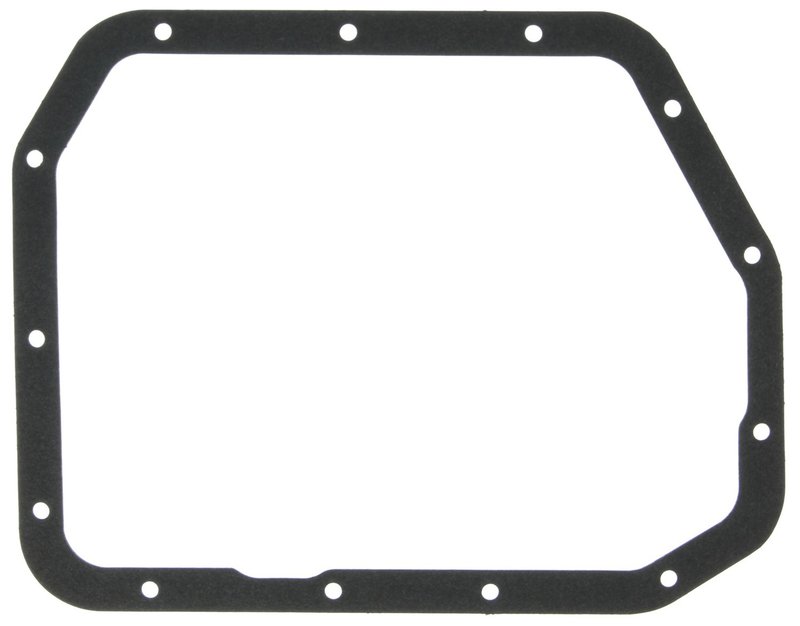

Mahle W32916 Transmission Oil Pan Gasket

Transmission Oil Pan Gasket for Asian Applications

The Mahle W32916 transmission oil pan gasket is a paper-style sealing solution for select Hyundai, Kia, and Mitsubishi vehicles. It is built for direct-fit service on applications that use a 13-bolt-hole transmission pan pattern, helping restore a clean seal at the pan rail.

• Paper transmission oil pan gasket for automatic transmission service
• Fits applications with a 13 bolt hole pan design
• OE-style sealing from Mahle
• Cross-references FEL-PRO TOS18727 for the same application
• Also cross-references Hyundai 45280-22100 and Kia 45280-22100

Vehicle Fitment

• Fits 2006-2012 Mitsubishi Eclipse, N/A; 13 Bolt Holes; Paper
• Fits 2009-2012 Mitsubishi Galant, N/A; 13 Bolt Holes; Paper
• Fits 2000-2011 Hyundai Accent, N/A; 13 Bolt Holes; Paper
• Fits 2006-2011 Kia Rio, N/A; 13 Bolt Holes; Paper
• Fits 2006-2011 Kia Rio5, N/A; 13 Bolt Holes; Paper
• Fits 2005-2010 Kia Sportage, N/A; 13 Bolt Holes; Paper
• Fits 2005-2007 Mitsubishi Lancer, N/A; 13 Bolt Holes; Paper
• Fits 2004-2006 Mitsubishi Outlander, N/A; 13 Bolt Holes; Paper
• Fits 2002-2005 Hyundai Sonata, N/A; 13 Bolt Holes; Paper
• Fits 1999-2000 Hyundai Elantra, N/A; 13 Bolt Holes; Paper

What This Gasket Helps Address

• Transmission fluid seepage at the oil pan flange
• Wet or stained transmission pan edges
• Seal failure after pan removal or service
• Maintenance on Hyundai Accent, Kia Rio, and Mitsubishi Eclipse transmission pans
• Replacement of a worn paper gasket on 13-bolt-hole pans

Installation Notes

Clean the pan rail and transmission mating surface thoroughly before installation. Verify the pan uses a 13-bolt-hole pattern and match the gasket to the vehicle application listed above, including Hyundai Accent, Kia Sportage, and Mitsubishi Galant models. Follow the service procedure for bolt tightening sequence and fluid refill after reassembly.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for sealing applications. The W32916 is an OE-style transmission oil pan gasket built for the listed fitments and sealing requirements.
