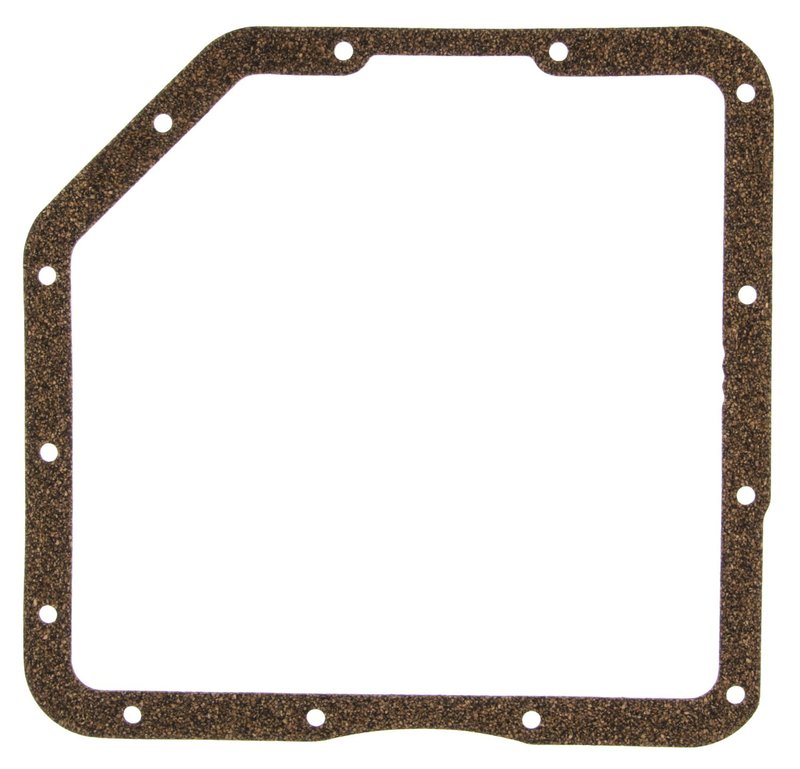

Mahle W39348 Transmission Oil Pan Gasket

Mahle W39348 Transmission Oil Pan Gasket

Mahle W39348 is an OEM-standard transmission oil pan gasket built with cork-rubber material for dependable sealing at the pan rail. It is a direct-fit sealing solution for a wide range of classic Chevrolet, GMC, Buick, Oldsmobile, Pontiac, and Cadillac applications.

Key Features

• Cork-rubber gasket material for consistent sealing performance
• OEM Standard item grade for service-replacement use
• Designed for transmission oil pan sealing applications
• No filter element included
• Additional package contents: none

Application Coverage

Compatible With 1968-1986 Chevrolet C10, C20, C30, K10, K20, K30, Camaro, Corvette, Nova, Caprice, Impala, Monte Carlo, El Camino, Blazer, and related truck and passenger car platforms. It also fits 1968-1986 GMC C1500, C2500, C3500, G1500, G2500, G3500, Jimmy, and K-series applications, along with 1968-1985 Buick, Oldsmobile, Pontiac, and Cadillac models listed in the fitment data.

This part cross-references FEL-PRO TOS 18633 and Rol GB12746 for the same application. Mahle W39348 is also listed against General Motors service numbers 6261175, 6261649, and 25504700.

Detailed Description

Mahle W39348 is engineered for transmission service where a stable seal at the oil pan is critical. The cork-rubber construction helps conform to the mating surfaces of the pan and case, while the OEM-standard specification supports service work on older GM rear-wheel-drive platforms. For technicians and restorers working on Chevrolet C10 and GMC Jimmy models, as well as Buick Regal and Pontiac Firebird applications, this gasket provides a straightforward replacement option for transmission pan resealing.

Common Repair Uses

• Transmission fluid seepage at the oil pan gasket
• Wet or stained pan rails after service
• Maintenance on older GM automatic transmissions
• Replacement during transmission pan removal and inspection
• Resealing after fluid and filter service

Installation Notes and Tips

Clean the pan rail and transmission case sealing surfaces thoroughly before installation. Inspect the pan for distortion around the bolt holes and correct any uneven areas before tightening. Follow the vehicle service manual for torque sequence and specification to help maintain an even seal. Verify the transmission code and application details before ordering, especially on 1970s and 1980s Chevrolet and GMC trucks, as well as Buick, Oldsmobile, and Pontiac passenger cars.

Quality Assurance

Mahle gaskets are used by OEMs and technicians worldwide for sealing applications. W39348 is built to OEM-standard expectations for transmission service and is intended for reliable replacement use on the listed vehicles.
