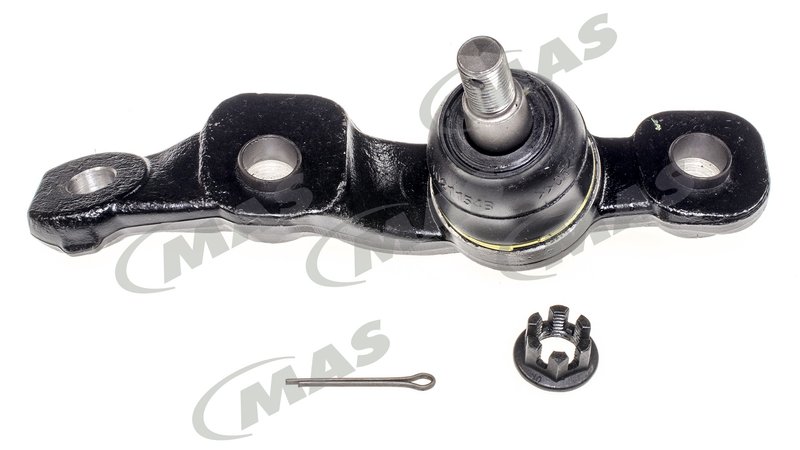

MAS Chassis BJ64094 Suspension Ball Joint - Front Right Lower
| Brand | MAS Chassis BJ64094 |
|---|---|
| Position | Front Right Lower |
| Material | Steel |
| Stud Thread Diameter | 14 |
| Castle Nut Included | Yes |
| Suspension Grade Type | Standard |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Type | Tapered |
| Mounting Type | Bolt on |
| Dust Boot Material | Rubber |
| Attachment Type | Taper |
| Bearing Material | Polymer |
| Bolts/Studs Included | No |
| Housing Press Fit Diameter | 0 |
| Package Contents | 1 ball joint; 1 cotter pin; 1 castle nut |
| Thread Pitch | 1.5 |
| Fits | Lexus · 3 vehicles |
OE replacement. Precision-engineered for original equipment-style suspension service.
Steel construction. Built with a rubber dust boot and polymer bearing material.
Bolt-on design. Includes a castle nut and cotter pin hole for secure attachment.
Cross-references Delphi FA10010, Delphi TC5568 and Mevotech Supreme MS86566 for the same application. See all 5.
Suspension Ball Joint for Lexus LS430
The MAS Chassis BJ64094 is a suspension ball joint built as a direct replacement for the original equipment on specific applications. It is engineered and tested for reliable service in the suspension system, with steel construction and a tapered stud design.
Key Features
- Steel housing for suspension service
- Tapered stud with 14 mm thread diameter and 1.5 thread pitch
- Rubber dust boot helps protect the joint from contamination
- Polymer bearing material for standard-duty operation
- Bolt-on mounting design with included castle nut and cotter pin hole
- Standard suspension grade type
Detailed Description
MAS Chassis BJ64094 is a suspension ball joint for the Lexus LS430, front right lower, covering 2001-2003 applications. It uses a bolt-on mounting type with three mounting holes, a tapered attachment, and a non-greaseable design. The steel body, rubber boot, and polymer bearing material are selected for routine suspension replacement where a standard replacement part is needed. This part number, BJ64094, cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
For buyers searching for a Lexus LS430 front right lower ball joint, BJ64094 provides the fitment-specific replacement format needed for suspension repair. The included castle nut and cotter pin hole support secure installation on the specified application.
What It Is Used For
- Restoring steering and suspension joint integrity
- Replacing a worn or loose ball joint
- Addressing suspension noise from joint wear
- Correcting excess play in the front suspension
Installation Notes and Tips
Fits 2001-2003 Lexus LS430, front right lower. Verify the tapered stud, bolt-on mounting pattern, and thread specifications before installation. Use the specified castle nut and cotter pin arrangement for the application. BJ64094 should be matched to the exact vehicle position listed in the fitment data.
Quality Assurance
This suspension ball joint is precision-engineered and rigorously tested as a replacement for original equipment on specific vehicles. MAS Chassis positions this part as a standard replacement component for suspension service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Lexus | LS430 | Front Right Lower | — |
| 2002 | Lexus | LS430 | Front Right Lower | — |
| 2001 | Lexus | LS430 | Front Right Lower | — |
