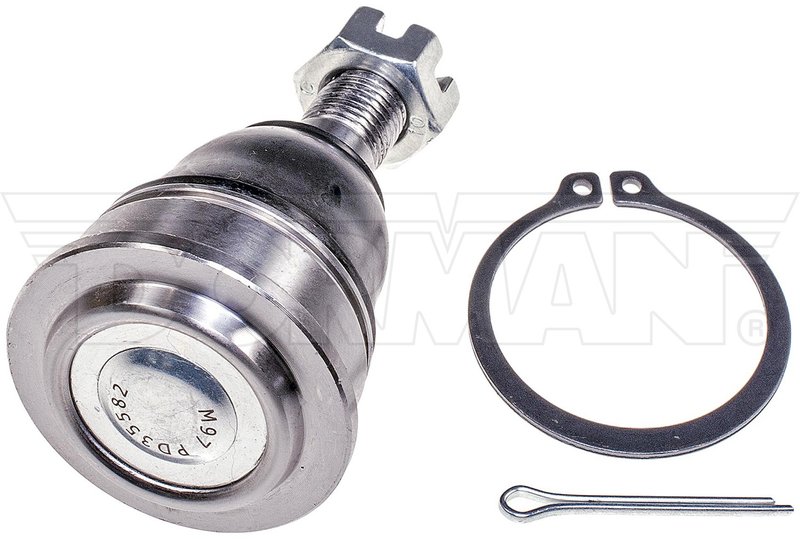

MAS Chassis BJ69026 Suspension Ball Joint - Front Upper
| Brand | MAS Chassis BJ69026 |
|---|---|
| Position | Front Upper |
| Material | Steel |
| Stud Thread Diameter | 14 |
| Castle Nut Included | Yes |
| Suspension Grade Type | Standard |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Type | Taper |
| Mounting Type | Taper |
| Dust Boot Material | Rubber |
| Attachment Type | Taper |
| Bearing Material | Polymer |
| Bolts/Studs Included | No |
| Housing Press Fit Diameter | 46.3 mm |
| Package Contents | 1 ball joint; 1 castle nut; 1 cotter pin; 1 snap ring |
| Thread Pitch | 1.5 |
| Fits | Nissan and Suzuki · 67 vehicles |
OE-style replacement. Precision-engineered and rigorously tested for reliable original-equipment fit.
Steel construction. Built with a rubber dust boot and polymer bearing for dependable operation.
Complete hardware included. Comes with a castle nut, cotter pin, and snap ring for installation.
Cross-references Centric Parts 610.42027, Delphi TC5549 and Mevotech Original Grade GK80660 for the same application. See all 9.
Front Upper Ball Joint for Nissan and Suzuki
MAS Chassis BJ69026 is a standard suspension ball joint built as a direct replacement for select front upper applications. It uses a steel housing, taper-style stud and mounting interface, and a rubber dust boot to support dependable steering and suspension movement on the vehicle.
- Steel construction for durable suspension service
- Front upper ball joint application
- Taper stud type with 14 mm stud thread diameter and 1.5 thread pitch
- Castle nut, cotter pin hole, and mounting hardware included
- Rubber dust boot and polymer bearing material
- Non-adjustable, non-greaseable standard suspension grade design
- Housing press fit diameter: 46.3 mm
Detailed Product Information
MAS Chassis BJ69026 is engineered and tested as an OE-style replacement ball joint for the front upper suspension position. It is listed for 2005-2024 Nissan Frontier, 2005-2015 Nissan Xterra, 2005-2012 Nissan Pathfinder, and 2009-2012 Suzuki Equator. For shoppers comparing suspension parts, BJ69026 is a direct-fit option for Nissan Frontier front upper ball joint replacement and related Nissan Xterra and Pathfinder service needs.
This part cross-references MOOG Chassis Products K80660 and Delphi TC5549 for the same application. The BJ69026 part number is also used in interchange listings for related OE and aftermarket references.
Common Problems This Part Can Address
- Front-end looseness or play at the upper suspension joint
- Clunking or knocking noises from the front suspension
- Uneven steering response caused by worn joint components
- Excess movement in the front upper control arm connection
- Boot damage that can expose the joint to contamination
Installation Notes and Tips
Verify the front upper position and confirm press-fit dimensions before installation. The taper stud, castle nut, cotter pin hole, and included mounting hardware support a secure installation when the surrounding suspension components are in serviceable condition. Because this ball joint is not greaseable and is not adjustable, proper alignment checks after installation are recommended.
Quality Assurance
MAS Chassis states that this suspension ball joint is precision-engineered and rigorously tested for reliable replacement performance on the listed vehicles. BJ69026 is built to standard suspension specifications for consistent fit and function in front upper applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2026 | Nissan | Frontier | — | — | Front Upper | — |
| 2025 | Nissan | Frontier | — | — | Front Upper | — |
| 2025 | Nissan | NP300 | — | — | Front Upper | — |
| 2024 | Nissan | Frontier | — | — | Front Upper | — |
| 2024 | Nissan | NP300 | — | — | Front Upper | — |
| 2023 | Nissan | Frontier | — | — | Front Upper | — |
| 2023 | Nissan | NP300 | — | — | Front Upper | — |
| 2022 | Nissan | Frontier | — | — | Front Upper | — |
| 2022 | Nissan | NP300 | — | — | Front Upper | — |
| 2021 | Nissan | Frontier | — | — | Front Upper | — |
| 2021 | Nissan | NP300 | — | — | Front Upper | — |
| 2020 | Nissan | Frontier | — | — | Front Upper | — |
| 2020 | Nissan | NP300 | — | — | Front Upper | — |
| 2020 | Nissan | NP300 Frontier | — | — | Front Upper | — |
| 2019 | Nissan | Frontier | — | — | Front Upper | — |
| 2019 | Nissan | NP300 | — | — | Front Upper | — |
| 2019 | Nissan | NP300 Frontier | — | — | Front Upper | — |
| 2018 | Nissan | Frontier | — | — | Front Upper | — |
| 2018 | Nissan | NP300 | — | — | Front Upper | — |
| 2018 | Nissan | NP300 Frontier | — | — | Front Upper | — |
| 2017 | Nissan | Frontier | — | — | Front Upper | — |
| 2017 | Nissan | NP300 | — | — | Front Upper | — |
| 2017 | Nissan | NP300 Frontier | — | — | Front Upper | — |
| 2016 | Nissan | Frontier | — | — | Front Upper | — |
| 2016 | Nissan | NP300 | — | — | Front Upper | — |
| 2016 | Nissan | NP300 Frontier | — | — | Front Upper | — |
| 2015 | Nissan | Frontier | — | — | Front Upper | — |
| 2015 | Nissan | Frontier | 4.0L | V6 | Front Upper | — |
| 2015 | Nissan | Xterra | — | — | Front Upper | — |
| 2014 | Nissan | Frontier | — | — | Front Upper | — |
| 2014 | Nissan | Frontier | 4.0L | V6 | Front Upper | — |
| 2014 | Nissan | Xterra | — | — | Front Upper | — |
| 2013 | Nissan | Frontier | — | — | Front Upper | — |
| 2013 | Nissan | Xterra | — | — | Front Upper | — |
| 2012 | Nissan | Frontier | — | — | Front Upper | — |
| 2012 | Nissan | Frontier | 4.0L | V6 | Front Upper | — |
| 2012 | Nissan | Pathfinder | — | — | Front Upper | — |
| 2012 | Nissan | Xterra | — | — | Front Upper | — |
| 2012 | Suzuki | Equator | — | — | Front Upper | — |
| 2011 | Nissan | Frontier | — | — | Front Upper | — |
| 2011 | Nissan | Frontier | 4.0L | V6 | Front Upper | — |
| 2011 | Nissan | Pathfinder | — | — | Front Upper | — |
| 2011 | Nissan | Xterra | — | — | Front Upper | — |
| 2011 | Suzuki | Equator | — | — | Front Upper | — |
| 2010 | Nissan | Frontier | — | — | Front Upper | — |
| 2010 | Nissan | Frontier | 4.0L | V6 | Front Upper | — |
| 2010 | Nissan | Pathfinder | — | — | Front Upper | — |
| 2010 | Nissan | Xterra | — | — | Front Upper | — |
| 2010 | Suzuki | Equator | — | — | Front Upper | — |
| 2009 | Nissan | Frontier | — | — | Front Upper | — |
| 2009 | Nissan | Frontier | 4.0L | V6 | Front Upper | — |
| 2009 | Nissan | Pathfinder | — | — | Front Upper | — |
| 2009 | Nissan | Xterra | — | — | Front Upper | — |
| 2009 | Suzuki | Equator | — | — | Front Upper | — |
| 2008 | Nissan | Frontier | — | — | Front Upper | — |
| 2008 | Nissan | Frontier | 4.0L | V6 | Front Upper | — |
| 2008 | Nissan | Pathfinder | — | — | Front Upper | — |
| 2008 | Nissan | Xterra | — | — | Front Upper | — |
| 2007 | Nissan | Frontier | — | — | Front Upper | — |
| 2007 | Nissan | Pathfinder | — | — | Front Upper | — |
| 2007 | Nissan | Xterra | — | — | Front Upper | — |
| 2006 | Nissan | Frontier | — | — | Front Upper | — |
| 2006 | Nissan | Pathfinder | — | — | Front Upper | — |
| 2006 | Nissan | Xterra | — | — | Front Upper | — |
| 2005 | Nissan | Frontier | — | — | Front Upper | — |
| 2005 | Nissan | Pathfinder | — | — | Front Upper | — |
| 2005 | Nissan | Xterra | — | — | Front Upper | — |
