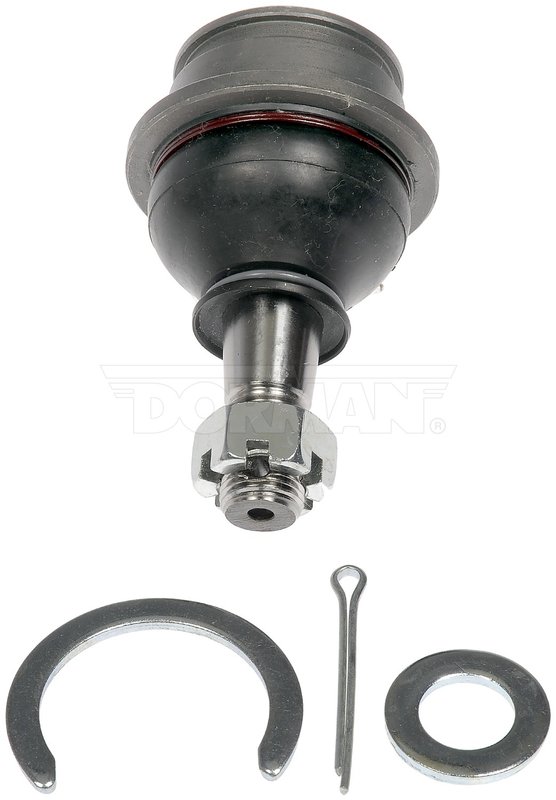

MAS Chassis BJ74495 Suspension Ball Joint - Front Lower
| Brand | MAS Chassis BJ74495 |
|---|---|
| Position | Front Lower |
| Adjustable | No |
| Attachment Type | Taper |
| Bearing Material | Steel |
| Bolts/Studs Included | Yes |
| Castle Nut Included | Yes |
| Cotter Pin Hole | Yes |
| Dust Boot Material | Rubber |
| Greaseable | No |
| Housing Press Fit Diameter | 47.3 mm |
| Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Mounting Type | Pressed |
| Package Contents | 1 Ball Joint; 1 Castle Nut; 1 Cotter Pin; 1 Washer; 1 C Clip |
| Stud Thread Diameter | 16 |
| Stud Type | Tapered |
| Suspension Grade Type | Standard |
| Thread Pitch | 1.5 |
| Fits | Toyota · 19 vehicles |
OE replacement. Precision-engineered and rigorously tested for reliable original-equipment fit.
Steel construction. Built with a rubber dust boot and steel bearing for dependable service.
Pressed mounting. Includes a tapered stud, castle nut, and cotter pin for secure installation.
Cross-references Delphi TC2437, 1025012 and 4333009510 for the same application. See all 5.
Front Lower Ball Joint for Toyota Hilux
MAS Chassis BJ74495 is a steel suspension ball joint built for the front lower position on the Toyota Hilux. It is a direct replacement for 2006-2024 Toyota Hilux applications and is engineered to match the original equipment mounting style for a precise service fit.
- Fits 2006-2024 Toyota Hilux, front lower
- Steel housing and steel bearing material
- Pressed mounting type with tapered stud attachment
- Stud thread diameter: 16 with 1.5 thread pitch
- Rubber dust boot for joint protection
- Castle nut, cotter pin, washer, C clip, and mounting hardware included
- Non-adjustable, standard suspension grade type
- Greaseable: No
OE-Style Replacement Details
This MAS Chassis BJ74495 suspension ball joint is precision-engineered and tested for reliable replacement service on the Toyota Hilux front lower suspension. The pressed-in design, tapered stud, and included hardware support a proper OE-style installation, while the rubber dust boot helps protect the joint from road contamination. This part cross-references Delphi TC2437 for the same application.
Common Repair Symptoms
- Front-end looseness or play in the suspension
- Clunking or knocking from the lower front suspension
- Uneven tire wear related to worn ball joint movement
- Steering instability or wandering on a Toyota Hilux
- Inspection failure due to excessive joint wear
Installation Notes
Fits 2006-2024 Toyota Hilux, front lower. This part uses a pressed mounting design and a tapered stud, so proper removal and installation tools are recommended. Confirm housing press fit diameter, stud thread size, and vehicle position before installation. BJ74495 is a direct-fit suspension ball joint for the specified Toyota Hilux front lower application.
Quality Assurance
MAS Chassis manufactures this ball joint as a standard suspension replacement component for the listed Toyota Hilux applications. The part is built from steel with a rubber dust boot and supplied with the specified retaining and fastening components for service installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2024 | Toyota | Hilux | Front Lower | — |
| 2023 | Toyota | Hilux | Front Lower | — |
| 2022 | Toyota | Hilux | Front Lower | — |
| 2021 | Toyota | Hilux | Front Lower | — |
| 2020 | Toyota | Hilux | Front Lower | — |
| 2019 | Toyota | Hilux | Front Lower | — |
| 2018 | Toyota | Hilux | Front Lower | — |
| 2017 | Toyota | Hilux | Front Lower | — |
| 2016 | Toyota | Hilux | Front Lower | — |
| 2015 | Toyota | Hilux | Front Lower | — |
| 2014 | Toyota | Hilux | Front Lower | — |
| 2013 | Toyota | Hilux | Front Lower | — |
| 2012 | Toyota | Hilux | Front Lower | — |
| 2011 | Toyota | Hilux | Front Lower | — |
| 2010 | Toyota | Hilux | Front Lower | — |
| 2009 | Toyota | Hilux | Front Lower | — |
| 2008 | Toyota | Hilux | Front Lower | — |
| 2007 | Toyota | Hilux | Front Lower | — |
| 2006 | Toyota | Hilux | Front Lower | — |
