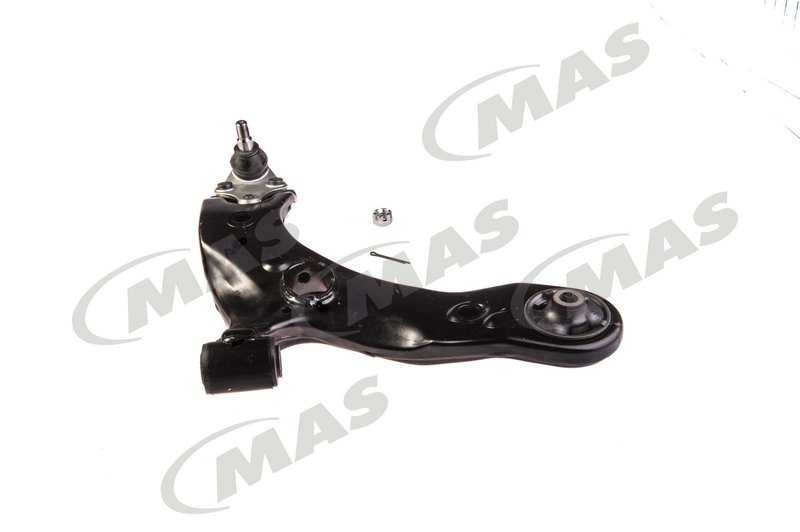

MAS Chassis CB71024 Suspension Control Arm and Ball Joint Assembly - Front Right Lower
| Brand | MAS Chassis CB71024 |
|---|---|
| Position | Front Right Lower |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt in |
| Ball Joint Stud Type | Threaded |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Control Arm Maximum Width | 317.9 |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14 |
| Control Arm Maximum Length | 388.1 |
| Bushing Material | Rubber |
| Ball Joint Included | Yes |
| Ball Joint Installed | Yes |
| Control Arm Type | Stamped |
| Grade Type | Regular |
| Mounting Hole Diameter | 16.2 mm |
| Package Contents | 1 control arm; 1 ball joint; 1 castle nut; 1 cotter pin |
| Fits | Lexus, Scion, and Toyota · 32 vehicles |
Direct replacement. Matches original equipment fit and function for straightforward installation.
Stamped steel construction. Provides a durable control arm with a black finish and rubber bushings.
Ball joint included. Comes assembled with a bolt-in, threaded ball joint and mounting hardware.
Cross-references Delphi TC2283, Mevotech Supreme CMS861114 and 2606698 for the same application. See all 6.
Front Right Lower Control Arm Assembly
MAS Chassis CB71024 is a direct replacement suspension control arm and ball joint assembly for specific Toyota, Scion, and Lexus front right lower applications. It is built for OE-style fitment and consistent suspension geometry, helping maintain smooth ride quality and directional stability.
Compatible with 2008-2015 Scion xB, 2011-2016 Scion tC, 2012-2018 Toyota Prius V, 2016-2020 Toyota Mirai, 2017-2018 Toyota Corolla iM, 2016 Scion iM, and 2010-2012 Lexus HS250h, front right lower.
- Direct replacement control arm and ball joint assembly
- Stamped steel control arm with black finish
- Ball joint installed with threaded stud and bolt-in mounting type
- Rubber bushings included for OE-style isolation
- Mounting hardware included for installation
- No grease fitting; regular-grade construction
- Part number CB71024 for catalog and cross-reference use
Built For OE-Style Suspension Geometry
This MAS Chassis suspension control arm assembly is engineered as a replacement for the original equipment unit on the listed front right lower positions. The stamped steel arm, installed ball joint, and rubber bushings are selected to support predictable suspension movement, steering response, and road feel. CB71024 is a practical choice when replacing a worn lower control arm on a Toyota Mirai, Corolla iM, Prius V, Scion iM, Scion tC, Scion xB, or Lexus HS250h.
This part cross-references Delphi TC2283 for the same application.
Common Problems This Part Can Address
- Clunking or knocking from the front suspension
- Excessive play from a worn ball joint
- Uneven tire wear caused by loose suspension geometry
- Steering wander or reduced directional stability
- Cracked or deteriorated control arm bushings
Installation Notes
Verify vehicle year, make, model, and front right lower position before installation. Inspect adjacent suspension components, alignment angles, and fasteners during replacement. Because the ball joint is installed and the assembly includes mounting hardware, installation is streamlined compared with rebuilding the arm separately. A professional wheel alignment is recommended after replacement.
Quality Assurance
MAS Chassis uses an industry-focused evaluation process for this control arm and ball joint assembly to support consistent ride quality and predictable handling characteristics. Part number CB71024 is built as a direct replacement for the listed OE applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2020 | Toyota | Mirai | Front Right Lower | — |
| 2019 | Toyota | Mirai | Front Right Lower | — |
| 2018 | Toyota | Corolla iM | Front Right Lower | — |
| 2018 | Toyota | Mirai | Front Right Lower | — |
| 2018 | Toyota | Prius V | Front Right Lower | — |
| 2017 | Toyota | Corolla iM | Front Right Lower | — |
| 2017 | Toyota | Mirai | Front Right Lower | — |
| 2017 | Toyota | Prius V | Front Right Lower | — |
| 2016 | Scion | iM | Front Right Lower | — |
| 2016 | Scion | tC | Front Right Lower | — |
| 2016 | Toyota | Mirai | Front Right Lower | — |
| 2016 | Toyota | Prius V | Front Right Lower | — |
| 2015 | Scion | tC | Front Right Lower | — |
| 2015 | Scion | xB | Front Right Lower | — |
| 2015 | Toyota | Prius V | Front Right Lower | — |
| 2014 | Scion | tC | Front Right Lower | — |
| 2014 | Scion | xB | Front Right Lower | — |
| 2014 | Toyota | Prius V | Front Right Lower | — |
| 2013 | Scion | tC | Front Right Lower | — |
| 2013 | Scion | xB | Front Right Lower | — |
| 2013 | Toyota | Prius V | Front Right Lower | — |
| 2012 | Lexus | HS250h | Front Right Lower | — |
| 2012 | Scion | tC | Front Right Lower | — |
| 2012 | Scion | xB | Front Right Lower | — |
| 2012 | Toyota | Prius V | Front Right Lower | — |
| 2011 | Lexus | HS250h | Front Right Lower | — |
| 2011 | Scion | tC | Front Right Lower | — |
| 2011 | Scion | xB | Front Right Lower | — |
| 2010 | Lexus | HS250h | Front Right Lower | — |
| 2010 | Scion | xB | Front Right Lower | — |
| 2009 | Scion | xB | Front Right Lower | — |
| 2008 | Scion | xB | Front Right Lower | — |
