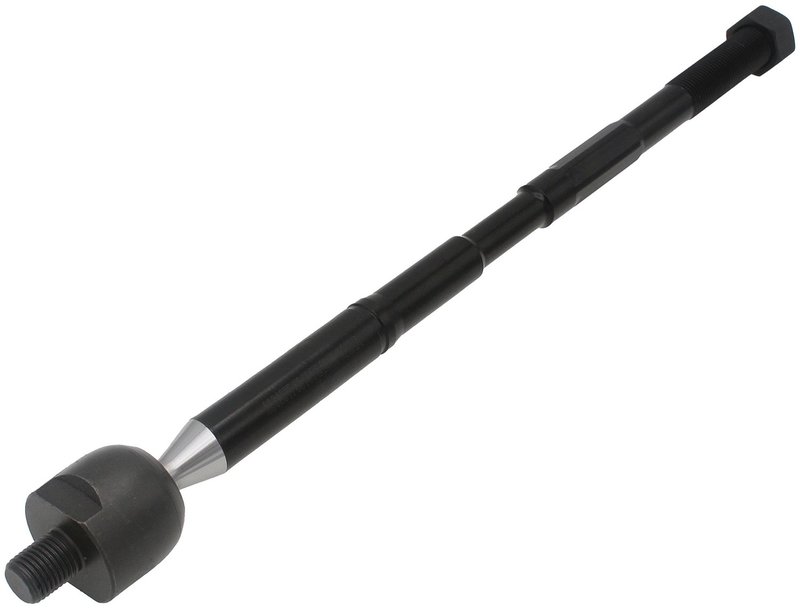

MAS Chassis TI75230 Steering Tie Rod End - Front Inner
| Brand | MAS Chassis TI75230 |
|---|---|
| Position | Front Inner |
| Length | 330 |
| Color | Black |
| Color | Negro |
| Color | Noir |
| End 1 Gender | Macho |
| End 1 Gender | Male |
| End 2 Gender | Macho |
| End 2 Gender | Male |
| Finish | Coated |
| Finish | Revestidos |
| Pre-Greased | Oui |
| Pre-Greased | Sí |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Grease Fitting Included | Non |
| Dust Boot Included | No |
| Dust Boot Included | Non |
| Width | 35.5 |
| Type | Recto |
| Type | Straight |
| Mounting Hardware Included | Oui |
| Mounting Hardware Included | Sí |
| Mounting Hardware Included | Yes |
| Height | 35.5 |
| Grade Type | Reemplazo estándar |
| Grade Type | Standard |
| Housing Material | Acero |
| Housing Material | Steel |
| Tube Diameter | 18 |
| Adjustable | Oui |
| Fits | Pontiac and Toyota · 26 vehicles |
Direct replacement. OE-style steering tie rod end for specific applications.
Pre-greased design. Arrives ready for service with reduced prep time.
Coated steel housing. Built with a standard replacement construction and threaded stud.
Cross-references Delphi TA5705, Mevotech Original Grade GS86747 and Mevotech Supreme MS86747 for the same application. See all 11.
Steering Tie Rod End Overview
The MAS Chassis TI75230 steering tie rod end is a direct replacement for the original equipment part on specific applications. It is built for smooth, safe steering response and fits front inner applications for Toyota Corolla, Toyota Matrix, and Pontiac Vibe models listed below.
- Direct replacement steering tie rod end for OE-style fitment.
- Adjustable, straight design with a coated steel housing.
- Pre-greased construction for reduced service prep.
- Threaded stud design with right-hand thread direction on both ends.
- Includes mounting hardware.
Fitment Details
Fits 2014-2019 Toyota Corolla, front inner.
Fits 2009-2014 Toyota Matrix, front inner.
Fits 2009-2013 Toyota Corolla, front inner, M16 outer thread; built in North America.
Fits 2009-2010 Pontiac Vibe, front inner.
Product Description
MAS Chassis TI75230 is a standard replacement steering tie rod end engineered for vehicles that require a front inner steering linkage component. The steel housing, polymer bearing material, coated finish, and pre-greased design support consistent steering feel and service-ready installation. This part number, TI75230, is listed for Toyota Corolla and Toyota Matrix applications, along with Pontiac Vibe coverage, and it cross-references Delphi TA5705 for the same application.
Common Issues This Part May Address
- Excessive play or looseness in the steering linkage.
- Uneven steering response caused by worn tie rod components.
- Noisy or rough steering operation from a deteriorated joint.
- Replacement needs after inspection reveals wear in the front inner linkage.
Installation Notes and Quality
Verify thread direction, dimensions, and application notes before installation. The TI75230 is a straight, adjustable tie rod end with threaded ends and included mounting hardware. MAS Chassis states this part has undergone an industry-leading evaluation process to support smooth, safe operation.
| Year | Make | Model | Submodel | Body Type | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2019 | Toyota | Corolla | — | Sedan | — | — | — | Front Inner | — |
| 2018 | Toyota | Corolla | — | — | — | — | — | Front Inner | — |
| 2017 | Toyota | Corolla | — | — | — | — | — | Front Inner | — |
| 2016 | Toyota | Corolla | — | — | — | — | — | Front Inner | — |
| 2015 | Toyota | Corolla | — | — | — | — | — | Front Inner | — |
| 2014 | Toyota | Corolla | — | — | — | — | — | Front Inner | — |
| 2014 | Toyota | Matrix | — | — | — | — | — | Front Inner | — |
| 2013 | Toyota | Corolla | — | — | — | — | — | Front Inner | M16 Outer Thread; Built in North America |
| 2013 | Toyota | Matrix | — | — | — | 1.8L | L4 | Front Inner | — |
| 2013 | Toyota | Matrix | S | — | FWD | 2.4L | L4 | Front Inner | — |
| 2012 | Toyota | Corolla | — | — | — | — | — | Front Inner | M16 Outer Thread; Built in North America |
| 2012 | Toyota | Matrix | — | — | — | 1.8L | L4 | Front Inner | — |
| 2012 | Toyota | Matrix | S | — | FWD | 2.4L | L4 | Front Inner | — |
| 2011 | Toyota | Corolla | — | — | — | — | — | Front Inner | M16 Outer Thread; Built in North America |
| 2011 | Toyota | Matrix | — | — | — | 1.8L | L4 | Front Inner | — |
| 2011 | Toyota | Matrix | S | — | FWD | 2.4L | L4 | Front Inner | — |
| 2010 | Pontiac | Vibe | — | — | — | 1.8L | L4 | Front Inner | — |
| 2010 | Pontiac | Vibe | Base | — | FWD | 2.4L | L4 | Front Inner | — |
| 2010 | Toyota | Corolla | — | — | — | — | — | Front Inner | M16 Outer Thread; Built in North America |
| 2010 | Toyota | Matrix | — | — | — | 1.8L | L4 | Front Inner | — |
| 2010 | Toyota | Matrix | S | — | FWD | 2.4L | L4 | Front Inner | — |
| 2010 | Toyota | Matrix | XR | — | FWD | 2.4L | L4 | Front Inner | — |
| 2009 | Pontiac | Vibe | — | — | — | 1.8L | L4 | Front Inner | — |
| 2009 | Pontiac | Vibe | Base | — | FWD | 2.4L | L4 | Front Inner | — |
| 2009 | Toyota | Corolla | — | — | — | — | — | Front Inner | M16 Outer Thread; Built in North America |
| 2009 | Toyota | Matrix | — | — | — | 1.8L | L4 | Front Inner | — |
