OE Quality
60-Day Returns
Maval

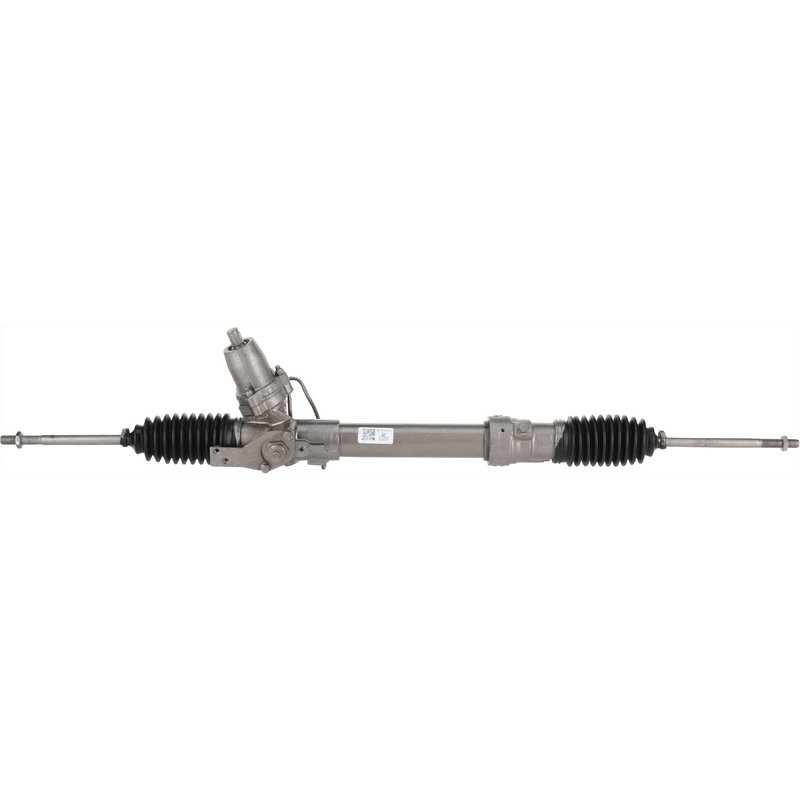

Remanufactured Rack and PinionMaval 9006M Rack and Pinion Assembly
| Brand | Maval 9006M |
|---|---|
| Total Turns Lock To Lock | 2.75 |
| Distance Between Mounting Holes | 19.75 |
| Distance Between Mounting Holes | 501.65 |
| Input Shaft Diameter | 0.75 |
| Input Shaft Diameter | 19.05 |
| Input Shaft Length | 1 |
| Input Shaft Length | 25.4 |
| Pressure Port Thread Size | 5/8x18 |
| Rack Length | 1149.35 |
| Rack Length | 45.25 |
| Return Port Thread Size | 5/8x18 |
| Product line | Remanufactured Rack and Pinion |
| Fits | Jaguar · 29 vehicles |
Cross-references Anchor 3018, 26-1999 and CBC-1718N for the same application. See all 3.
$528.67Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Rack and Pinion Assembly options
Maval 9006M Rack and Pinion Assembly
This part fits 29 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Notes |
|---|---|---|---|
| 1995 | Jaguar | XJS | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1994 | Jaguar | XJ6 | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1993 | Jaguar | XJS | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1992 | Jaguar | XJ12 | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1992 | Jaguar | XJS | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1991 | Jaguar | XJ12 | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1991 | Jaguar | XJS | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1990 | Jaguar | XJ12 | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1990 | Jaguar | XJS | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1989 | Jaguar | XJS | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1988 | Jaguar | XJS | There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1987 | Jaguar | XJ12 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1987 | Jaguar | XJ6 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1987 | Jaguar | XJS | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1986 | Jaguar | XJ12 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1986 | Jaguar | XJ6 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1986 | Jaguar | XJS | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1985 | Jaguar | XJ12 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1985 | Jaguar | XJ6 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1985 | Jaguar | XJS | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1984 | Jaguar | XJ12 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1984 | Jaguar | XJ6 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1984 | Jaguar | XJS | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1983 | Jaguar | XJ12 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1983 | Jaguar | XJ6 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1983 | Jaguar | XJS | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1982 | Jaguar | XJ12 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1982 | Jaguar | XJ6 | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| 1982 | Jaguar | XJS | Changed from 16mm to 14mm - start w/VIN345390 on X6 and VIN107865 on XJS; There are three design steering units, all three are interchangeable provided the correct steering shaft coupling and outer tie rods are installed. Refer to instruction sheet 655040. This unit has 14mm tie rod threads. Due to random pinion location on the OEM steering gear it may be necessary to remove and re-center the steering wheel after installation. Refer to instruction sheet 655260.; Remanufactured Rack and Pinion |
| No rows match your filter. | |||
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 301826-1999CBC-1718N
