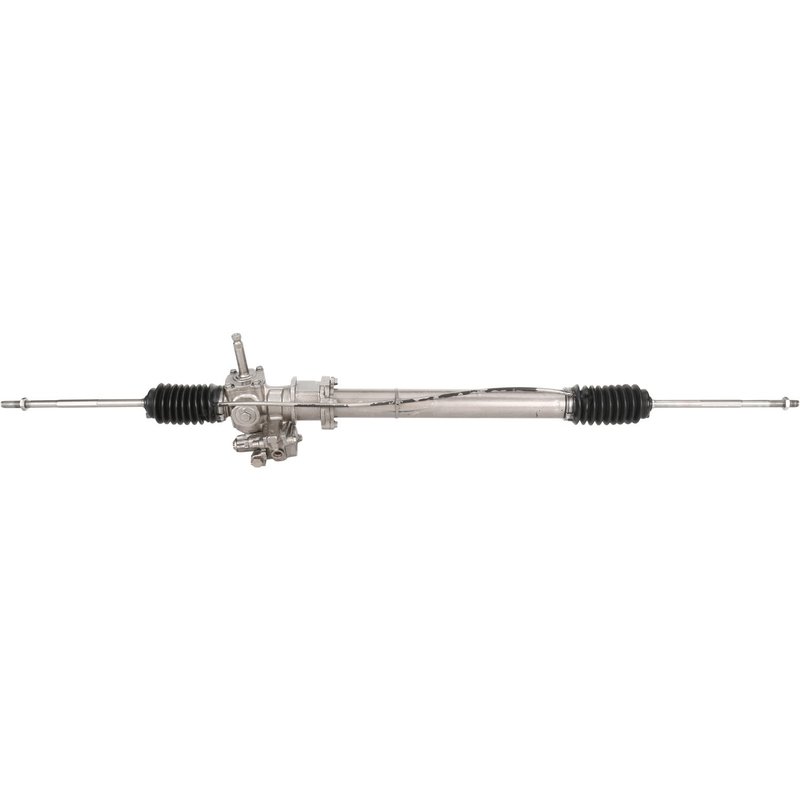

Maval 9029M Rack and Pinion Assembly
| Brand | Maval 9029M |
|---|---|
| Total Turns Lock To Lock | 2.75 |
| Inner Tie Rods Included | Yes |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes | 0 |
| Hose Port Type | Seat |
| Input Shaft Diameter | 0.59 |
| Input Shaft Diameter | 14.94 |
| Input Shaft Length | 2.75 |
| Input Shaft Length | 69.85 |
| Number of Mounting Holes | 1 |
| Pressure Port Thread Size | M14 x 1.5 |
| Rack Length | 1196.98 |
| Rack Length | 47.13 |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 1.64 |
| Thread Length | 41.76 |
| Product line | Remanufactured Rack and Pinion |
| Fits | Honda · 4 vehicles |
Remanufactured assembly. Restored to deliver dependable steering performance.
Steel and aluminum construction. Combines strength with lighter weight for responsive handling.
Inner tie rods included. Saves time with a more complete steering solution.
Cross-references Anchor 3021, Cardone Reman 26-1751 and 53601-SA5-675 for the same application. See all 3.
Remanufactured Steering Rack for Honda Accord
This Maval remanufactured rack and pinion assembly is built for 1982-1985 Honda Accord applications with power steering. Part number 9029M is a direct-fit steering gear replacement for drivers restoring steering response, fluid control, and rack operation on these model years.
The Maval Remanufactured Rack and Pinion line focuses on rebuilt steering components for OE-style service replacement. This 9029M unit is configured with inner tie rods included and uses steel and aluminum casting materials for the assembly.
Key Features
- Remanufactured rack and pinion assembly
- Fits 1982-1985 Honda Accord, N/A
- Inner tie rods included
- Total turns lock to lock: 2.75
- Rack length: 47.13 in. (1196.98 mm)
- Input shaft diameter: 0.59 in. (14.94 mm)
- Input shaft length: 2.75 in. (69.85 mm)
- Pressure port thread size: M14 x 1.5
- Return port thread size: M16 x 1.5
- Hose port type: Seat
Detailed Description
Maval 9029M is a remanufactured rack and pinion assembly for 1982-1985 Honda Accord steering systems. It is built with a 2.75 lock-to-lock turn ratio, a 47.13-inch rack length, and OE-style hydraulic port sizing for the pressure and return lines. This part cross-references Cardone Reman 26-1751 and Anchor 3021 for the same application.
Use this rack and pinion when servicing a Honda Accord steering gear that requires a remanufactured replacement with inner tie rods included. The 9029M part number is also referenced by OE interchange 53601-SA5-675.
What It Helps Repair
- Steering play or looseness in the rack assembly
- Hydraulic fluid leakage at the rack or port connections
- Uneven or inconsistent steering response
- Worn internal rack components on older Honda Accord steering systems
- Noise or binding during steering wheel movement
Installation Notes and Tips
Verify port thread sizes, input shaft dimensions, and rack length before installation. This assembly uses a seat-style hose port and a single mounting hole configuration, so confirm the original steering gear matches these specifications. Use only original Honda power steering fluid, as noted for this application, and align the steering system after installation.
Quality Assurance
This Maval remanufactured rack and pinion is produced as a steering service replacement for the listed Honda Accord applications. The remanufactured construction and included inner tie rods support a direct replacement approach for steering system repair.
| Year | Make | Model | Notes |
|---|---|---|---|
| 1985 | Honda | Accord | Use ONLY original Honda power steering fluid.; Remanufactured Rack and Pinion |
| 1984 | Honda | Accord | Use ONLY original Honda power steering fluid.; Remanufactured Rack and Pinion |
| 1983 | Honda | Accord | Use ONLY original Honda power steering fluid.; Remanufactured Rack and Pinion |
| 1982 | Honda | Accord | Use ONLY original Honda power steering fluid.; Remanufactured Rack and Pinion |
