MavalPart #: 9120M

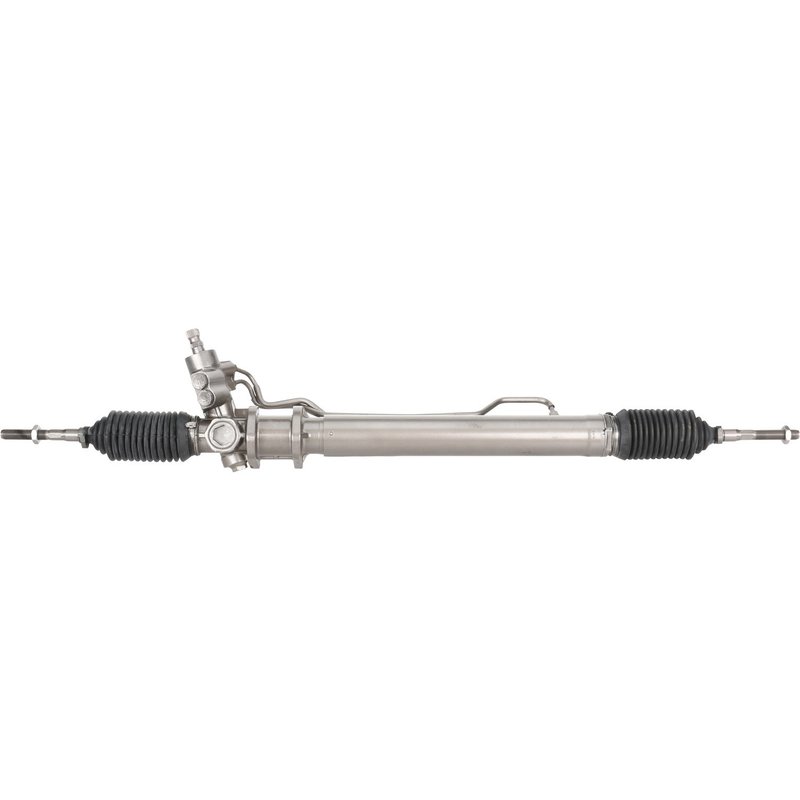

Maval 9120M Rack and Pinion Assembly
⚙️ 10 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$627.17Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦Remanufactured Rack and Pinion
🚗Fitment: Mazda, MPV
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Rack and Pinion Assembly options
Maval 9120M Rack and Pinion Assembly
| Brand | Maval |
| Part Number | 9120M |
| Position | Remanufactured Rack and Pinion |
| Total Turns Lock To Lock | 3.88 |
| Inner Tie Rods Included | Yes |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes | 0 |
| Hose Port Type | O-ring |
| Input Shaft Diameter | 0.75 |
| Input Shaft Diameter | 19.05 |
| Input Shaft Length | 1.25 |
| Input Shaft Length | 31.75 |
| Number of Mounting Holes | 1 |
| Pressure Port Thread Size | M16 x 1.5 |
| Rack Length | 1009.65 |
| Rack Length | 39.75 |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 2.07 |
| Thread Length | 52.63 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 1998 | Mazda | MPV | RWD | N/A | The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 1997 | Mazda | MPV | RWD | N/A | The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 1996 | Mazda | MPV | RWD | N/A | The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 1995 | Mazda | MPV | RWD | N/A | The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 1994 | Mazda | MPV | RWD | N/A | The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 1993 | Mazda | MPV | RWD | N/A | The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 1992 | Mazda | MPV | RWD | N/A | The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 1991 | Mazda | MPV | RWD | N/A | The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 1990 | Mazda | MPV | RWD | N/A | The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 1989 | Mazda | MPV | RWD | N/A | The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in Top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
26-20023043LA01-32-110B
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
