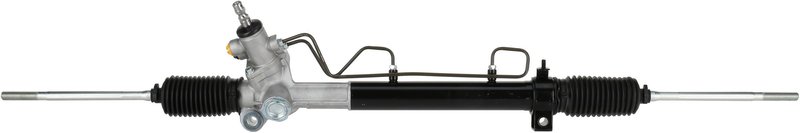

Maval 9164MN Rack and Pinion Assembly
| Brand | Maval 9164MN |
|---|---|
| Type | Hydraulic |
| Total Turns Lock To Lock | 3.06 |
| End To End Length | 51.641 in. |
| Tie Rod End Thread Diameter | M15 x 1.50 |
| Travel Length | 5.812 in. |
| Product line | New Rack and Pinion Assembly |
| Fits | Toyota · 8 vehicles |
New assembly. Hydraulic rack and pinion for smooth, responsive steering.
Rack and pinion assembly with 3.06 turns lock to lock.
M15 x 1.50 tie rod threads for secure connection.
Cross-references Cardone Reman 26-1690, CSF 2027 and 3740N for the same application. See all 15.
Maval 9164MN Rack and Pinion for Toyota Camry
The Maval 9164MN is a hydraulic rack and pinion assembly for 1992-1999 Toyota Camry models. Built as a New Rack and Pinion Assembly, it is specified with 3.06 total turns lock to lock, a 51.641 in. end-to-end length, M15 x 1.50 tie rod end thread diameter, and 5.812 in. travel length.
For Toyota Camry steering repair, this rack and pinion assembly provides the core hydraulic steering gear needed to restore direct steering response. The Maval 9164MN part number is a useful reference when matching a replacement rack for 1992-1999 Toyota Camry applications.
Key Features
- Hydraulic rack and pinion assembly
- 3.06 total turns lock to lock
- 51.641 in. end-to-end length
- M15 x 1.50 tie rod end thread diameter
- 5.812 in. travel length
- Fits 1992-1999 Toyota Camry, N/A
- Maval 9164MN replacement part number
Product Details
This Maval New Rack and Pinion Assembly is built for Toyota Camry steering systems that use hydraulic assist. The listed dimensions and thread specification help confirm proper replacement selection, especially when comparing the rack housing length, steering travel, and tie rod end connection size. The Maval 9164MN is also cross-referenced to Cardone Reman 26-1690 for the same application.
Compatible With 1992-1999 Toyota Camry, N/A. Use the part number 9164MN when verifying the correct steering rack for your vehicle, and compare the hydraulic configuration and dimensional specs before installation.
Common Repair Uses
- Steering play or looseness in the Toyota Camry
- Hydraulic steering rack wear or internal leakage
- Uneven steering response during turning
- Replacement after damaged tie rod end threads or housing wear
- Restoring steering feel on 1992-1999 Toyota Camry models
Installation Notes
Confirm hydraulic line routing, mounting points, and tie rod thread size before installation. Compare the removed rack to the Maval 9164MN for overall length, travel, and steering input configuration to ensure correct application match. After installation, perform a professional alignment and inspect the hydraulic system for leaks and proper fluid condition.
Quality Assurance
Maval identifies this unit as a New Rack and Pinion Assembly, with published fitment for 1992-1999 Toyota Camry models and application-specific dimensional data to support accurate replacement selection.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 1999 | Toyota | Camry | 2.2L | L4 | New Rack and Pinion Assembly |
| 1998 | Toyota | Camry | 2.2L | L4 | New Rack and Pinion Assembly |
| 1997 | Toyota | Camry | 2.2L | L4 | New Rack and Pinion Assembly |
| 1996 | Toyota | Camry | 2.2L | L4 | New Rack and Pinion Assembly |
| 1995 | Toyota | Camry | 2.2L | L4 | New Rack and Pinion Assembly |
| 1994 | Toyota | Camry | 2.2L | L4 | New Rack and Pinion Assembly |
| 1993 | Toyota | Camry | 2.2L | L4 | New Rack and Pinion Assembly |
| 1992 | Toyota | Camry | 2.2L | L4 | New Rack and Pinion Assembly |
| No rows match your filter. | |||||
