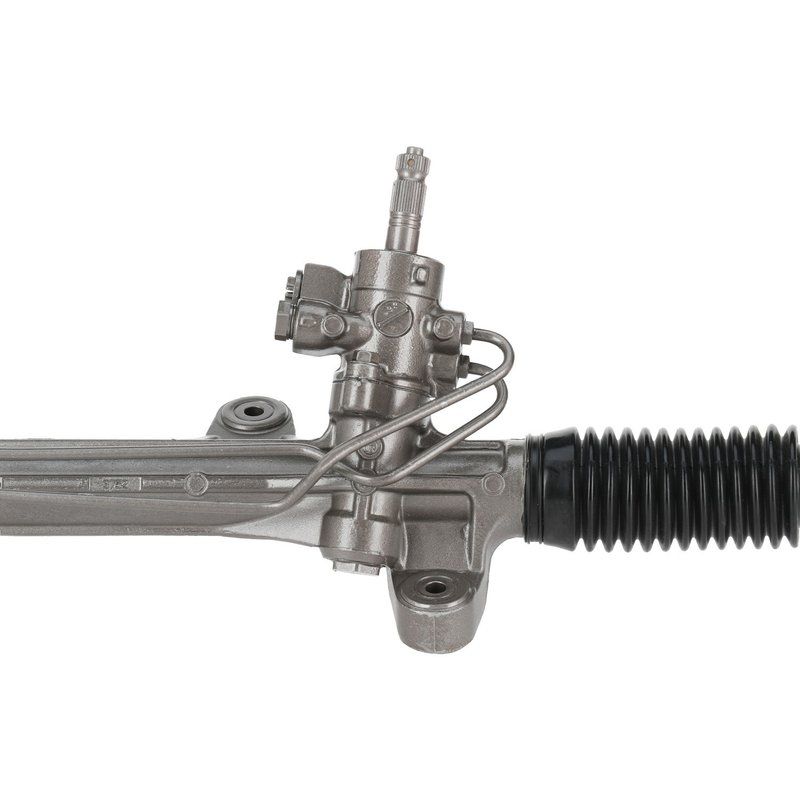

Maval 93170M Rack and Pinion Assembly

Overview of Maval Remanufactured Rack and Pinion Assembly

The Maval Remanufactured Rack and Pinion Assembly (Part Number 93170M) is designed specifically for Honda Accord models. This hydraulic rack and pinion unit offers precise steering control and includes inner tie rods for a complete replacement solution.

• Hydraulic type rack and pinion assembly
• Includes inner tie rods for convenience
• Two mounting holes with 3.92 inches (99.568 mm) spacing
• Total turns lock to lock: 2.75
• Input shaft diameter: 0.692 inches (17.579 mm)
• Input shaft length: 1.375 inches (34.925 mm)
• Pressure and return port thread size: M16x1.50
• Rack length: 43.125 inches (1095.375 mm)
• Remanufactured quality with tested components

Details on the Remanufactured Rack and Pinion Product Line

The Maval Remanufactured Rack and Pinion product line focuses on restoring steering assemblies to meet original equipment specifications. Each unit undergoes a thorough remanufacturing process to ensure hydraulic functionality and structural integrity. This line provides a cost-effective alternative to new parts while maintaining compatibility and performance for Honda Accord vehicles.

Technical Description and Specifications

This remanufactured rack and pinion assembly features a hydraulic design optimized for smooth steering response. The assembly includes two mounting holes spaced 3.92 inches apart, ensuring proper fitment and secure installation. The input shaft measures 0.692 inches in diameter and 1.375 inches in length, matching OEM dimensions for direct replacement. The total steering turns from lock to lock is 2.75, providing precise control. Both pressure and return ports use M16x1.50 thread sizes, compatible with standard hydraulic lines. The rack length is 43.125 inches, suitable for the Honda Accord's steering system requirements.

Compatible Vehicles and Common Applications

• Compatible with Honda Accord models requiring hydraulic rack and pinion replacement
• Addresses steering issues such as excessive play or looseness
• Resolves hydraulic leaks in the steering gear assembly
• Corrects uneven or difficult steering response
• Replaces worn or damaged inner tie rods included in the assembly

Installation Notes and Tips

When installing the Maval 93170M rack and pinion assembly, ensure the mounting holes align precisely with the vehicle frame using the 3.92-inch spacing. Verify the input shaft dimensions match the steering column connection. Bleed the hydraulic system thoroughly after installation to remove air and restore proper steering function. It is recommended to inspect related components such as tie rods and power steering lines during replacement.

Quality Assurance and Warranty Information

This remanufactured rack and pinion assembly undergoes rigorous testing to meet performance standards comparable to original equipment. The inclusion of inner tie rods ensures a comprehensive replacement. While specific warranty details are not provided, remanufactured parts typically come with limited warranties covering defects in materials and workmanship. Confirm warranty terms with the supplier prior to installation.
