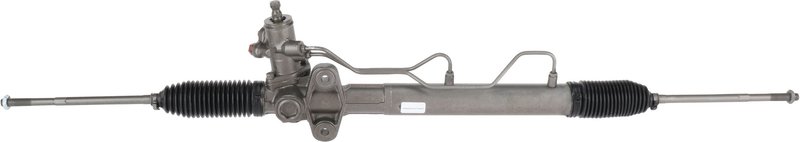

Maval 93172M Rack and Pinion Assembly

Maval Remanufactured Rack and Pinion for Hyundai Santa Fe

The Maval 93172M remanufactured rack and pinion assembly is built for 2003-2006 Hyundai Santa Fe applications. It is a direct steering gear replacement with inner tie rods included and OE-style port and mounting dimensions for a precise service fit.

Key Features

• Remanufactured rack and pinion assembly from Maval
• Fits 2003-2006 Hyundai Santa Fe, N/A
• Part number 93172M
• Inner tie rods included
• Aluminum casting material
• 2 mounting holes with 3.54 in. / 90 mm spacing
• 2.89 total turns lock to lock
• O-Ring/O-Ring hose port type
• Pressure port thread size: M14 x 1.5
• Return port thread size: M16 x 1.5

Product Details

This Maval remanufactured rack and pinion is engineered for steering service on the 2003-2006 Hyundai Santa Fe. The assembly measures 25.12 in. rack length, uses a 0.65 in. / 16.6 mm input shaft diameter, and has a 1.11 in. / 28.2 mm input shaft length. With aluminum construction and OE-style port threading, 93172M is specified for direct replacement use in the steering system. This part cross-references Cardone Reman 26-2413 for the same application.

Common Issues This Part Can Address

• Excessive steering play or looseness
• Fluid leakage at rack ports or seals
• Rough, inconsistent steering response
• Worn internal steering gear components
• Noise or binding during steering input

Installation Notes and Tips

Verify the mounting hole spacing, port thread sizes, and input shaft dimensions before installation. Inspect hydraulic lines, tie rod ends, and related steering components during service to confirm the replacement rack is installed into a clean, leak-free system. After installation, perform a professional wheel alignment and check steering wheel center position.

Quality Assurance

Maval remanufactured steering components are rebuilt to restore proper function for service replacement. Confirm vehicle application by year, make, and model before ordering the 93172M rack and pinion assembly.
