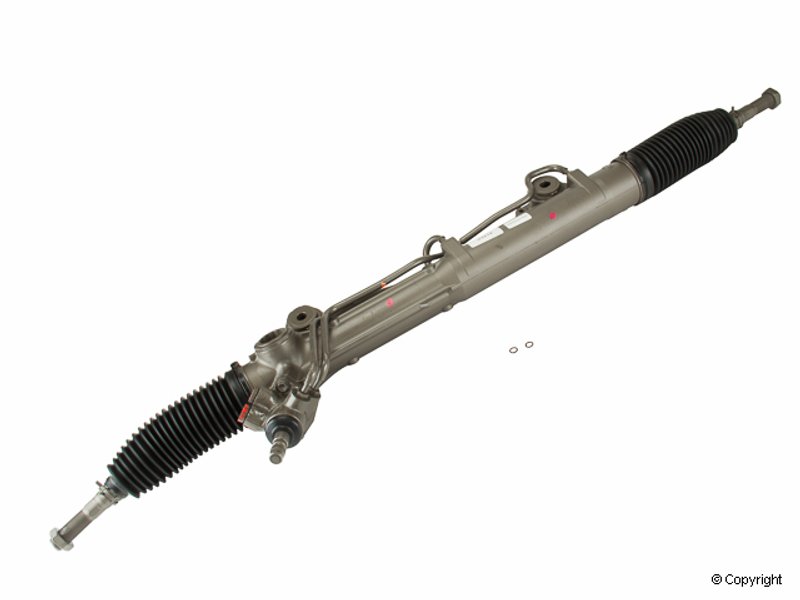

Maval 93219M Rack and Pinion Assembly

Overview of Maval Remanufactured Rack and Pinion for Toyota Sequoia

The Maval Remanufactured Rack and Pinion Assembly (Part Number 93219M) is designed specifically for Toyota Sequoia models. This steering gear component ensures precise control and reliable performance by incorporating key features tailored to the vehicle's steering system requirements.

• Compatible with Toyota Sequoia
• Includes inner tie rods for complete assembly
• Aluminum casting material for durability and weight reduction
• Two mounting holes with 16.13 mm spacing for secure fitment
• Input shaft diameter of 18.14 mm and length of 55.55 mm
• Pressure and return port thread sizes M16 x 1.5 and M17 x 1.5 respectively
• Total turns lock to lock: 3.69 for responsive steering
• Banjo/washer type hose port for fluid connections

Details on the Remanufactured Rack and Pinion Product Line

The Remanufactured Rack and Pinion line by Maval offers a cost-effective alternative to new steering assemblies by restoring original components to meet strict quality standards. This product line focuses on delivering reliable steering performance through thorough inspection, replacement of worn parts, and precision reassembly. The 93219M model benefits from this process, ensuring compatibility and function for Toyota Sequoia vehicles.

Technical Description and Specifications

This rack and pinion assembly features an aluminum casting that balances strength and weight, contributing to overall vehicle handling. The assembly includes two mounting holes spaced at 16.13 mm apart, providing a secure and exact fit. The input shaft measures 18.14 mm in diameter and 55.55 mm in length, designed to interface precisely with the vehicle's steering column. The total steering turns from lock to lock is 3.69, offering a responsive steering feel. Hose ports utilize a banjo/washer type connection, with pressure and return ports threaded at M16 x 1.5 and M17 x 1.5 respectively, ensuring proper hydraulic fluid flow within the power steering system.

Common Applications and Problem Resolution

• Replacement for worn or leaking rack and pinion assemblies on Toyota Sequoia
• Restores precise steering control and reduces play in the steering wheel
• Addresses power steering fluid leaks from damaged ports or seals
• Eliminates unusual noises or stiffness during steering operation
• Corrects uneven or difficult steering response caused by internal wear

Installation Notes and Tips

When installing the Maval 93219M rack and pinion assembly, ensure the mounting holes align precisely with the vehicle frame using the 16.13 mm spacing as a guide. Verify that the input shaft properly engages with the steering column to avoid binding. Replace any worn or damaged inner tie rods included with the assembly to maintain steering integrity. Bleed the power steering system thoroughly after installation to remove air and ensure smooth operation.

Quality Assurance and Warranty

The Maval Remanufactured Rack and Pinion assembly undergoes comprehensive testing to meet OEM specifications for fit and function. The use of aluminum casting material and inclusion of inner tie rods contribute to the assembly's durability. While specific warranty details are not provided, remanufactured parts typically come with limited warranties covering defects in workmanship and materials.
