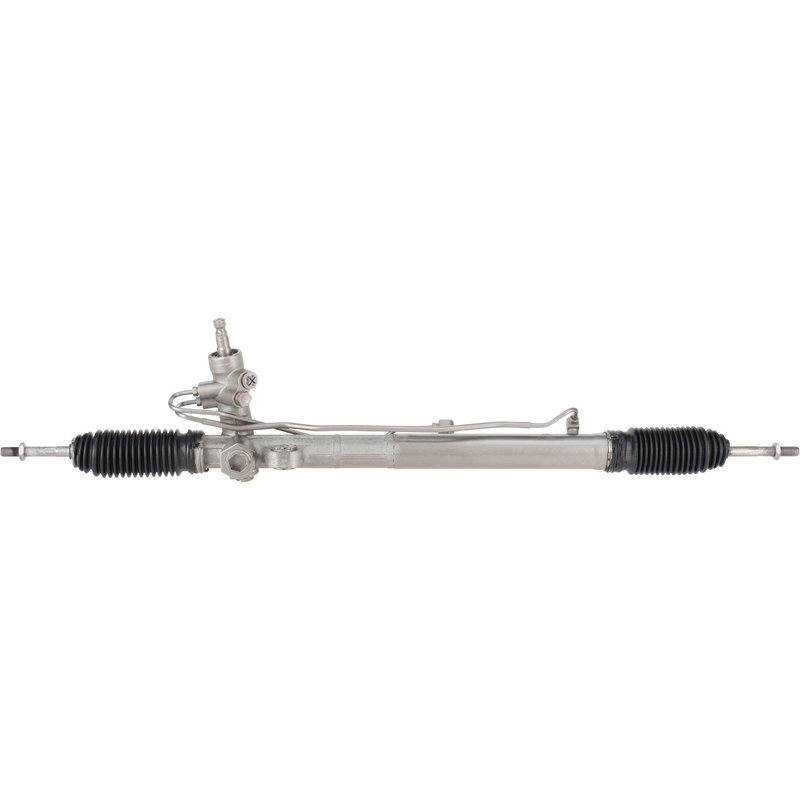

Maval 93274M Rack and Pinion Assembly
| Brand | Maval 93274M |
|---|---|
| Mounting Hole Quantity | 2 |
| Total Turns Lock To Lock | 3.13 |
| Inner Tie Rods Included | Yes |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes | 3.5 |
| Distance Between Mounting Holes | 88.9 |
| Hose Port Type | O-ring |
| Input Shaft Diameter | 0.75 |
| Input Shaft Diameter | 19.05 |
| Input Shaft Length | 2.07 |
| Input Shaft Length | 52.5 |
| Pressure Port Thread Size | M14 x 1.5 |
| Rack Length | 1041.4 |
| Rack Length | 41 |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 1.95 |
| Thread Length | 49.53 |
| Product line | Remanufactured Rack and Pinion |
| Fits | Kia · 17 vehicles |
Remanufactured rack and pinion. A rebuilt steering assembly for a cost-conscious replacement.
Steel and aluminum construction. Combines strength with lighter weight for dependable steering performance.
Inner tie rods included. Saves time by providing key steering components in one assembly.
Cross-references Cardone Reman 26-2423 and 57700-1G150 for the same application. See all 2.
Maval Remanufactured Rack and Pinion for Kia Rio
The Maval 93274M remanufactured rack and pinion assembly is built for steering repair on select Kia Rio and Kia Rio5 models. It is a direct-fit steering gear solution for 2006-2011 Kia Rio and 2006-2011 Kia Rio5 applications, with inner tie rods included and OE-style port and mounting specifications.
Key Features
- Remanufactured rack and pinion assembly from Maval
- Part number 93274M for catalog and cross-reference lookup
- Fits 2007-2011 Kia Rio and 2006-2011 Kia Rio5, N/A position
- Also fits 2006 Kia Rio, N/A position
- Inner tie rods included
- 2 mounting holes with 3.5 in. (88.9 mm) spacing
- 3.13 total turns lock to lock
- O-ring hose port type with M14 x 1.5 pressure port and M16 x 1.5 return port
- Steel and aluminum casting construction
- Rack length: 41 in. (1041.4 mm)
Product Details
The Maval Remanufactured Rack and Pinion Brand Line is focused on steering gear replacement assemblies built to match the original mounting and hydraulic connection layout used on the vehicle. This 93274M unit uses a 0.75 in. (19.05 mm) input shaft diameter, a 2.07 in. (52.5 mm) input shaft length, and a 1.95 in. (49.53 mm) thread length for a precise steering system interface. It cross-references Cardone Reman 26-2423 for the same application. For Kia Rio and Kia Rio5 steering repair, this rack and pinion assembly provides the core dimensions needed for a direct replacement on the listed model years.
What This Part Helps Resolve
- Excessive steering play or loose steering feel
- Fluid leakage from the steering rack housing or ports
- Hard steering or inconsistent steering response
- Internal wear in the rack and pinion assembly
- Noise or binding during steering input
Installation Notes
Verify the housing mount design before installation. The listed Kia Rio and Kia Rio5 applications use two housing mount designs, solid mounts or bushing mounts, and both mount designs interchange. Refer to instruction sheet 656960 before installation. Confirm port thread sizes, mounting hole spacing, and input shaft dimensions against the original unit before final assembly.
Quality Assurance
This Maval remanufactured steering rack is built as a replacement assembly for the specified Kia Rio and Kia Rio5 applications. The remanufactured design and OE-style dimensional specifications support accurate fitment verification during steering system service.
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2011 | Kia | Rio | LX | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2011 | Kia | Rio | SX | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2011 | Kia | Rio5 | — | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2010 | Kia | Rio | LX | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2010 | Kia | Rio | SX | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2010 | Kia | Rio5 | — | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2009 | Kia | Rio | SX | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2009 | Kia | Rio | LX | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2009 | Kia | Rio5 | — | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2008 | Kia | Rio | SX | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2008 | Kia | Rio | LX | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2008 | Kia | Rio5 | — | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2007 | Kia | Rio | LX | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2007 | Kia | Rio | SX | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2007 | Kia | Rio5 | — | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2006 | Kia | Rio | LX | There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
| 2006 | Kia | Rio5 | — | (All Models); There are two different housing mount designs, Solid mounts or Bushing mounts, Both mount designs interchange., Refer to instruction sheet 656960.; Remanufactured Rack and Pinion |
