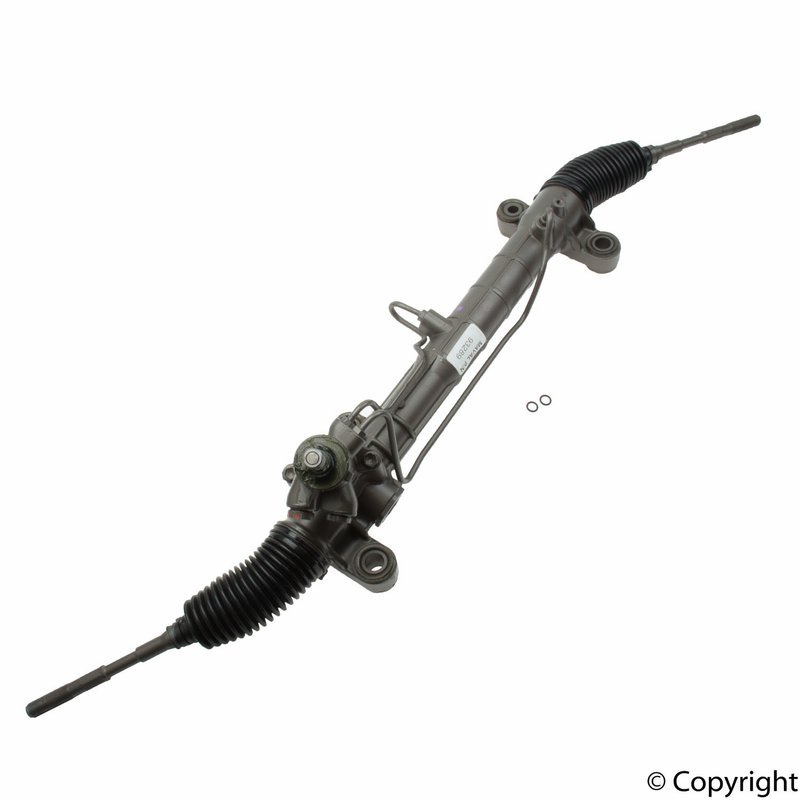

Maval 93289M Rack and Pinion Assembly

Maval Remanufactured Rack and Pinion for Corolla

The Maval 93289M remanufactured rack and pinion assembly is built for steering service on 2005-2006 Toyota Corolla models. It features an aluminum casting, inner tie rods included, and O-ring hose ports for a direct steering system replacement.

As part of Maval’s Remanufactured Rack and Pinion line, this assembly is rebuilt for applications that need a serviceable steering gear with OE-style fitment details. The 93289M is a practical choice when replacing a worn rack on a Toyota Corolla and restoring steering response.

Key Features

• Fits 2005-2006 Toyota Corolla, N/A
• Remanufactured rack and pinion assembly
• Part number 93289M
• Aluminum casting material
• Inner tie rods included
• 4 mounting holes with 13.25 in. / 336.55 mm mounting-hole spacing
• 3.31 total turns lock to lock
• O-ring hose port type
• Pressure port thread size: M16 x 1.5
• Return port thread size: M17 x 1.5

Detailed Description

This Maval rack and pinion assembly is engineered for steering replacement on the 2005-2006 Toyota Corolla. The unit measures 42.94 in. rack length and uses a 0.69 in. input shaft diameter with a 1.54 in. input shaft length, helping match the original steering gear layout. The 93289M also includes inner tie rods and uses four mounting holes for installation alignment.

For buyers searching for a remanufactured Toyota Corolla rack and pinion, steering gear assembly, or 2005-2006 Corolla steering replacement, this part provides the key dimensional and connection details needed for a proper match. This part cross-references Cardone Reman 26-2613 for the same application.

What It Helps Address

• Excessive steering play or looseness
• Fluid leakage from the steering gear
• Rough or inconsistent steering response
• Worn internal rack and pinion components
• Noise or binding during steering input

Installation Notes and Tips

Verify mounting-hole spacing, port thread sizes, and input shaft dimensions before installation. Confirm the vehicle is a 2005-2006 Toyota Corolla and compare the original steering gear to the 93289M before removal. After installation, inspect the hydraulic connections and perform a proper steering and alignment check.

Quality Assurance

Maval’s Remanufactured Rack and Pinion line focuses on rebuilt steering components with application-specific fitment details for service replacement. The 93289M is listed with confirmed Corolla fitment and OE-style connection specifications for a direct steering system repair.
