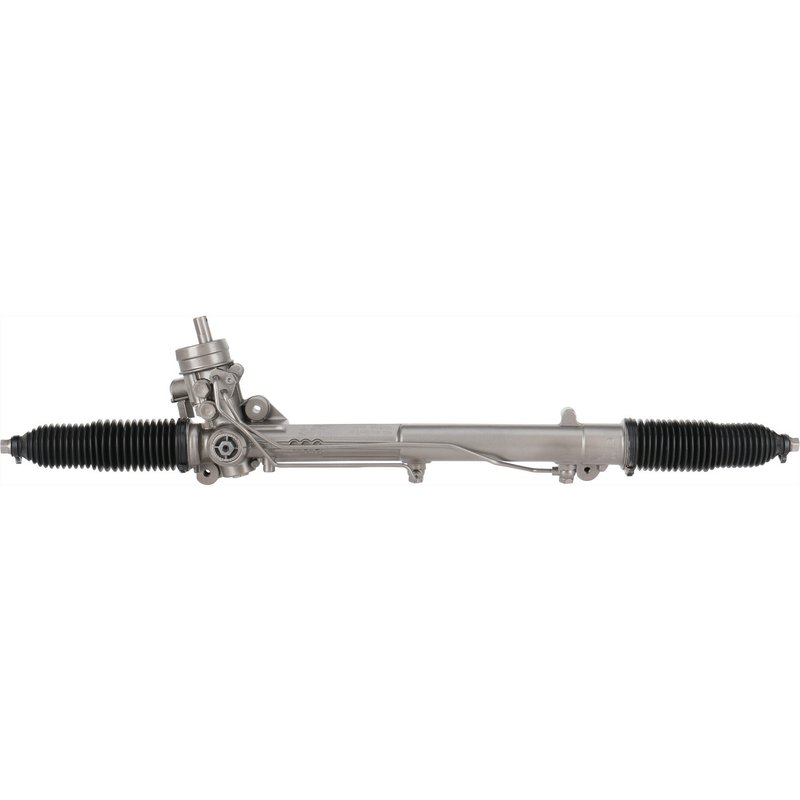

Maval 93307M Rack and Pinion Assembly

Maval 93307M Remanufactured Rack and Pinion

The Maval 93307M is a remanufactured rack and pinion assembly for select Audi A4 and Audi A4 Quattro applications. Built with an aluminum casting and supplied with inner tie rods included, it is configured for vehicles that use an electronic solenoid or EVO component, depending on model year.

Maval’s Remanufactured Rack and Pinion line focuses on direct-fit steering gear replacements for import applications. This 93307M assembly is built around the original steering layout and port configuration, including a banjo hose port, M14 x 1.5 pressure port thread, and M16 x 1.5 return port thread.

Key Features

• Remanufactured rack and pinion assembly for Audi steering systems
• Part number 93307M for catalog and cross-reference lookup
• Inner tie rods included
• Aluminum casting material
• 3 mounting holes with 20.06 in. / 509.6 mm mounting hole spacing
• 2.81 total turns lock to lock
• Banjo hose port type
• Input shaft diameter: 0.79 in. / 20.17 mm
• Rack length: 40.75 in. / 1035.05 mm
• Pressure port thread size: M14 x 1.5
• Return port thread size: M16 x 1.5

Detailed Description

The Maval 93307M rack and pinion assembly is built for steering service on 2005-2009 Audi A4 and Audi A4 Quattro models listed below. It is a remanufactured unit with the correct steering geometry, port layout, and shaft dimensions needed for direct replacement in supported applications. The assembly includes inner tie rods and is specified with an electronic solenoid on 2007-2009 vehicles, while 2005-2006 applications are listed with EVO component coverage.

This part cross-references Cardone Reman 26-2926 for the same application. The 93307M part number is also associated with OE reference 8E1-422-054BX.

Vehicle Fitment

• Fits 2009 Audi A4, N/A — Unit includes electronic solenoid; remanufactured rack and pinion.
• Fits 2009 Audi A4 Quattro, N/A — Unit includes electronic solenoid; remanufactured rack and pinion.
• Fits 2007-2008 Audi A4, N/A — All models; unit is equipped with an electronic solenoid, and this part is included; remanufactured rack and pinion.
• Fits 2007-2008 Audi A4 Quattro, N/A — All models; unit is equipped with an electronic solenoid, and this part is included; remanufactured rack and pinion.
• Fits 2006 Audi A4, N/A — With EVO component; reman rack and pinion assembly.
• Fits 2005-2006 Audi A4 Quattro, N/A — With EVO component; reman rack and pinion assembly.

What It Helps Address

• Excessive steering play or looseness
• Uneven or delayed steering response
• Fluid leakage from the steering gear assembly
• Noise or binding during steering input
• Wear-related failure in the original rack and pinion unit

Installation Notes and Tips

Verify the vehicle’s year, model, and steering configuration before ordering, especially electronic solenoid and EVO-equipped applications. Confirm port style, thread sizes, mounting hole count, and rack length against the original unit to ensure proper replacement. After installation, the steering system should be inspected, filled, and bled according to Audi service procedures, and the front end should be aligned.

Quality Assurance

This remanufactured steering gear is built for direct replacement use in the listed Audi applications and is identified by Maval part number 93307M. The product details and fitment data support accurate selection for Audi A4 and Audi A4 Quattro steering repair.
