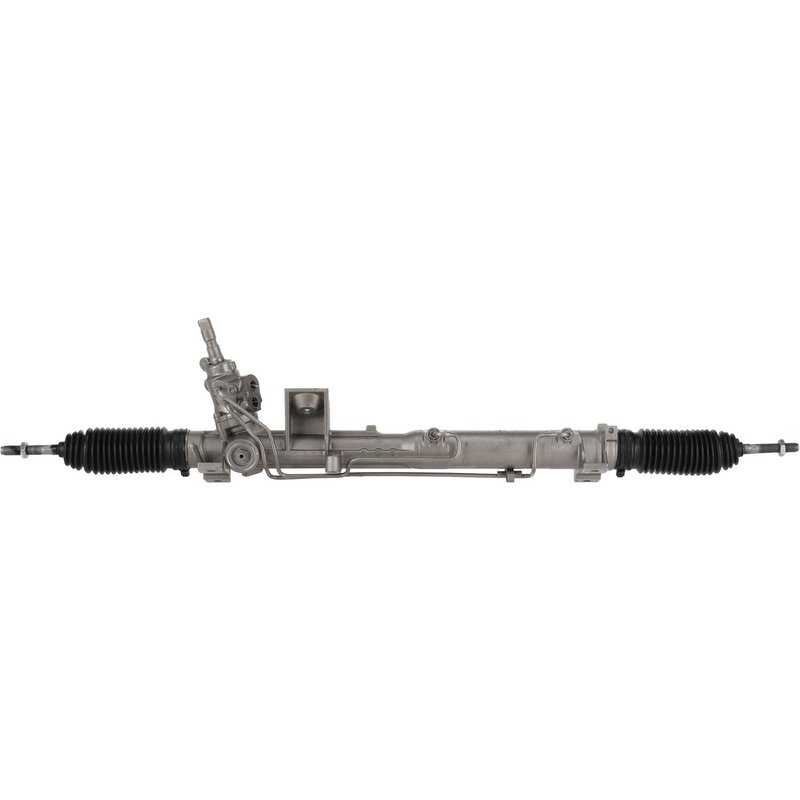

Maval 93313M Rack and Pinion Assembly
Maval Remanufactured Rack and Pinion for Volvo
The Maval 93313M remanufactured rack and pinion is a hydraulic steering gear built for direct replacement in select Volvo applications. It is listed for 2005 Volvo V70 and 2005-2009 Volvo S60 models without speed sensitive steering, with non-threaded push-in pressure and return ports.
Maval’s Remanufactured Rack and Pinion line focuses on steering gear replacement units that match the original hydraulic layout and mounting requirements. This part number, 93313M, is specified with inner tie rods included and the correct port and shaft dimensions for the listed Volvo fitments.
Key Features
- Hydraulic rack and pinion assembly
- Remanufactured steering gear for replacement service
- Inner tie rods included
- 4 mounting holes
- 2.75 total turns lock to lock
- Input shaft diameter: 0.704 in. / 17.879 mm
- Input shaft length: 2.438 in. / 61.913 mm
- Rack length: 43.125 in. / 1095.375 mm
- Pressure port thread size: 11 mm
- Return port thread size: 12 mm
Detailed Description
Maval 93313M is a remanufactured hydraulic rack and pinion assembly for Volvo steering systems that use a conventional hydraulic setup. It is listed for Fits 2005 Volvo V70, N/A and Fits 2005-2009 Volvo S60, N/A, both noted as applications without speed sensitive steering and with non-threaded push-in pressure and return ports. If you are replacing a worn steering rack on a Volvo S60 or Volvo V70, this part number provides the specified mounting, shaft, and port dimensions needed for the application.
This part cross-references 26-2532 and 8603198 for the same application.
What It Helps Address
- Steering play or looseness from a worn rack and pinion
- Hydraulic fluid leakage at the steering gear
- Rough or inconsistent steering effort
- Excessive steering wheel free play
- Replacement needs after internal rack wear
Installation Notes and Tips
Verify the vehicle is a non-speed-sensitive steering application before ordering. Confirm the pressure and return port style matches the listed non-threaded push-in configuration, and compare the mounting hole spacing, input shaft dimensions, and rack length to the original unit before installation. After replacement, the steering system should be properly bled and aligned according to factory service procedures.
Quality Assurance
This Maval remanufactured rack and pinion is built as a replacement steering gear for the listed Volvo applications and is identified by part number 93313M.
| Brand | Maval |
|---|---|
| Part Number | 93313M |
| Position | Remanufactured Rack and Pinion |
| Type | Hydraulic |
| Mounting Hole Quantity | 4 |
| Total Turns Lock To Lock | 2.75 |
| Inner Tie Rods Included | Yes |
| Distance Between Mounting Holes | 20.5 |
| Distance Between Mounting Holes | 520.7 |
| Input Shaft Diameter | 0.704 |
| Input Shaft Diameter | 17.879 |
| Input Shaft Length | 2.438 |
| Input Shaft Length | 61.913 |
| New or Remanufactured | Remanufactured |
| Pressure Port Thread Size | 11mm |
| Rack Length | 1095.375 |
| Rack Length | 43.125 |
| Return Port Thread Size | 12mm |
This part fits 18 vehicles. Search below:
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Volvo | S60 | 2.5T | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2009 | Volvo | S60 | T5 | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2008 | Volvo | S60 | T5 Inspiration | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2008 | Volvo | S60 | 2.5T | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2008 | Volvo | S60 | T5 | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2008 | Volvo | S60 | T5 Kinetic | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2007 | Volvo | S60 | T5 | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2007 | Volvo | S60 | T5 Inspiration | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2007 | Volvo | S60 | T5 Kinetic | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2007 | Volvo | S60 | 2.5T | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2006 | Volvo | S60 | 2.5T | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2006 | Volvo | S60 | T5 | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2006 | Volvo | S60 | T5 Sport | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2005 | Volvo | S60 | 2.5T | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2005 | Volvo | S60 | T5 | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2005 | Volvo | S60 | 2.4 | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2005 | Volvo | S60 | 2.5T AWD | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion | |
| 2005 | Volvo | V70 | FWD | N/A | (w/o Speed Sensitive Strg); Pressure and return ports are non-threaded push in.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
