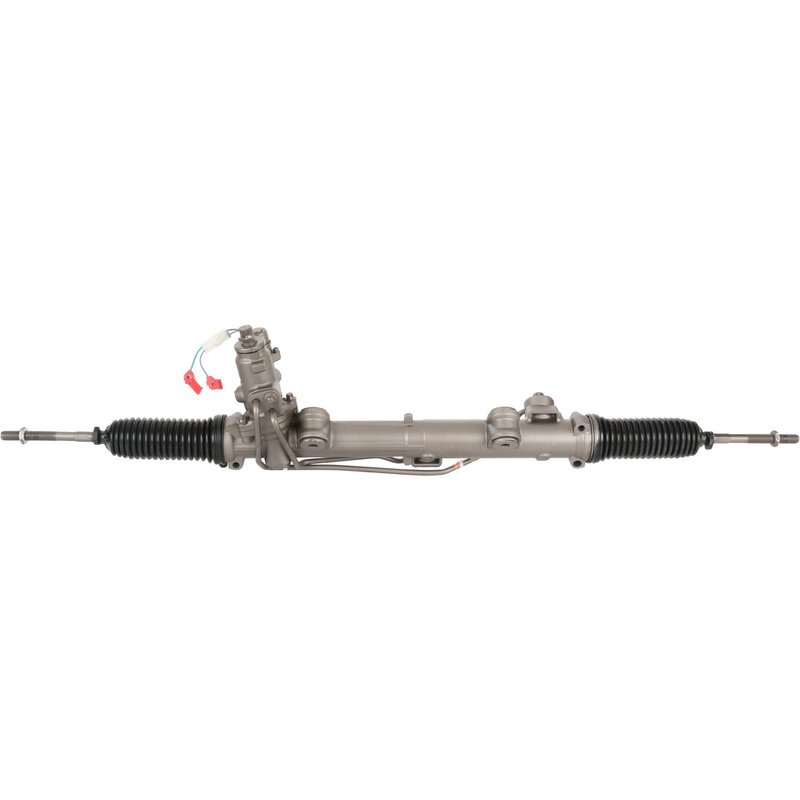

Maval 93316M Rack and Pinion Assembly
Maval Remanufactured Rack and Pinion for Mercedes-Benz CLK
The Maval 93316M remanufactured rack and pinion assembly is built for 2003-2004 Mercedes-Benz CLK320, CLK500, and CLK55 AMG models with Speed Sensitive Steering. It is a direct-fit steering gear replacement with inner tie rods included and an electronic solenoid for the correct steering response on equipped vehicles.
Key Features
- Remanufactured rack and pinion assembly from Maval
- Fits 2003-2004 Mercedes-Benz CLK320, CLK500, and CLK55 AMG with Speed Sensitive Steering
- Inner tie rods included
- Aluminum casting material
- 2 mounting holes with 10.44 in. / 265.13 mm mounting-hole spacing
- 2.75 total turns lock to lock
- O-ring hose port type with 0.436 in. port ID size
- Input shaft diameter: 0.7 in. / 17.78 mm
- Input shaft length: 1.06 in. / 27 mm
- Rack length: 44.38 in. / 1127.13 mm
- Thread length: 2.9 in. / 73.66 mm
Detailed Description
Maval 93316M is a remanufactured steering rack assembly for Mercedes-Benz CLK applications that use Speed Sensitive Steering. It is engineered for 2003-2004 Mercedes-Benz CLK320, CLK500, and CLK55 AMG models and includes an electronic solenoid to support the vehicle’s steering control system. The aluminum housing, O-ring hose ports, and OE-style dimensions help match the original steering gear layout during replacement. This part cross-references Cardone Reman 26-4005 for the same application.
The Maval remanufactured rack and pinion line focuses on steering gear replacement parts that match factory-style fitment and connection points. For shoppers searching for a 2003-2004 Mercedes-Benz CLK rack and pinion assembly, Mercedes-Benz CLK320 steering rack replacement, or CLK500/CLK55 AMG remanufactured steering gear, part number 93316M is the relevant application-specific option.
Common Problems This Part Can Address
- Excessive steering play or loose steering feel
- Fluid leakage at the rack and pinion assembly
- Uneven or inconsistent steering response
- Noise from a worn steering gear
- Failure of the original speed-sensitive steering rack
Installation Notes and Tips
Compatible With 2003-2004 Mercedes-Benz CLK320, CLK500, and CLK55 AMG, N/A, with Speed Sensitive Steering. The unit includes an electronic solenoid, so verify correct wire polarity and use the color-coded harness during installation. Do not cross the pressure and return ports, as incorrect routing can damage the upper pinion seal. Follow the installation instructions on warning labels 641280 and 640100 before final assembly. Confirm all mounting dimensions, hose port type, and input shaft measurements against the original unit before installation.
Quality Assurance
This remanufactured steering rack is built to application-specific dimensions for Mercedes-Benz CLK models and is intended to replace the original rack and pinion assembly with the correct steering-system configuration.
| Brand | Maval |
|---|---|
| Part Number | 93316M |
| Position | Remanufactured Rack and Pinion |
| Mounting Hole Quantity | 2 |
| Total Turns Lock To Lock | 2.75 |
| Inner Tie Rods Included | Yes |
| Casting Material | Aluminum |
| Distance Between Mounting Holes | 10.44 |
| Distance Between Mounting Holes | 265.13 |
| Hose Port Type | O-ring |
| Input Shaft Diameter | 0.7 |
| Input Shaft Diameter | 17.78 |
| Input Shaft Length | 1.06 |
| Input Shaft Length | 27 |
| Port ID Size | 0.436 |
| Rack Length | 1127.13 |
| Rack Length | 44.38 |
| Return Port ID Size | 0.436 |
| Thread Length | 2.9 |
| Thread Length | 73.66 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Mercedes-Benz | CLK320 | N/A | Note: For all models with Speed Sensitive Steering; Unit comes with an electronic solenoid, ensure correct polarity of wires, use color-coded harness, avoid crossing pressure/return ports to prevent upper pinion seal damage, follow installation instructions on warning labels 641280 and 640100.; Remanufactured Rack and Pinion | |
| 2004 | Mercedes-Benz | CLK500 | N/A | Note: For all models with Speed Sensitive Steering; Unit comes with an electronic solenoid, ensure correct polarity of wires, use color-coded harness, avoid crossing pressure/return ports to prevent upper pinion seal damage, follow installation instructions on warning labels 641280 and 640100.; Remanufactured Rack and Pinion | |
| 2004 | Mercedes-Benz | CLK55 AMG | N/A | Note: For all models with Speed Sensitive Steering; Unit comes with an electronic solenoid, ensure correct polarity of wires, use color-coded harness, avoid crossing pressure/return ports to prevent upper pinion seal damage, follow installation instructions on warning labels 641280 and 640100.; Remanufactured Rack and Pinion | |
| 2003 | Mercedes-Benz | CLK320 | Coupe | N/A | Note: For all models with Speed Sensitive Steering; Unit comes with an electronic solenoid, ensure correct polarity of wires, use color-coded harness, avoid crossing pressure/return ports to prevent upper pinion seal damage, follow installation instructions on warning labels 641280 and 640100.; Remanufactured Rack and Pinion |
| 2003 | Mercedes-Benz | CLK500 | N/A | Note: For all models with Speed Sensitive Steering; Unit comes with an electronic solenoid, ensure correct polarity of wires, use color-coded harness, avoid crossing pressure/return ports to prevent upper pinion seal damage, follow installation instructions on warning labels 641280 and 640100.; Remanufactured Rack and Pinion | |
| 2003 | Mercedes-Benz | CLK55 AMG | N/A | Note: For all models with Speed Sensitive Steering; Unit comes with an electronic solenoid, ensure correct polarity of wires, use color-coded harness, avoid crossing pressure/return ports to prevent upper pinion seal damage, follow installation instructions on warning labels 641280 and 640100.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
