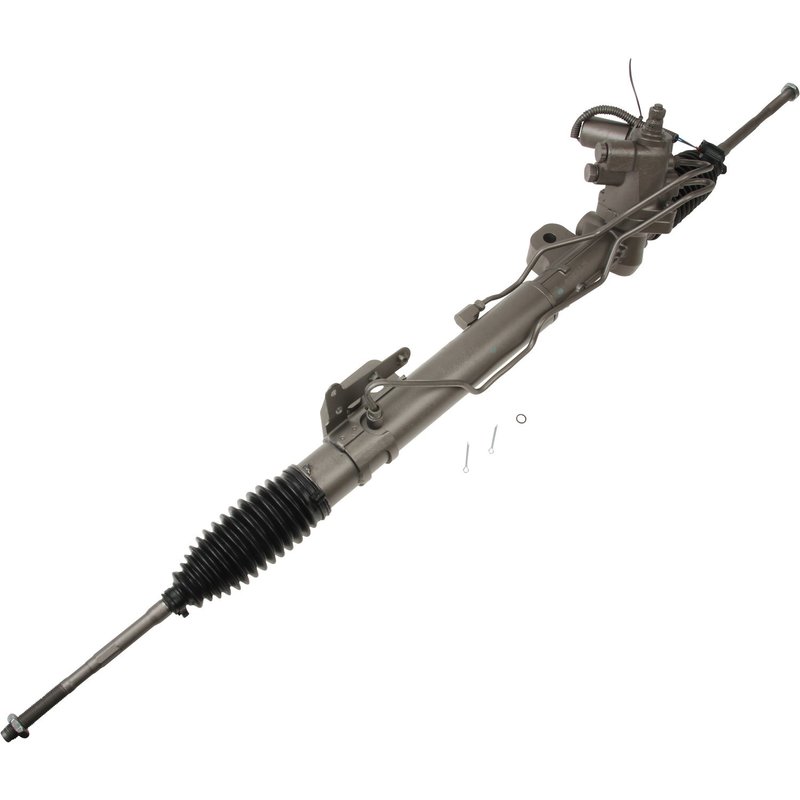

Maval 93323M Rack and Pinion Assembly
Overview of Maval Remanufactured Rack and Pinion for Nissan Murano
The Maval Remanufactured Rack and Pinion Assembly (Part Number 93323M) is designed specifically for Nissan Murano models. This hydraulic rack and pinion unit offers precise steering control and includes inner tie rods for a complete replacement solution.
- Hydraulic type rack and pinion assembly
- Includes inner tie rods for convenience
- Three mounting holes with precise spacing (11.5, 292.1, and 294.5 mm)
- Steering input shaft with 36 splines and 0.68 inch diameter
- Total turns lock to lock: 3.06 for responsive steering
- Pressure port thread size M14x1.50 and return port thread size M16x1.50
- Rack length approximately 1143.5 mm (45 inches)
Details on the Remanufactured Rack and Pinion Product Line
The Maval Remanufactured Rack and Pinion product line focuses on restoring steering components to meet original equipment specifications. This remanufactured assembly ensures reliable hydraulic steering performance while including essential parts such as inner tie rods. The 93323M part maintains critical dimensions and thread sizes to match Nissan Murano factory standards.
Technical Description and Specifications
This remanufactured rack and pinion assembly features a hydraulic design optimized for Nissan Murano vehicles. It includes three mounting holes spaced at 11.5 mm, 292.1 mm, and 294.5 mm to ensure proper fitment. The steering input shaft has 36 splines with a diameter of 0.68 inches and a length of 1.1 inches, providing compatibility with the vehicle’s steering column. The total turns lock to lock is 3.06, offering precise steering response. Inner tie rods are included with a length of 10.1 inches (258.5 mm), allowing for a complete steering system replacement. Thread sizes for pressure and return ports are M14x1.50 and M16x1.50 respectively, matching OEM hydraulic connections.
Common Applications and Problem Resolution
- Replacement for worn or leaking hydraulic rack and pinion units on Nissan Murano
- Fixes excessive steering play or looseness
- Resolves steering noise or binding issues
- Addresses fluid leaks from pressure or return ports
- Restores proper steering response and alignment
Installation Notes and Tips
Ensure the vehicle is securely lifted and the steering system is depressurized before removal. Verify the mounting hole spacing and spline count match the existing assembly. Replace all related seals and inspect tie rods during installation. Bleed the hydraulic steering system thoroughly after installation to prevent air pockets and ensure smooth operation.
Quality Assurance and Warranty
This Maval Remanufactured Rack and Pinion Assembly undergoes rigorous testing to meet OEM standards. The remanufacturing process includes inspection, cleaning, and replacement of worn components to ensure durability and performance. Warranty details are provided by the manufacturer and typically cover defects in materials and workmanship.
This part fits 10 vehicles. Search below:
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2014 | Nissan | Murano | CrossCabriolet | N/A | If after replacement of steering unit there are still issues with the power assist, inspect condition of the power steering pump. This pump has two internal valves that, if too much debris is in the system, can score the internal finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak and restrict assist to the steering unit.; Remanufactured Rack and Pinion | |
| 2014 | Nissan | Murano | LE | AWD | N/A | If after replacement of steering unit there are still issues with the power assist, inspect condition of the power steering pump. This pump has two internal valves that, if too much debris is in the system, can score the internal finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak and restrict assist to the steering unit.; Remanufactured Rack and Pinion |
| 2013 | Nissan | Murano | CrossCabriolet | N/A | If after replacement of steering unit there are still issues with the power assist, inspect condition of the power steering pump. This pump has two internal valves that, if too much debris is in the system, can score the internal finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak and restrict assist to the steering unit.; Remanufactured Rack and Pinion | |
| 2013 | Nissan | Murano | LE | AWD | N/A | If after replacement of steering unit there are still issues with the power assist, inspect condition of the power steering pump. This pump has two internal valves that, if too much debris is in the system, can score the internal finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak and restrict assist to the steering unit.; Remanufactured Rack and Pinion |
| 2012 | Nissan | Murano | LE | AWD | N/A | If after replacement of steering unit there are still issues with the power assist, inspect condition of the power steering pump. This pump has two internal valves that, if too much debris is in the system, can score the internal finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak and restrict assist to the steering unit.; Remanufactured Rack and Pinion |
| 2012 | Nissan | Murano | CrossCabriolet | N/A | If after replacement of steering unit there are still issues with the power assist, inspect condition of the power steering pump. This pump has two internal valves that, if too much debris is in the system, can score the internal finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak and restrict assist to the steering unit.; Remanufactured Rack and Pinion | |
| 2011 | Nissan | Murano | CrossCabriolet | N/A | If after replacement of steering unit there are still issues with the power assist, inspect condition of the power steering pump. This pump has two internal valves that, if too much debris is in the system, can score the internal finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak and restrict assist to the steering unit.; Remanufactured Rack and Pinion | |
| 2011 | Nissan | Murano | LE | AWD | N/A | If after replacement of steering unit there are still issues with the power assist, inspect condition of the power steering pump. This pump has two internal valves that, if too much debris is in the system, can score the internal finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak and restrict assist to the steering unit.; Remanufactured Rack and Pinion |
| 2010 | Nissan | Murano | LE | AWD | N/A | If after replacement of steering unit there are still issues with the power assist, inspect condition of the power steering pump. This pump has two internal valves that, if too much debris is in the system, can score the internal finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak and restrict assist to the steering unit.; Remanufactured Rack and Pinion |
| 2009 | Nissan | Murano | LE | AWD | N/A | If after replacement of steering unit there are still issues with the power assist, inspect condition of the power steering pump. This pump has two internal valves that, if too much debris is in the system, can score the internal finish of the housing itself-the material in the housing is softer that the material used in the valves. If the valves damage the housing the pump will leak and restrict assist to the steering unit.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
