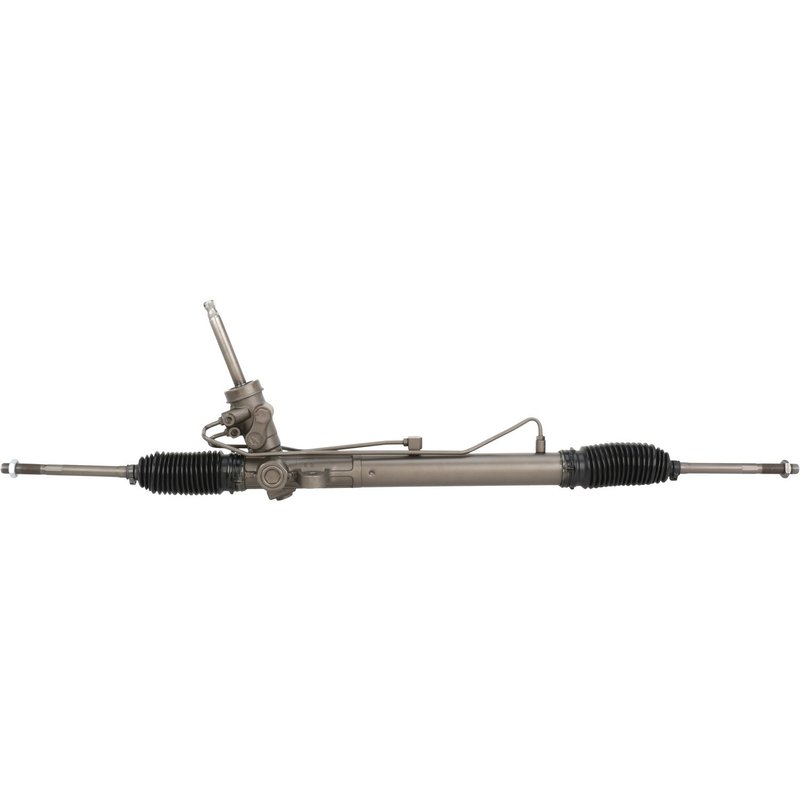

Maval 93326M Rack and Pinion Assembly
Remanufactured Steering Rack for Kia Soul
This Maval remanufactured rack and pinion assembly is built for 2010-2011 Kia Soul applications and is identified by part number 93326M. It is a direct-fit steering gear assembly with tie rod ends included and O-ring hose ports for a clean OE-style connection.
Key Features
- Fits 2010-2011 Kia Soul, N/A
- Remanufactured rack and pinion assembly from Maval
- Part number 93326M for accurate ordering and replacement
- Steel and aluminum casting materials for OE-style construction
- 2.81 total turns lock to lock
- Input shaft diameter: 0.75 in. (19.05 mm)
- Pressure port thread size: M14 x 1.5
- Return port thread size: M16 x 1.5
- Rack length: 44.25 in. (1123.95 mm)
- Tie rod ends included
Product Details
The Maval Remanufactured Rack and Pinion line focuses on steering gear replacement built to match the original vehicle layout and connection points. This 93326M assembly uses a 2-hole mounting design, O-ring hose ports, and the specified input shaft and port thread sizes to support a proper steering system replacement on the Kia Soul. This part cross-references Cardone Reman 26-2448 for the same application.
Common Steering Issues This Part Can Address
- Excessive steering play or looseness
- Fluid leakage at the rack or hose connections
- Rough, inconsistent steering response
- Internal wear in the steering gear assembly
- Noise during steering input
Installation Notes
Verify mounting hole spacing, input shaft dimensions, and pressure/return port thread sizes before installation. After replacement, the steering system should be inspected, filled, and bled according to factory service procedures, and the front-end alignment should be checked. Confirm vehicle application details for 2010-2011 Kia Soul, N/A before ordering 93326M.
Quality Assurance
Maval remanufactured steering components are rebuilt for direct replacement use and are specified here with OE-style dimensions and connection types for the listed Kia Soul applications. Confirm all fitment and steering gear measurements against the vehicle before installation.
| Brand | Maval |
|---|---|
| Part Number | 93326M |
| Position | Remanufactured Rack and Pinion |
| Mounting Hole Quantity | 2 |
| Total Turns Lock To Lock | 2.81 |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes | 3.69 |
| Distance Between Mounting Holes | 93.68 |
| Hose Port Type | O-ring |
| Input Shaft Diameter | 0.75 |
| Input Shaft Diameter | 19.05 |
| Input Shaft Length | 125.27 |
| Input Shaft Length | 4.93 |
| Pressure Port Thread Size | M14 x 1.5 |
| Rack Length | 1123.95 |
| Rack Length | 44.25 |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 2.1 |
| Thread Length | 53.24 |
| Tie Rod Ends Included | Yes |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2011 | Kia | Soul | N/A | Fits all models.; Remanufactured Rack and Pinion |
| 2010 | Kia | Soul | N/A | Fits all models.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
