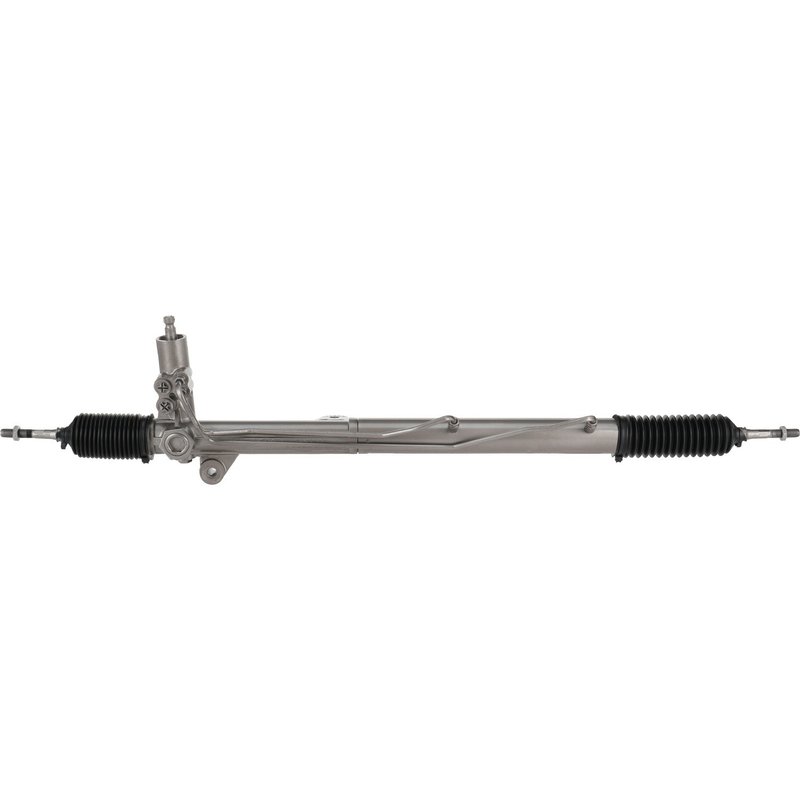

Maval 93331M Rack and Pinion Assembly
Maval 93331M Rack and Pinion for Kia Sorento
The Maval 93331M remanufactured rack and pinion assembly is built for 2007-2009 Kia Sorento models. It is a steering gear replacement with steel and aluminum casting materials, O-ring hose ports, and tie rod ends included for a direct-service repair.
Key Features
- Remanufactured rack and pinion assembly from Maval
- Fits 2007-2009 Kia Sorento, all models
- Part number 93331M for ordering and cross-reference
- 2 mounting holes with 168.4 mm (6.63 in.) spacing
- 3.69 total turns lock to lock
- Input shaft diameter: 19.96 mm (0.79 in.)
- Pressure and return ports use M16 x 1.5 thread size
- Rack length: 1187.45 mm (46.75 in.)
- Tie rod ends included
Product Details
Maval 93331M is a remanufactured steering rack and pinion assembly for Kia Sorento applications from 2007 through 2009. The unit uses O-ring hose ports, a steel and aluminum casting, and a 2-hole mounting layout with 168.4 mm between mounting holes. With 3.69 turns lock to lock and M16 x 1.5 pressure and return ports, this rack is specified for the steering system configuration used on the listed Sorento models. This part cross-references Cardone Reman 26-2437 for the same application.
Common Repair Uses
- Restores steering response when the original rack has internal wear
- Addresses fluid leakage at the rack housing or port connections
- Replaces a steering gear with excessive play or binding
- Corrects steering noise caused by worn rack components
- Supports repair of damaged tie rod end connections
Installation Notes and Tips
Compatible With 2007-2009 Kia Sorento, all models. The pressure and return ports are the same size, so the pressure line must be installed in the top port. If the lines are crossed, the upper pinion seal can fail from excessive pressure. Refer to warning label 640100 during installation. Verify port orientation, mounting dimensions, and steering shaft fitment before final assembly.
Quality Assurance
This Maval remanufactured rack and pinion assembly is built as a service replacement for the listed Kia Sorento applications and is identified by part number 93331M. It is intended to match the steering system specifications shown for the vehicle fitment data.
| Brand | Maval |
| Part Number | 93331M |
| Position | Remanufactured Rack and Pinion |
| Mounting Hole Quantity | 2 |
| Total Turns Lock To Lock | 3.69 |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes | 168.4 |
| Distance Between Mounting Holes | 6.63 |
| Hose Port Type | O-ring |
| Input Shaft Diameter | 0.79 |
| Input Shaft Diameter | 19.96 |
| Input Shaft Length | 1.38 |
| Input Shaft Length | 34.93 |
| Pressure Port Thread Size | M16 x 1.5 |
| Rack Length | 1187.45 |
| Rack Length | 46.75 |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 1.73 |
| Thread Length | 44.02 |
| Tie Rod Ends Included | Yes |
This part fits 12 vehicles. Search below:
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2009 | Kia | Sorento | LX | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2009 | Kia | Sorento | LX Luxury | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2009 | Kia | Sorento | EX | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2009 | Kia | Sorento | L | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2009 | Kia | Sorento | Base | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2008 | Kia | Sorento | Base | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2008 | Kia | Sorento | EX | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2008 | Kia | Sorento | Luxury | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2008 | Kia | Sorento | LX | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2007 | Kia | Sorento | Base | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2007 | Kia | Sorento | LX | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2007 | Kia | Sorento | EX | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
