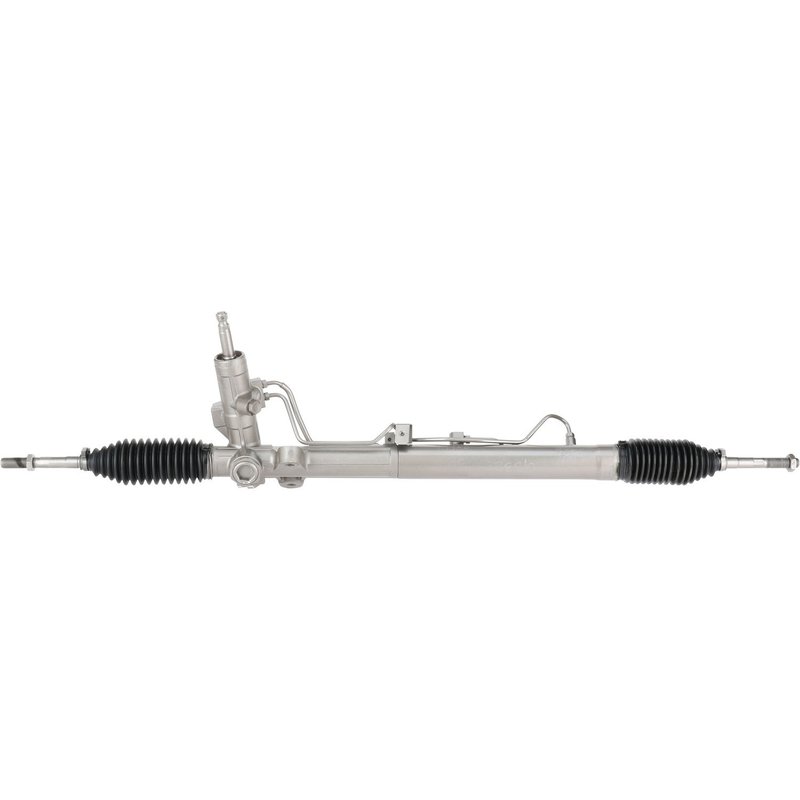

Maval 93388M Rack and Pinion Assembly
Overview of Maval Remanufactured Rack and Pinion 93388M
The Maval Remanufactured Rack and Pinion Assembly, part number 93388M, is designed specifically for Kia Optima and Kia Rondo models. This steering gear component ensures precise control and reliable performance by utilizing quality materials and exact fitment specifications.
- Compatible with Kia Optima and Kia Rondo
- Mounting hole quantity: 2 for secure installation
- Total turns lock to lock: 2.88 for responsive steering
- Casting material: durable steel and aluminum construction
- Input shaft diameter: 0.75 inches (19.05 mm)
- Input shaft length: 2.5 inches (63.5 mm)
- Pressure and return port thread size: M14 x 1.5 with O-ring hose port type
- Rack length: 44.13 inches (1120.78 mm)
- Tie rod ends included for complete assembly
Details on the Remanufactured Rack and Pinion Product Line
The Maval Remanufactured Rack and Pinion line focuses on restoring steering assemblies to meet original equipment specifications. This process involves refurbishing key components such as the rack, pinion, and input shaft, ensuring reliable operation and longevity. The 93388M model benefits from this remanufacturing approach, providing a cost-effective alternative to new parts without compromising quality.
Technical Description and Specifications
This rack and pinion assembly features a combination of steel and aluminum casting materials, balancing strength and weight. The assembly includes two mounting holes spaced precisely at 3.63 inches (92.08 mm) apart, ensuring proper fitment in the steering system. The input shaft diameter measures 0.75 inches (19.05 mm) with a length of 2.5 inches (63.5 mm), designed to match the steering column interface. Both pressure and return ports use M14 x 1.5 thread sizes with O-ring type hose ports to maintain hydraulic integrity. The total rack length is 44.13 inches (1120.78 mm), providing the correct range of motion for steering input. Included tie rod ends complete the assembly, ready for installation.
Common Applications and Problem Resolution
- Restores precise steering response in Kia Optima and Rondo vehicles
- Replaces worn or leaking rack and pinion assemblies
- Eliminates excessive play or looseness in steering
- Addresses steering noise or stiffness issues
- Improves vehicle handling and safety
Installation Notes and Tips
Ensure compatibility with your Kia Optima or Rondo by verifying part number 93388M before installation. Proper alignment of the mounting holes and secure connection of the input shaft are critical for optimal steering performance. Use appropriate torque specifications for mounting bolts and check hydraulic connections for leaks. Bleed the power steering system after installation to remove air and restore smooth operation.
Quality Assurance and Warranty
The Maval Remanufactured Rack and Pinion 93388M undergoes thorough inspection and testing to meet OEM standards. The use of steel and aluminum materials ensures durability and resistance to wear. Tie rod ends included with the assembly are also inspected for quality. Warranty details should be confirmed with the supplier, as coverage may vary.
| Brand | Maval |
| Part Number | 93388M |
| Position | Remanufactured Rack and Pinion |
| Mounting Hole Quantity | 2 |
| Total Turns Lock To Lock | 2.88 |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes | 3.63 |
| Distance Between Mounting Holes | 92.08 |
| Hose Port Type | O-ring |
| Input Shaft Diameter | 0.75 |
| Input Shaft Diameter | 19.05 |
| Input Shaft Length | 2.5 |
| Input Shaft Length | 63.5 |
| Pressure Port Thread Size | M14 x 1.5 |
| Rack Length | 1120.78 |
| Rack Length | 44.13 |
| Return Port Thread Size | M14 x 1.5 |
| Thread Length | 1.82 |
| Thread Length | 46.23 |
| Tie Rod Ends Included | Yes |
This part fits 21 vehicles. Search below:
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Kia | Rondo | LX | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2011 | Kia | Rondo | EX | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2011 | Kia | Rondo | EX Premium | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2010 | Kia | Optima | EX | 2.4L | L4 | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2010 | Kia | Optima | LX | 2.4L | L4 | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2010 | Kia | Optima | SX | 2.4L | L4 | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2010 | Kia | Rondo | EX | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2010 | Kia | Rondo | LX | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2009 | Kia | Optima | EX | 2.4L | L4 | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2009 | Kia | Optima | LX | 2.4L | L4 | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2009 | Kia | Rondo | EX | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2009 | Kia | Rondo | LX | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2008 | Kia | Optima | LX | 2.4L | L4 | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2008 | Kia | Optima | EX | 2.4L | L4 | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2008 | Kia | Rondo | LX | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2008 | Kia | Rondo | EX | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2008 | Kia | Rondo | EX Premium | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2007 | Kia | Optima | EX | 2.4L | L4 | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2007 | Kia | Optima | LX | 2.4L | L4 | N/A | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2007 | Kia | Rondo | EX | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2007 | Kia | Rondo | LX | 2.4L | L4 | N/A | (All Models w/16 in. Tires ); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
