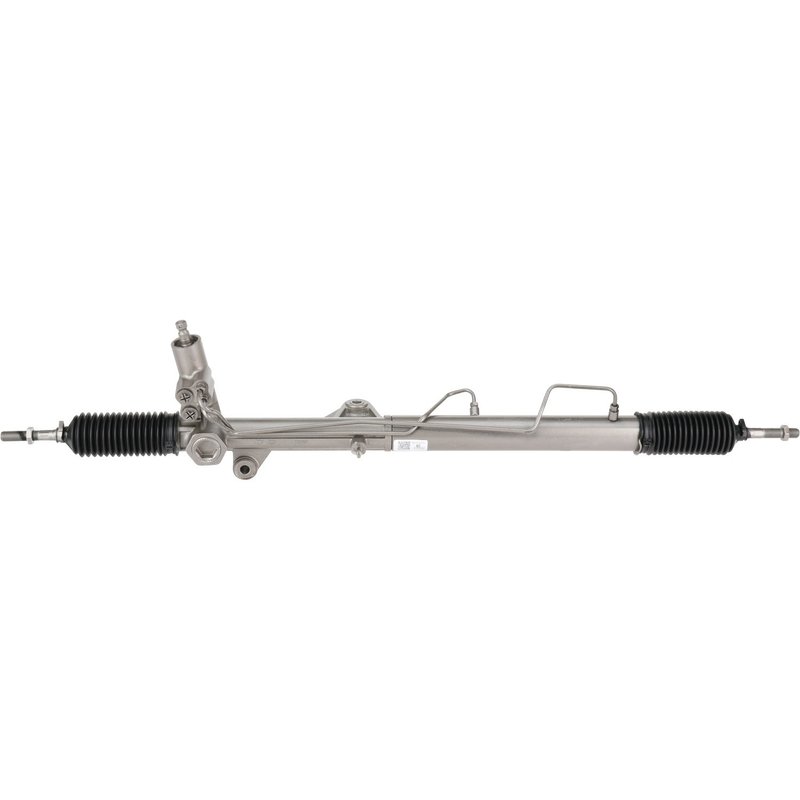

Maval 93393M Rack and Pinion Assembly
| Brand | Maval 93393M |
|---|---|
| Mounting Hole Quantity | 2 |
| Total Turns Lock To Lock | 3.5 |
| Casting Material | Steel; aluminum |
| Distance Between Mounting Holes | 174.63 |
| Distance Between Mounting Holes | 6.88 |
| Hose Port Type | O-ring |
| Input Shaft Diameter | 0.75 |
| Input Shaft Diameter | 19.05 |
| Input Shaft Length | 1.25 |
| Input Shaft Length | 31.75 |
| Pressure Port Thread Size | M16 x 1.5 |
| Rack Length | 1187.45 |
| Rack Length | 46.75 |
| Return Port Thread Size | M16 x 1.5 |
| Thread Length | 2.06 |
| Thread Length | 52.22 |
| Tie Rod Ends Included | Yes |
| Product line | Remanufactured Rack and Pinion |
| Fits | Kia · 3 vehicles |
Remanufactured rack and pinion. Restored for dependable steering performance.
Steel and aluminum construction. Combines strength with reduced weight.
Tie rod ends included. Ready for a more complete installation.
Cross-references Cardone Reman 26-2444 and 57700-2J200 for the same application. See all 2.
Maval Remanufactured Rack and Pinion for Kia Borrego
The Maval 93393M remanufactured rack and pinion assembly is built for 2009-2011 Kia Borrego applications with direct-fit steering geometry. It features a steel and aluminum casting, O-ring hose ports, and tie rod ends included for a complete steering gear replacement.
Key Features
- Remanufactured rack and pinion assembly for steering system service
- Fits 2009-2011 Kia Borrego, all models
- 3.5 total turns lock to lock for factory-style steering response
- Steel and aluminum casting for strength and weight balance
- O-ring pressure and return ports with M16 x 1.5 thread size
- Input shaft diameter: 0.75 in. (19.05 mm)
- Rack length: 46.75 in. (1187.45 mm)
- Tie rod ends included
Detailed Description
Maval 93393M is a remanufactured rack and pinion assembly for the Kia Borrego steering system. It is engineered with two mounting holes, a 6.88 in. (174.63 mm) mounting-hole spacing, and a 1.25 in. (31.75 mm) input shaft length to match the original steering layout. The unit uses O-ring hose ports, M16 x 1.5 pressure and return threads, and a 2.06 in. (52.22 mm) thread length for proper line connection. This part cross-references Cardone Reman 26-2444 for the same application.
The Maval remanufactured rack and pinion line focuses on restoring steering function with OE-style fitment and measured specifications that matter during replacement. Part number 93393M is a direct replacement choice for Kia Borrego owners addressing steering wear, leakage, or excessive play.
What This Part Helps Solve
- Steering fluid leaks from worn rack seals or port connections
- Excessive steering play or loose steering feel
- Binding, rough steering, or inconsistent wheel response
- Noise from internal rack wear during turning
- Replacement needs after steering gear damage or corrosion
Installation Notes and Tips
Compatible With 2009-2011 Kia Borrego, all models. The pressure and return ports are the same size on this application, so line placement matters: install the pressure line in the top port to avoid seal damage. If the lines are crossed, the upper pinion seal can fail under high pressure. Refer to warning label 640100 during installation. Verify mounting-hole spacing, input shaft dimensions, and port thread size before installation. Part number 93393M should be matched to the vehicle’s steering configuration before removal of the original unit.
Quality Assurance
Maval remanufactured steering components are rebuilt to restore proper rack and pinion operation for the specified application. This 93393M assembly is listed for confirmed Kia Borrego fitment and is supported by the published dimensional specifications for accurate replacement selection.
| Year | Make | Model | Notes |
|---|---|---|---|
| 2011 | Kia | Borrego | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2010 | Kia | Borrego | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
| 2009 | Kia | Borrego | (All Models); The pressure and return ports are the same size. If lines are crossed, the upper pinion seal will "blow" due to high pressure system. Install pressure line in top port. Refer to warning label 640100.; Remanufactured Rack and Pinion |
