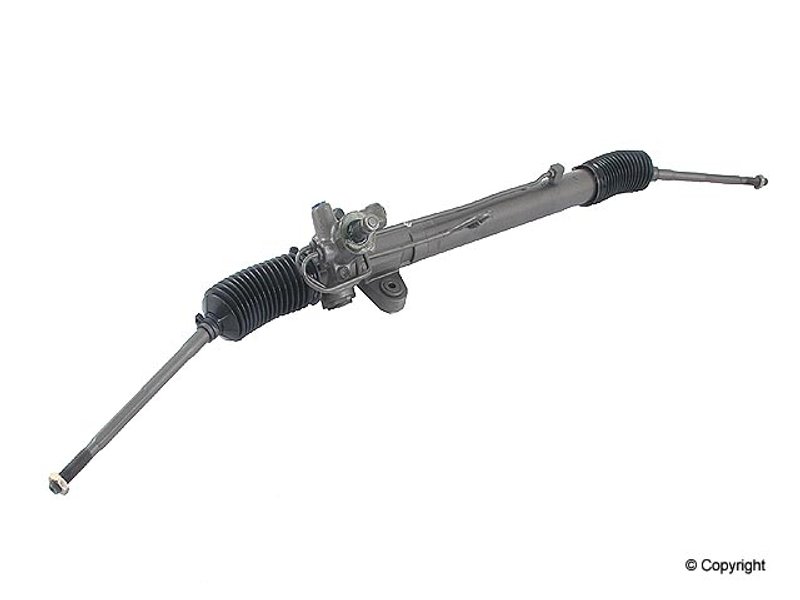

Maval 9393M Rack and Pinion Assembly

Overview of Maval Remanufactured Rack and Pinion 9393M

The Maval Remanufactured Rack and Pinion Assembly 9393M is designed specifically for Honda Odyssey models. This steering gear component ensures precise control and reliable performance by incorporating durable materials and essential features tailored to your vehicle's steering system.

• Compatible with Honda Odyssey steering systems
• Includes inner tie rods for complete assembly
• Constructed with steel and aluminum casting materials
• Two mounting holes with a 103.2 mm (4.06 in) spacing
• Input shaft diameter of 0.75 in (18.92 mm) and length of 1.81 in (46.05 mm)
• Pressure port thread size M14 x 1.5 and return port thread size M16 x 1.5
• Total turns lock to lock: 3.44 for responsive steering
• Rack length of 1347.8 mm (53.06 in) for precise fitment

Details on the Remanufactured Rack and Pinion Product Line

The Maval Remanufactured Rack and Pinion line focuses on restoring steering assemblies to meet original equipment specifications. This product line offers a cost-effective alternative to new parts by reconditioning key components such as the rack, pinion, and inner tie rods. The 9393M model benefits from this process, ensuring reliable performance and compatibility with Honda Odyssey vehicles while maintaining structural integrity through the use of steel and aluminum castings.

Technical Description and Features

This rack and pinion assembly features a robust construction combining steel and aluminum casting materials to balance strength and weight. The assembly includes two mounting holes spaced 103.2 mm apart, ensuring secure installation. The input shaft measures 0.75 inches in diameter and 1.81 inches in length, designed to match the steering column specifications of the Honda Odyssey. Thread sizes for pressure and return ports are M14 x 1.5 and M16 x 1.5 respectively, compatible with standard hydraulic hose fittings. The total turns lock to lock is 3.44, providing responsive steering feedback and control. Inner tie rods are included, offering a complete steering solution in one assembly.

Common Applications and Problem Resolution

• Restores steering precision and responsiveness in Honda Odyssey vehicles
• Replaces worn or damaged rack and pinion assemblies causing steering play
• Addresses fluid leaks from pressure or return ports
• Eliminates uneven or stiff steering due to internal component wear
• Corrects alignment issues related to faulty inner tie rods

Installation Notes and Tips

Ensure compatibility with your specific Honda Odyssey model year before installation. Verify mounting hole alignment and torque specifications during assembly. Use appropriate thread sealants on pressure and return port fittings to prevent leaks. It is recommended to perform a wheel alignment after installation to maintain proper steering geometry. Inner tie rods included in this assembly simplify the replacement process by reducing the need for additional parts.

Quality Assurance and Warranty

The Maval Remanufactured Rack and Pinion 9393M undergoes thorough inspection and testing to meet OEM standards. The use of durable steel and aluminum materials supports long-term reliability. While specific warranty details are not provided here, remanufactured parts typically come with limited warranties covering defects in workmanship and materials. Consult the product documentation or supplier for exact warranty terms.
