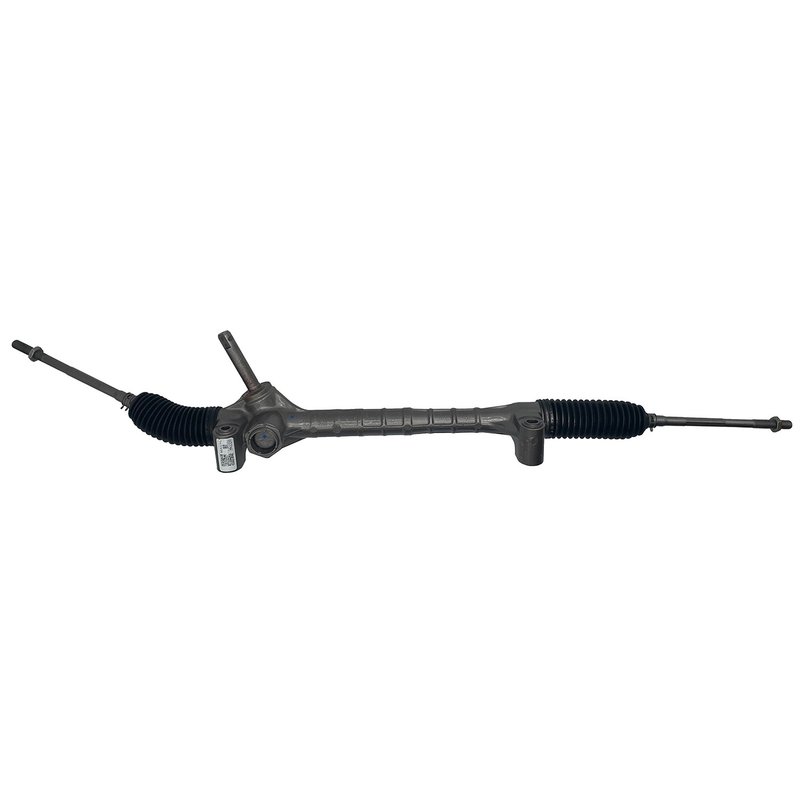

Maval 94335M Rack and Pinion Assembly
| Brand | Maval 94335M |
|---|---|
| Type | Manual |
| Mounting Hole Quantity | 2 |
| Total Turns Lock To Lock | 3.313 |
| Casting Material | Aluminum |
| Distance Between Mounting Holes | 17.125 |
| Distance Between Mounting Holes | 434.98 |
| Input Shaft Diameter | 0.758 |
| Input Shaft Diameter | 19.25 |
| Input Shaft Length | 3.875 |
| Input Shaft Length | 98.43 |
| Rack Length | 1212.85 |
| Rack Length | 47.75 |
| Thread Length | 2.195 |
| Thread Length | 55.75 |
| Tie Rod Ends Included | Yes |
| Product line | Remanufactured Rack and Pinion |
| Fits | Chevrolet · 12 vehicles |
Remanufactured assembly. Built for steering replacement service in the listed application.
Aluminum housing. Lightweight casting material used for the rack body.
Tie rod ends included. Provides a more complete steering assembly for service work.
Cross-references 23-1008 and 15140342 for the same application. See all 2.
Manual rack and pinion replacement
This Maval remanufactured rack and pinion assembly is built for steering systems that require a manual rack configuration. It is a fitment-based replacement for Chevrolet HHR applications and is identified by part number 94335M.
Key features
- Remanufactured rack and pinion assembly for steering service.
- Manual type construction for the specified application.
- Aluminum casting material for the housing.
- Tie rod ends included for a more complete steering assembly.
- 3.313 total turns lock to lock for steering response characteristics.
- Part number 94335M for ordering and catalog matching.
Fitment details
Compatible with Chevrolet HHR applications listed below. Fits 2008-2011 Chevrolet HHR, N/A, with Sport Suspension FE3 and catalog notes for remanufactured manual rack and pinion use in an electric power steering system. Fits 2006-2007 Chevrolet HHR, N/A, with catalog notes for remanufactured manual rack and pinion use in an electric power steering system. This part cross-references 23-1008 and 15140342 for the same application.
What it is used for
- Restoring steering rack function when the original assembly is worn or damaged.
- Addressing steering play, binding, or inconsistent steering feel.
- Replacing a leaking or mechanically compromised rack housing.
- Correcting fitment issues on Chevrolet HHR steering service jobs.
Installation notes and tips
Verify the manual rack configuration, mounting hole spacing, input shaft dimensions, and rack length before installation. Confirm the vehicle notes for Sport Suspension FE3 on 2008-2011 Chevrolet HHR applications and match the catalog notes for electric power steering system use. Part number 94335M should be checked against the existing unit and vehicle build details before final installation.
Quality assurance
Maval remanufactured steering components are processed as rebuilt service parts for direct replacement use in the listed applications. Confirm all fitment details against the vehicle and existing steering setup before installation.
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2011 | Chevrolet | HHR | LS | (All Models); (w/Sport Suspension FE3); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | HHR | LS Panel | (All Models); (w/Sport Suspension FE3); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2011 | Chevrolet | HHR | LT | (All Models); (w/Sport Suspension FE3); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | HHR | LT | (All Models); (w/Sport Suspension FE3); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2010 | Chevrolet | HHR | LT Panel | (All Models); (w/Sport Suspension FE3); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | HHR | LT | (All Models); (w/Sport Suspension FE3); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2009 | Chevrolet | HHR | LT Panel | (All Models); (w/Sport Suspension FE3); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2008 | Chevrolet | HHR | LT | (All Models); (w/Sport Suspension FE3); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2008 | Chevrolet | HHR | LT Panel | (All Models); (w/Sport Suspension FE3); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2007 | Chevrolet | HHR | LT | (All Models); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2007 | Chevrolet | HHR | LT Panel | (All Models); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
| 2006 | Chevrolet | HHR | LT | (All Models); Catalog note: Remanufactured Manual R&P for Electric Power Steering System; 3.25 Pinion turns lock to lock. Remanufactured Manual R&P unit for Electric Power Steering System.; Remanufactured Rack and Pinion |
